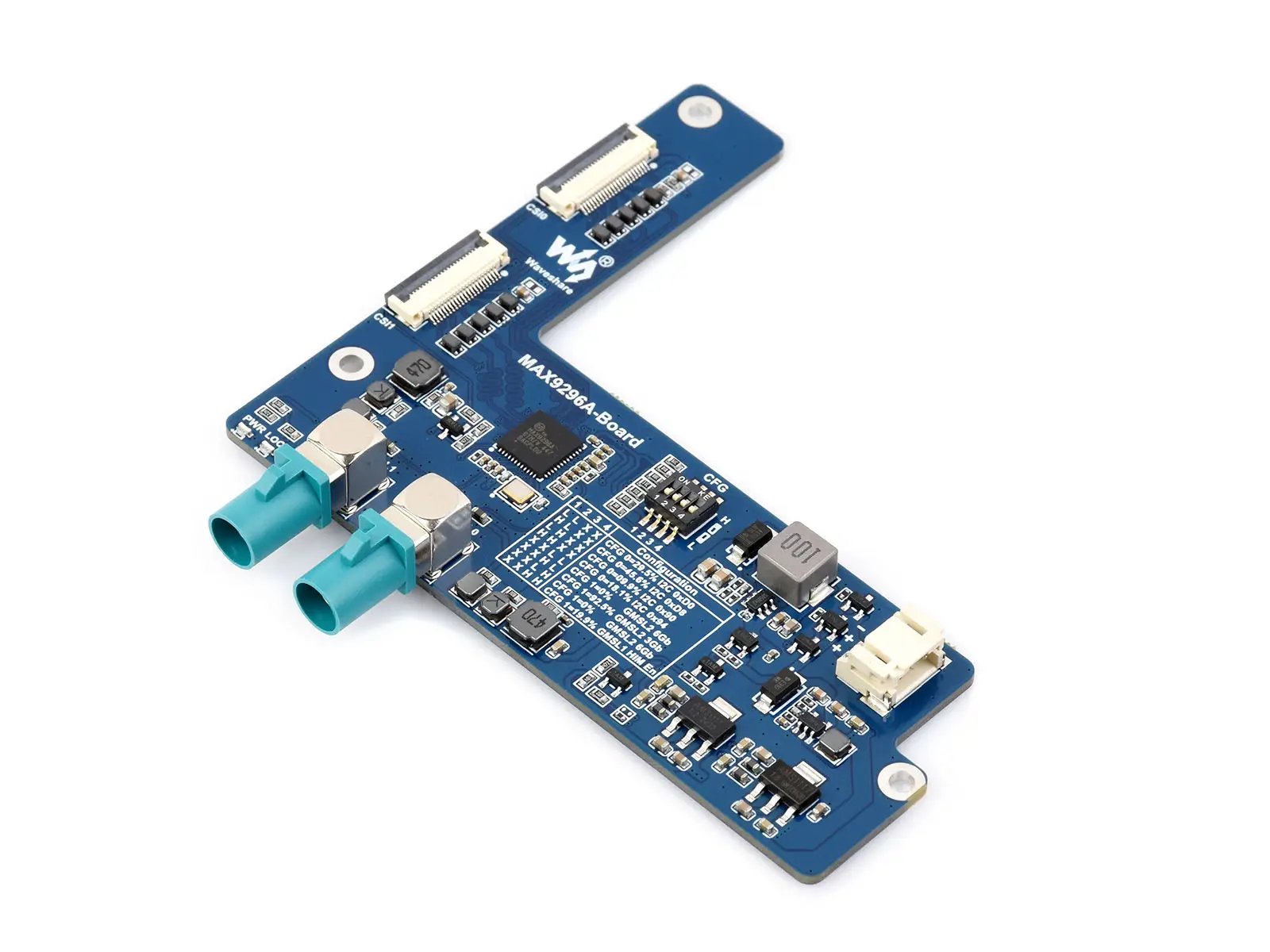

MAX9296-GMSL-Deser-Module
The MAX9296-GMSL-Deser-Module is a GMSL camera expansion board based on the MAX9296A deserializer chip. It supports connecting two GMSL cameras simultaneously to mainboards such as the Raspberry Pi 5 or Jetson Orin Nano/NX, and is software-configurable to be compatible with both GMSL1 and GMSL2 protocol interfaces. The MAX9296A chip is designed for high-bandwidth, low-latency video transmission applications, making it suitable for autonomous driving, machine vision, and intelligent security.
| SKU | Product |
|---|---|
| 33623 | MAX9296-GMSL-DESER-MODULE |
Specifications
| Type | Parameter |
|---|---|
| Deserializer | MAXIM (ADI) MAX9296A |
| Supported Mainboards | Raspberry Pi 5 / Jetson Orin NX/Nano Developer Kits |
| Compatible Serializers | MAX9295, MAX96717, MAX96705, etc. |
| GMSL Input | 2-Channel GMSL2 (GMSL1-Compatible) Camera |
| Input Interfaces | 2 × MATE_AX FAKRA Z connectors |
| Output Interface | 22PIN CSI connector |
| Supported GMSL Cameras | ISX031, etc. |
| Power Supply | 5V |
Hardware Specifications

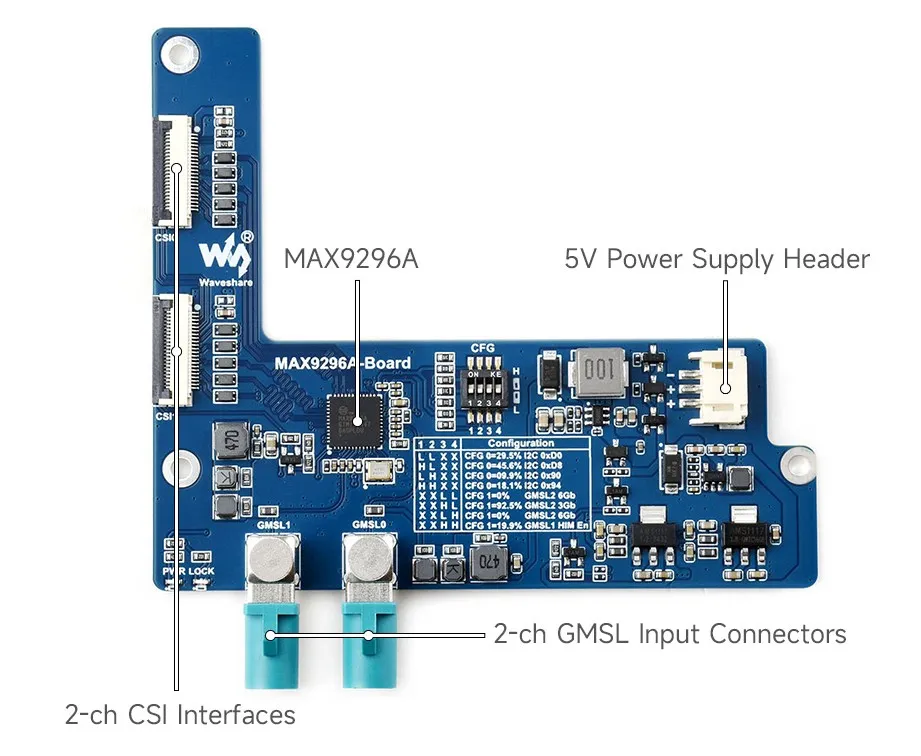

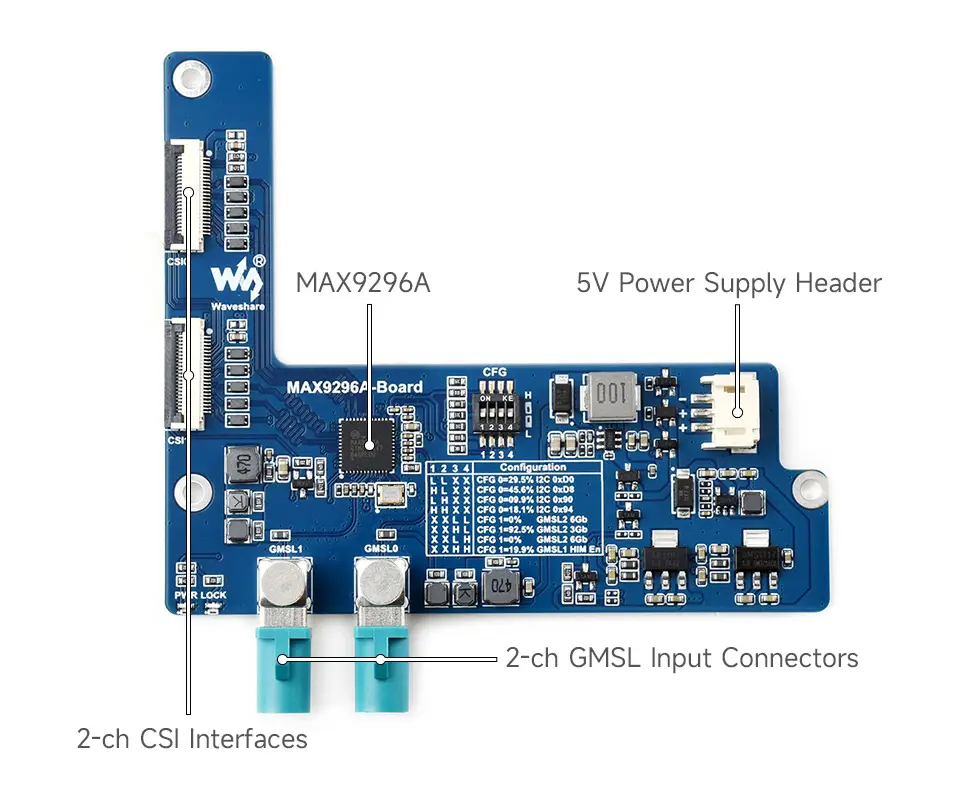

Interfaces
- CSI Interface x2: 2 x MIPI-4lanes 22Pin FFC/FPC connectors for connecting to Jetson Orin or Pi 5 mainboards
- CFG Switch: The CFG switch is used to configure default initial settings upon power-up, such as the serializer's I2C address and link rate. This configuration can be overwritten via software after power-up
- FAKRA Z Connectors x2: Used to connect GMSL cameras, providing POC 12V power
- 5V Power Interface: Input 5V power supply, providing power to the driver board and cameras

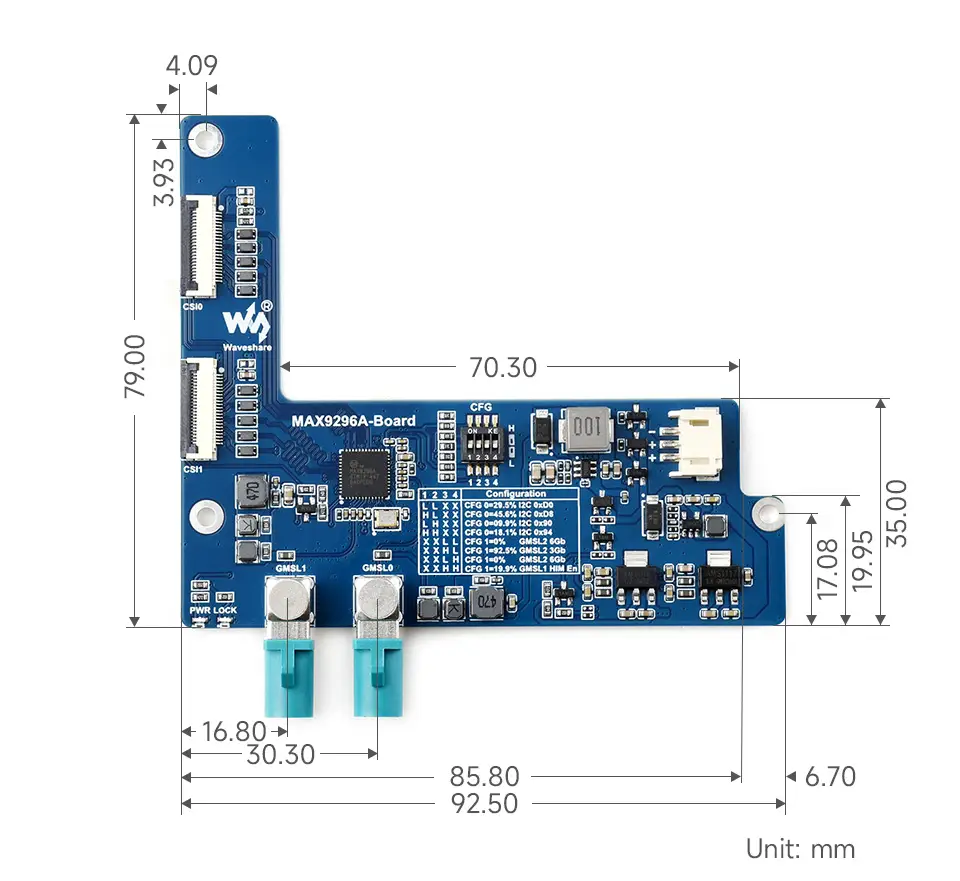

Dimensions
Supported Camera Models
| Camera Model | Serializer |
|---|---|
| ISX031C-GMSL-Camera-H100 | Max96717F |
| ISX031-GMSL-Camera-H60 | Max96717 |
| ISX031-GMSL-Camera-H100 | Max96717 |
| ISX031-GMSL-Camera-H120 | Max96717 |
| ISX031-GMSL-Camera-H190 | Max96717 |
| GMSL-2MP-Camera-A | Max96717F |
| GMSL-1MP-Camera-A | Max96701 |
