Working with Arduino

This chapter includes the following sections, please read as needed:

Arduino Getting Started Tutorial
Setting Up Development Environment
Demo

Arduino Getting Started Tutorial

New to Arduino ESP32 development and looking for a quick start? We have prepared a comprehensive Getting Started Tutorial for you.

Note: This tutorial uses the ESP32-S3-Zero as a reference example, and all hardware code is based on its pinout. Before you start, we recommend checking the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment

1. Installing and Configuring Arduino IDE

Please refer to the tutorial Installing and Configuring Arduino IDE Tutorial to download and install the Arduino IDE and add ESP32 support.

2. Installing Libraries

To run the demo, you need to install the corresponding library.

You can click this link to download the demo package for the ESP32-C6-GEEK development board. The Arduino\libraries directory within the package already includes all the library files required for this tutorial.

Library/File Name	Description	Version	Installation Method
ESP32-BLE-Keyboard-master	ESP32 Bluetooth Keyboard Library	v0.3.2	Manual Install
PubSubClient	MQTT message subscription and publishing library	v2.8.0	Via Library Manager or Manual Install
JPEGDecoder	JPEG Image Decoder library	v2.0.0	Via Library Manager or Manual Install
OneButton	Single Button events handling library	v2.5.0	Via Library Manager or Manual Install
BME68x Sensor library	BME68x Sensor driver library	v1.1.40406	Via Library Manager or Manual Install
ArduinoJson	Lightweight JSON library	v7.2.1	Via Library Manager or Manual Install

:::Warning Version Compatibility Description

There are strong dependencies between versions of LVGL and its driver libraries. For example, a driver written for LVGL v8 may not be compatible with LVGL v9. To ensure stable reproduction of the examples, it is recommended to use the specific versions listed in the table above. Mixing different library versions may cause compilation failures or runtime exceptions. :::

Installation Steps:

Unzip the downloaded demo package.
Copy all folders (Arduino_DriveBus, GFX_Library_for_Arduino, etc.) in the Arduino\libraries directory to the Arduino library folder.

info
The path to the Arduino libraries folder is typically: c:\Users\<Username>\Documents\Arduino\libraries.
You can also locate it within the Arduino IDE via File > Preferences, by checking the "Sketchbook location". The library folder is the libraries folder under this path.
For other installation methods, please refer to: Arduino Library Management Tutorial.

3. Other Tips

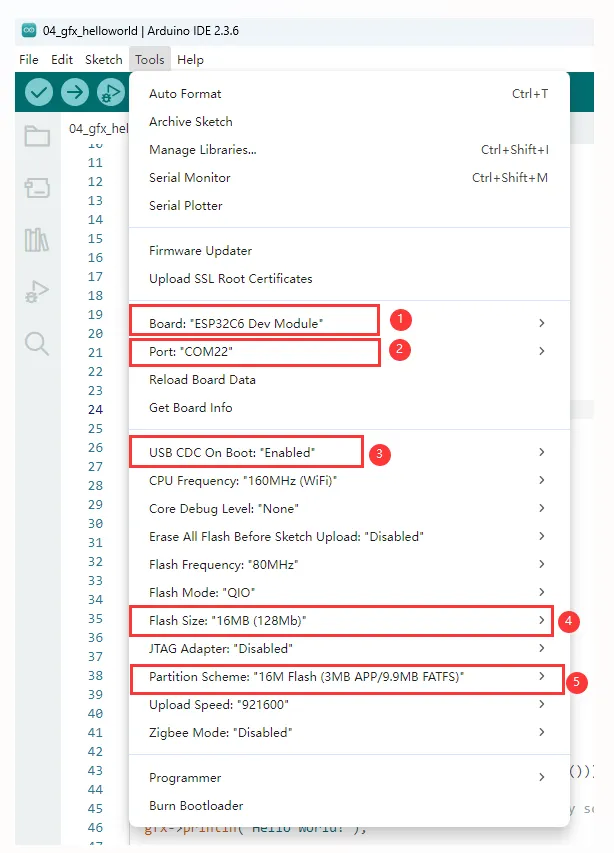

You need to select and configure the development board for ESP32-C6-GEEK.

Select the ESP32C6 Dev Module for ESP32-C6-GEEK.
Select the USB port.
The ESP32-C6-GEEK uses the ESP32-C6 native USB interface, not a UART-to-USB bridge. For serial communication:
- The printf() function can be used directly;
- To use the Serial.println() function, additional configuration is required: enable the "USB CDC On Boot" option in the IDE's Tools menu, or declare an HWCDC object in your code to handle USB serial communication.
Select 16MB Flash
Select a Partition Table of the appropriate size

Demo

The Arduino demos are located in the Arduino/examples directory of the demo package.

Demo	Basic Program Description	Dependency Library
01_OneButton	Button interaction and LCD display	OneButton
02_ADC_Read	ADC sampling
03_IIC_BME68X_Sensor	Driving I2C module	BME68x Sensor libraryXPowersLib
04_UART0	Serial communication

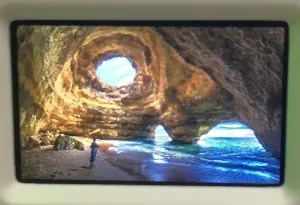

05_LCD_Button	Button operation to switch images, control backlight	OneButton
06_LCD_Time	Display date and time on LCD

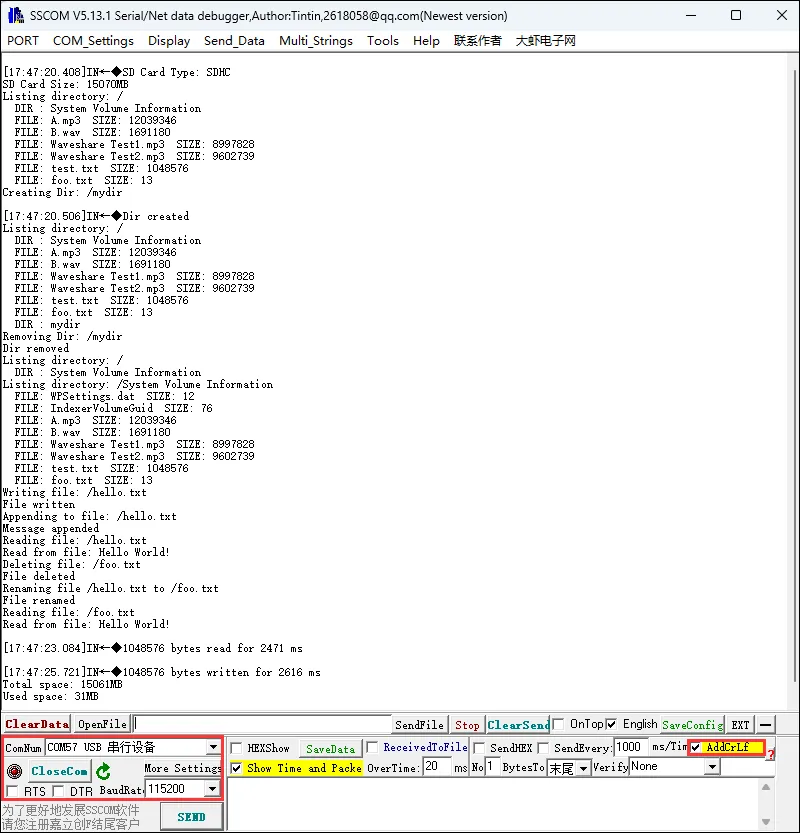

07_SD_Test	Perform file operations (create, read, update, delete) on TF card

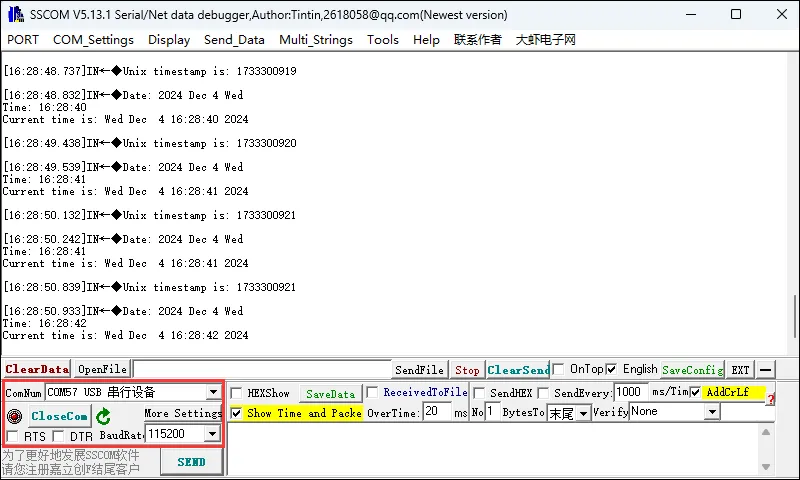

08_SD_LCD	Read JPEG images from TF card and display them on screen	JPEGDecoder

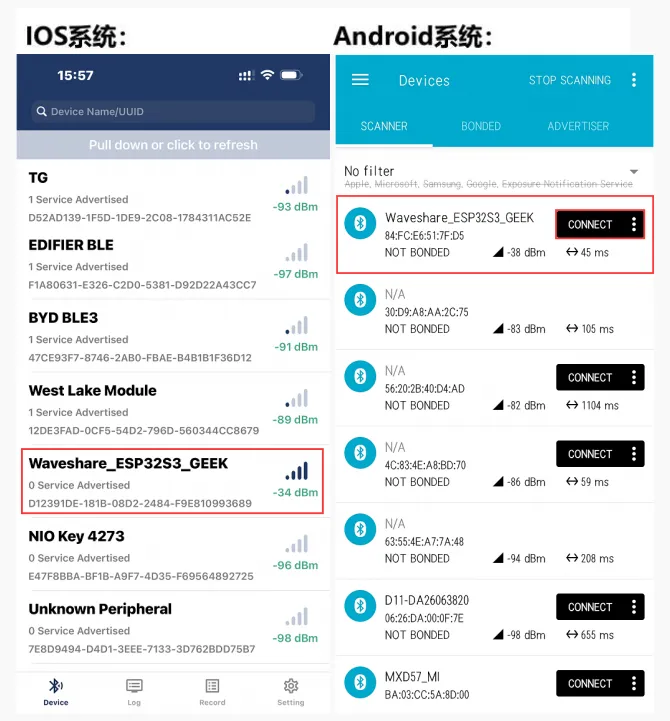

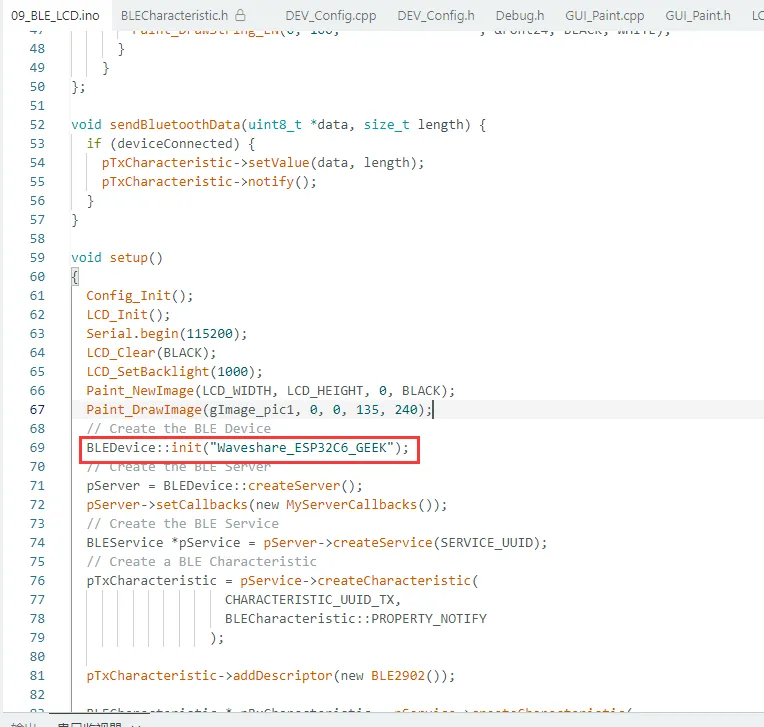

09_BLE_LCD	ESP32-C6 interacts with BLE and LCD, acts as a BLE server to send/receive data and display it on LCD	ESP32-BLE-Keyboard-master

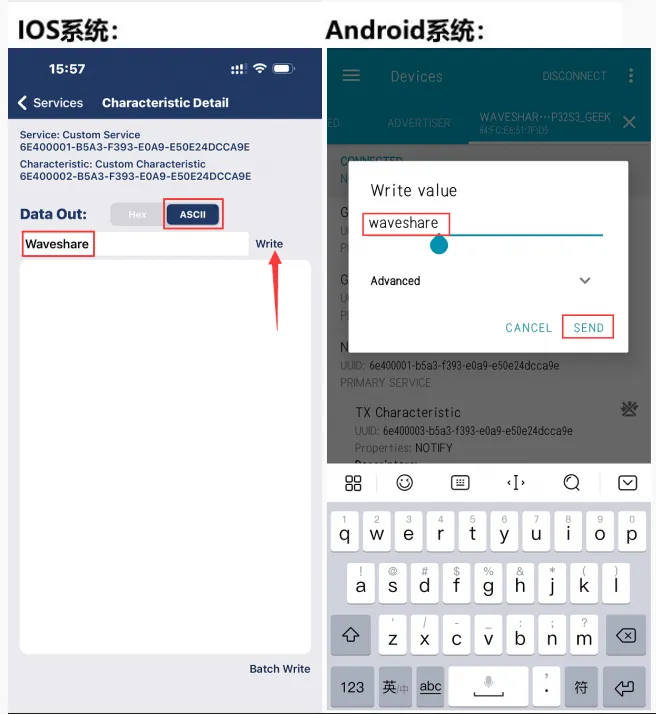

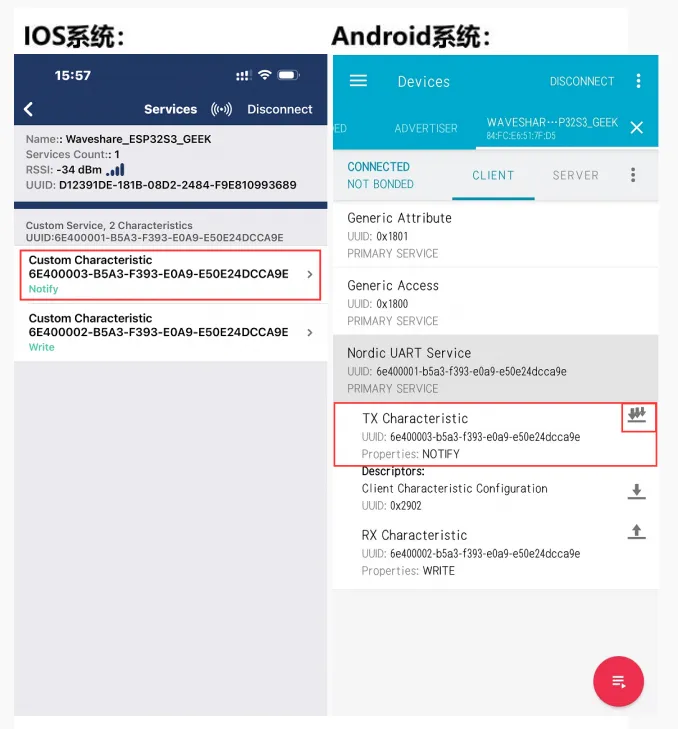

10_BLE_UART	ESP32-C6 interacts with BLE, acts as a BLE server to send/receive data and uses UART to display message content	ESP32-BLE-Keyboard-master
11_BLE_Keyboard	Simulate a BLE Keyboard	ESP32-BLE-Keyboard-master

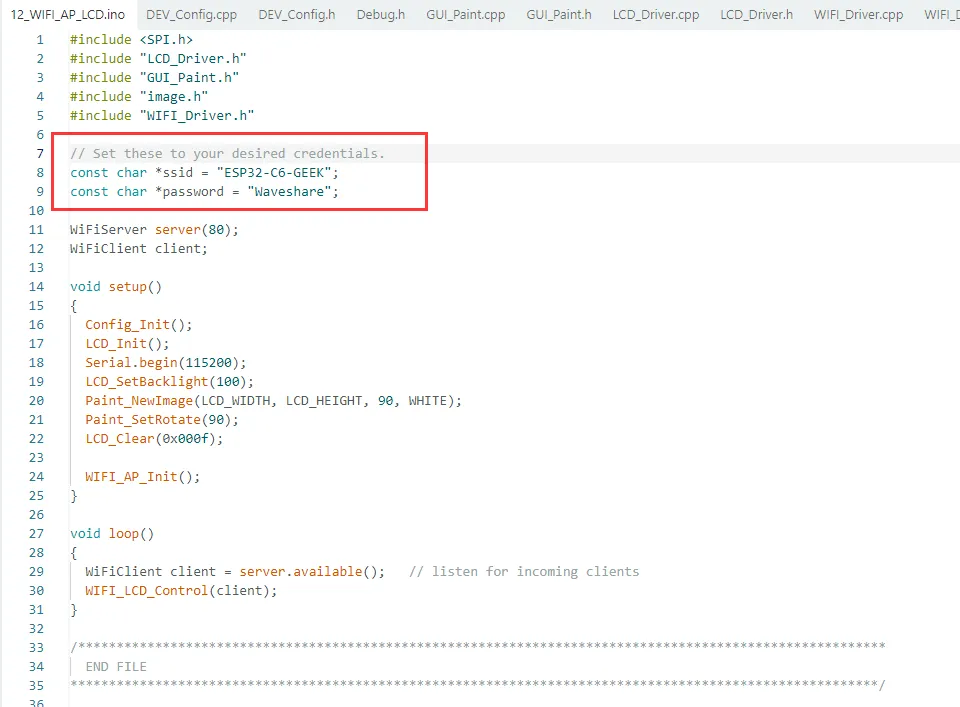

12_WIFI_AP_LCD	Interacts with Wi-Fi and LCD, acts as a Wi-Fi Access Point to communicate with clients and display on LCD

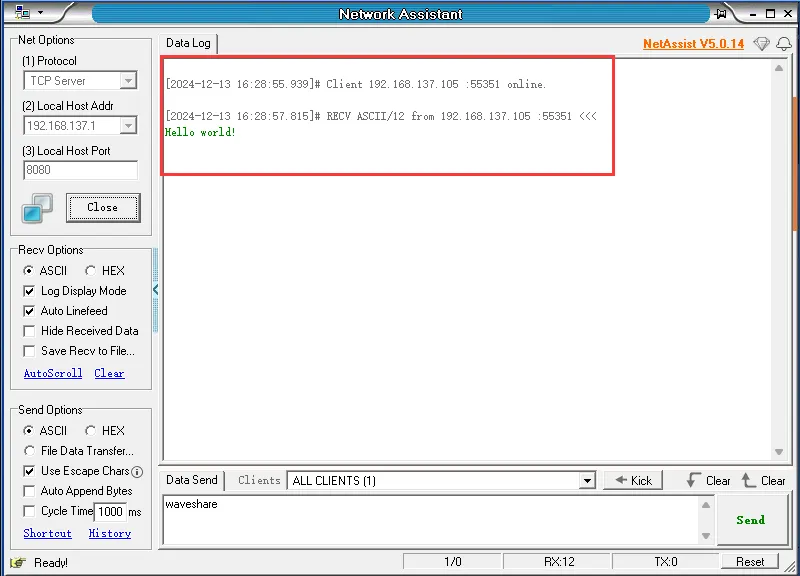

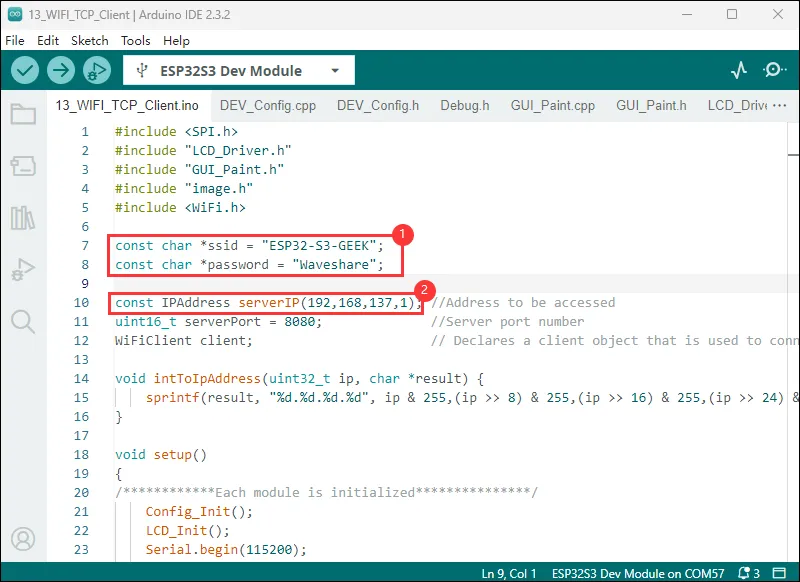

13_WIFI_TCP_Client	Interacts with Wi-Fi and LCD, connects to Wi-Fi, then attempts to connect to a server, sends/receives data and displays on LCD

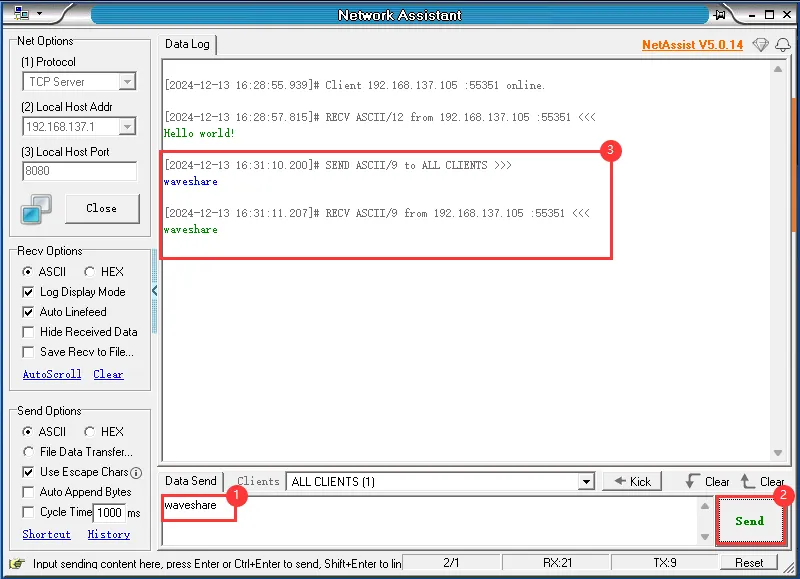

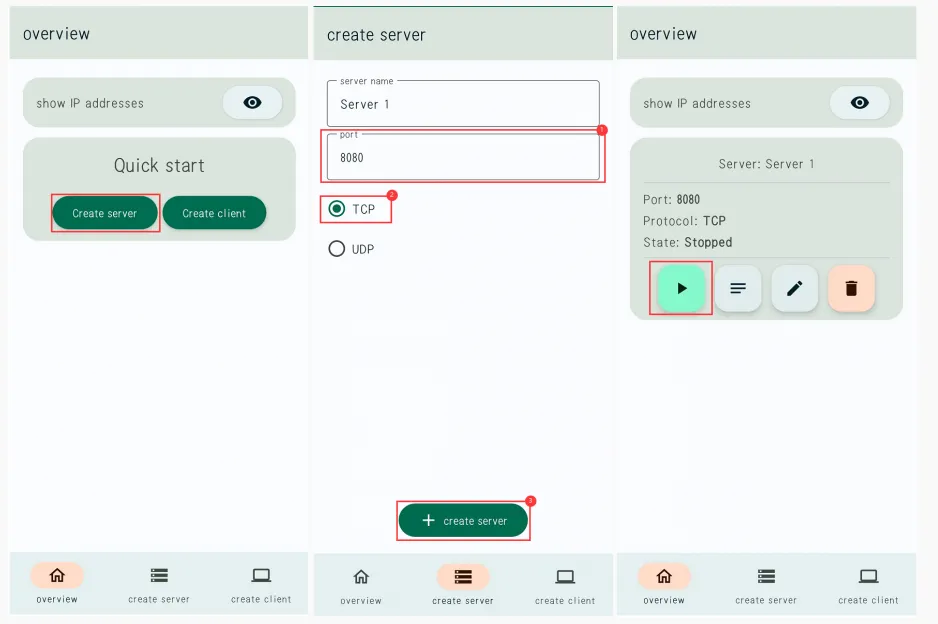

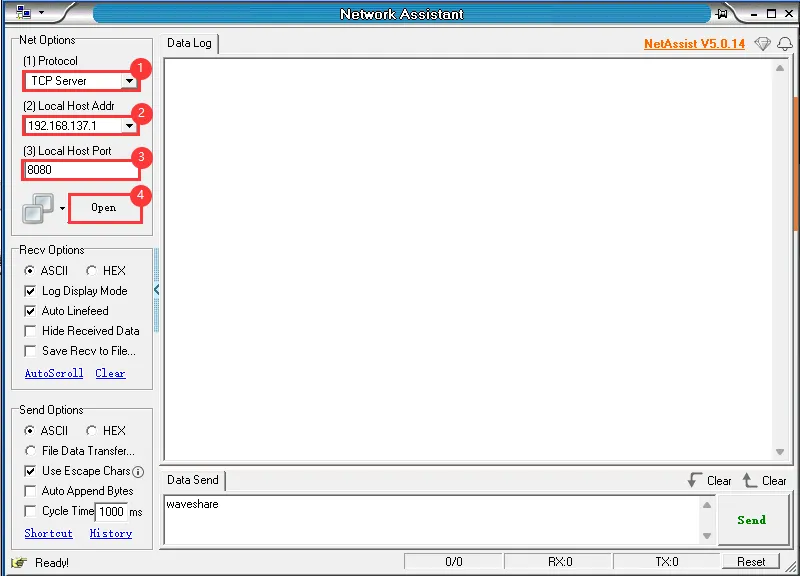

14_WIFI_TCP_Server	Interacts with Wi-Fi and LCD, acts as a Wi-Fi Server, receives client data and displays on LCD

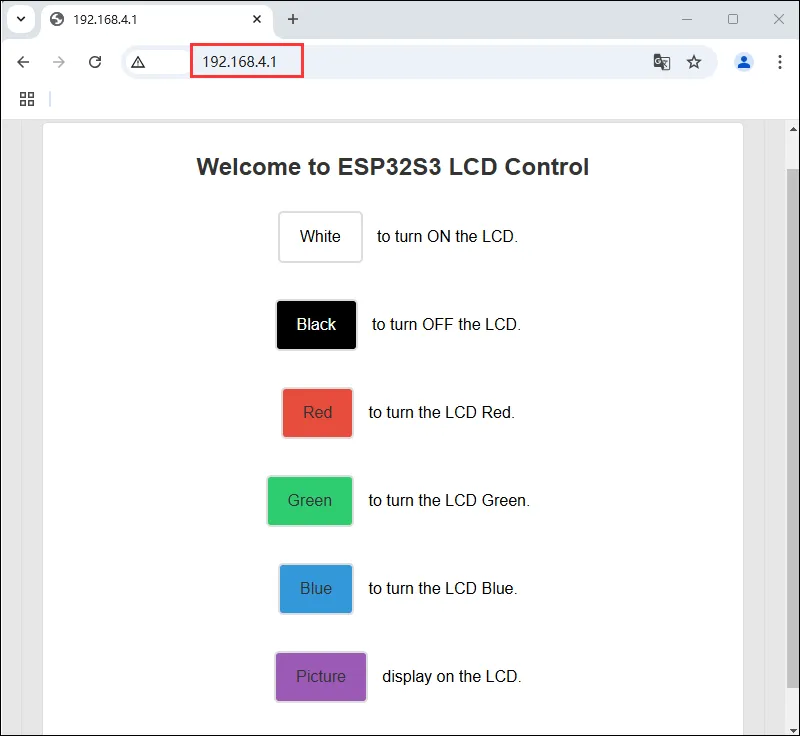

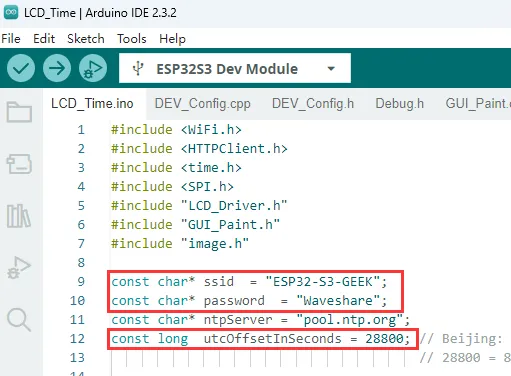

15_WIFI_Web_Server	Interacts with Wi-Fi and LCD, acts as a Wi-Fi Access Point Server, handles client requests

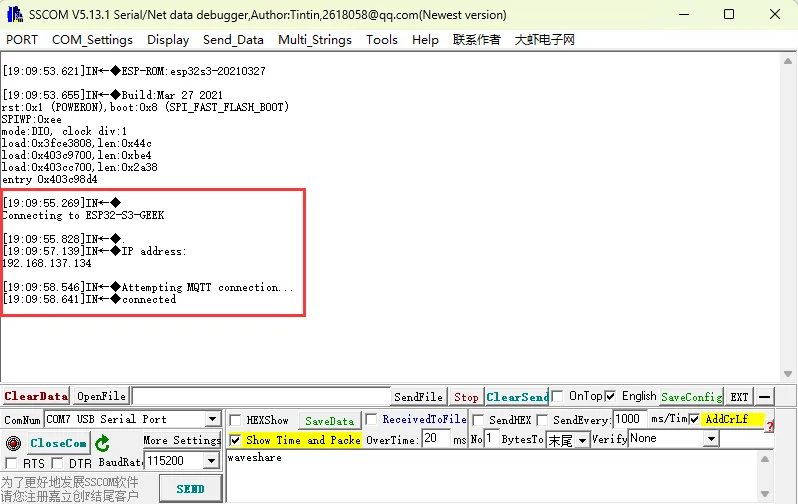

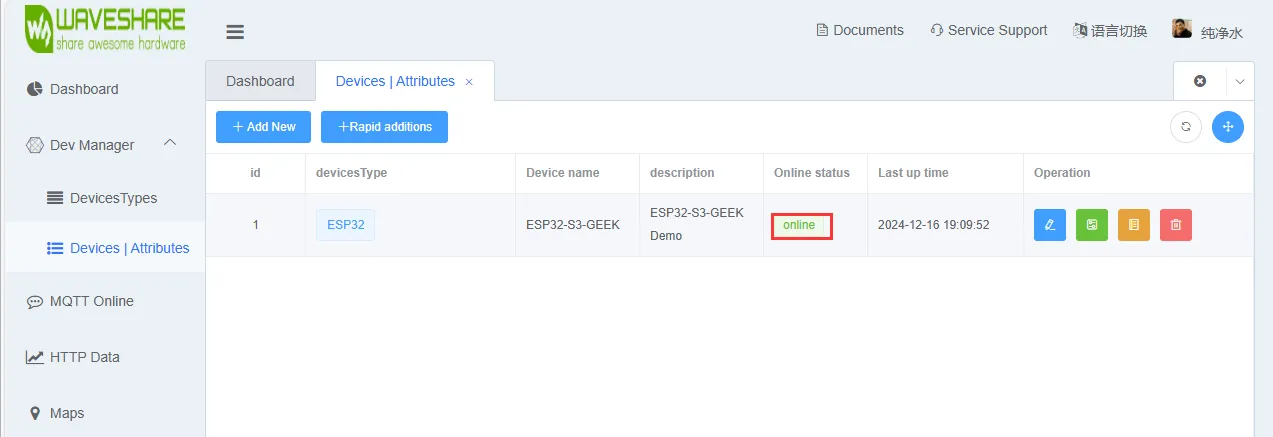

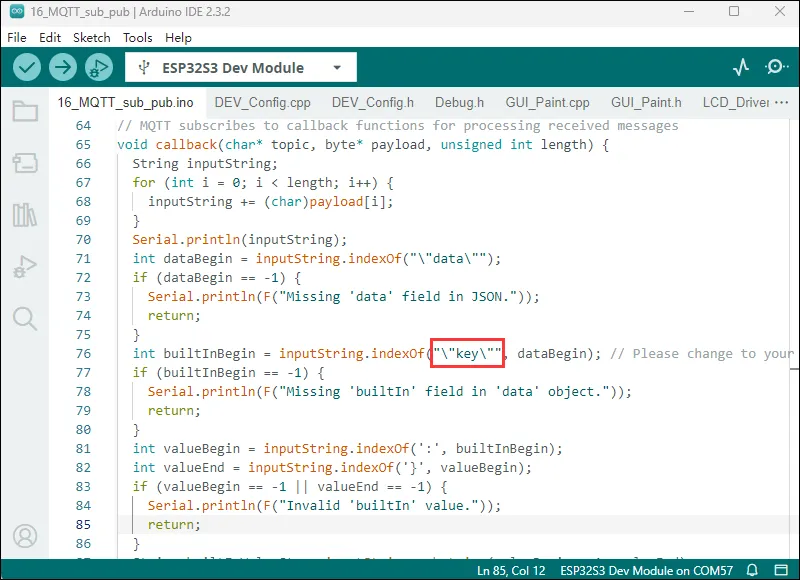

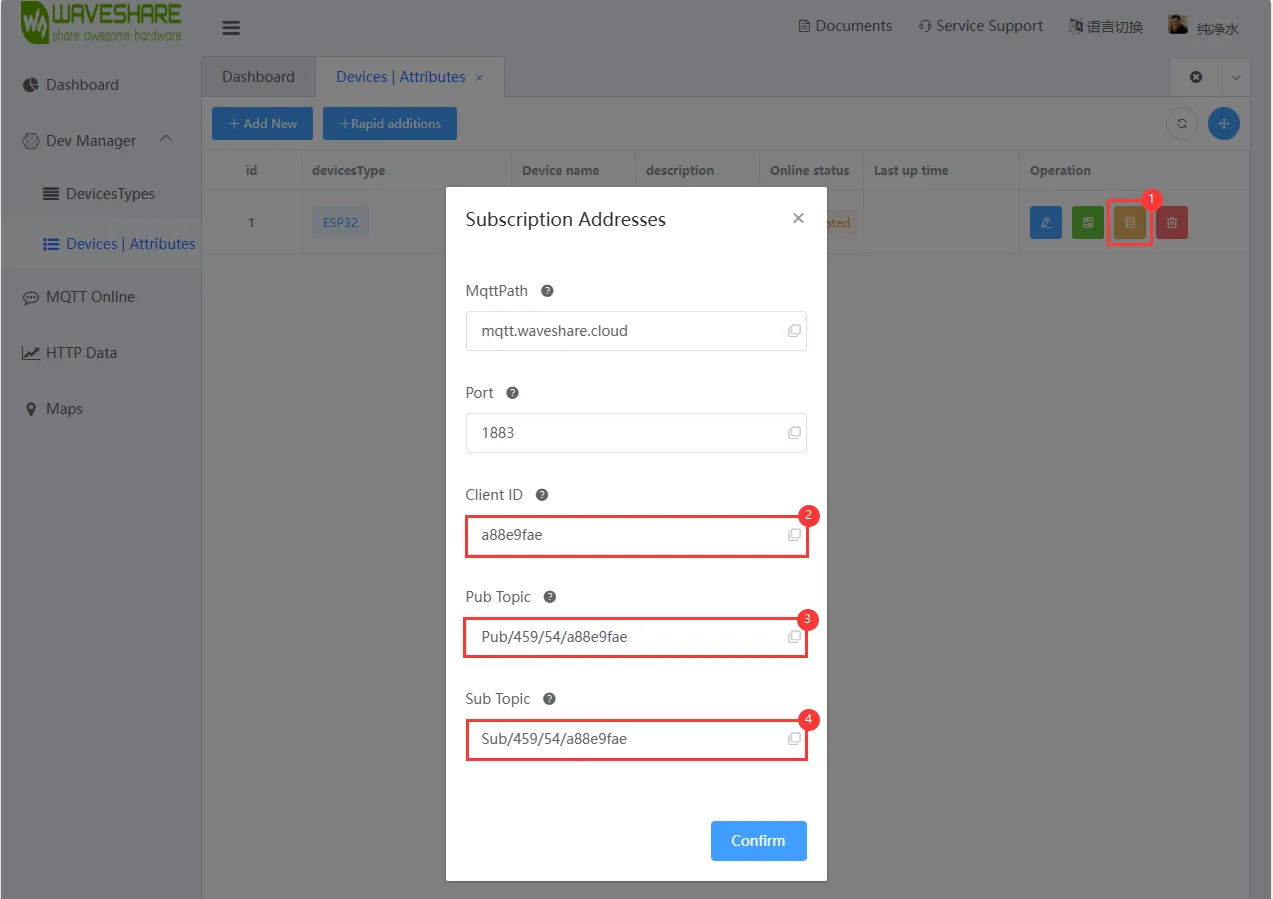

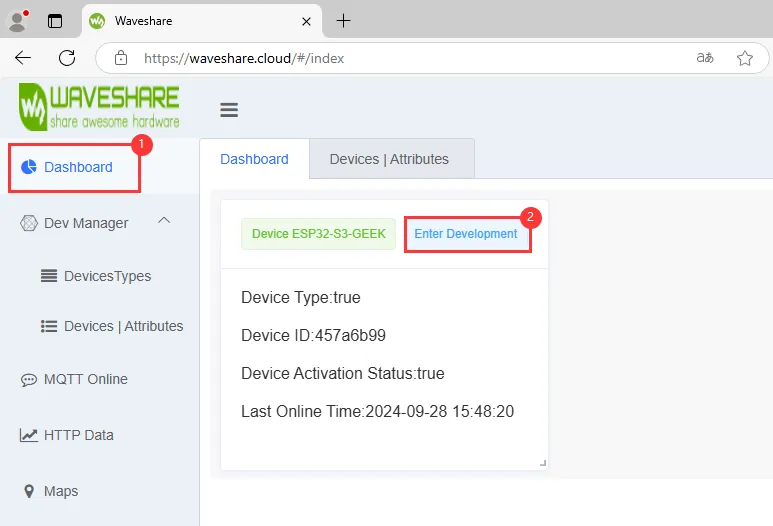

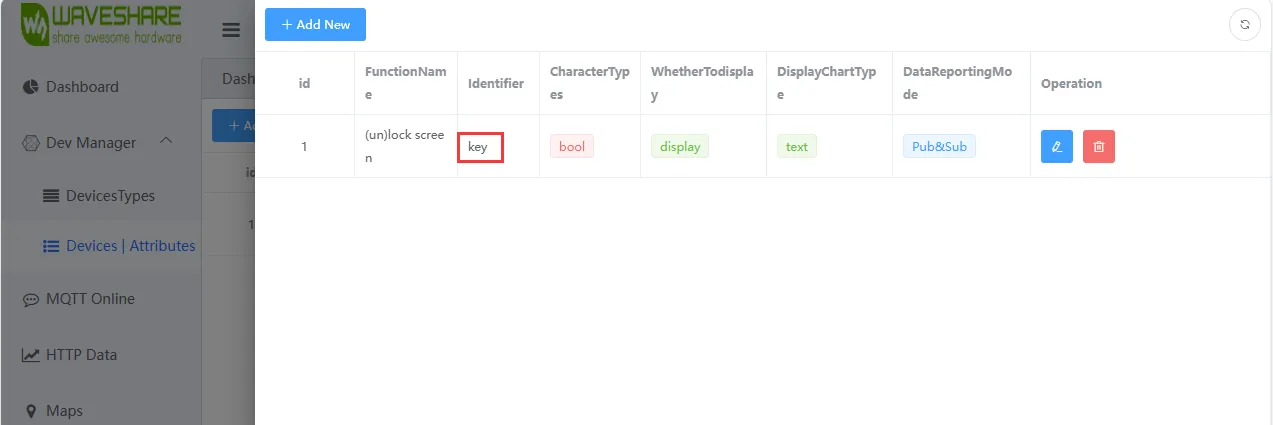

16_MQTT_sub_pub	Interacts with Wi-Fi and LCD, acts as a Wi-Fi Access Point Server, handles client requests	ArduinoJson, PubSubClient

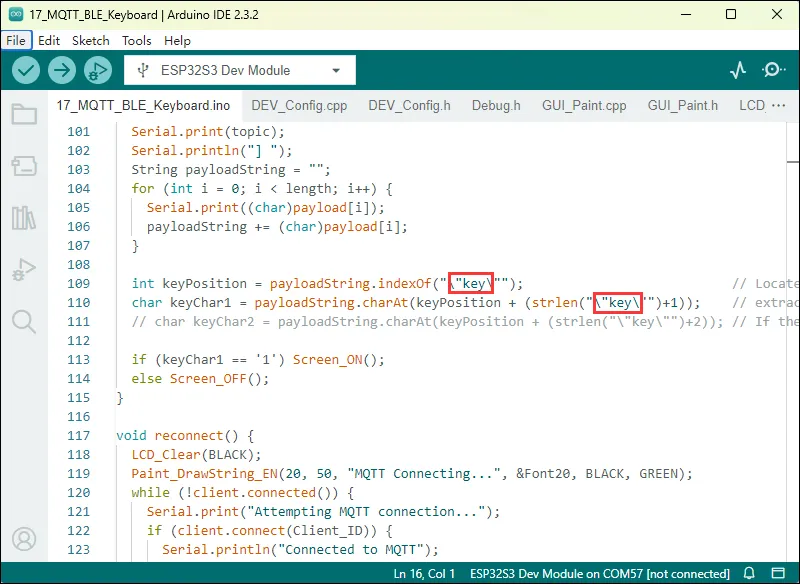

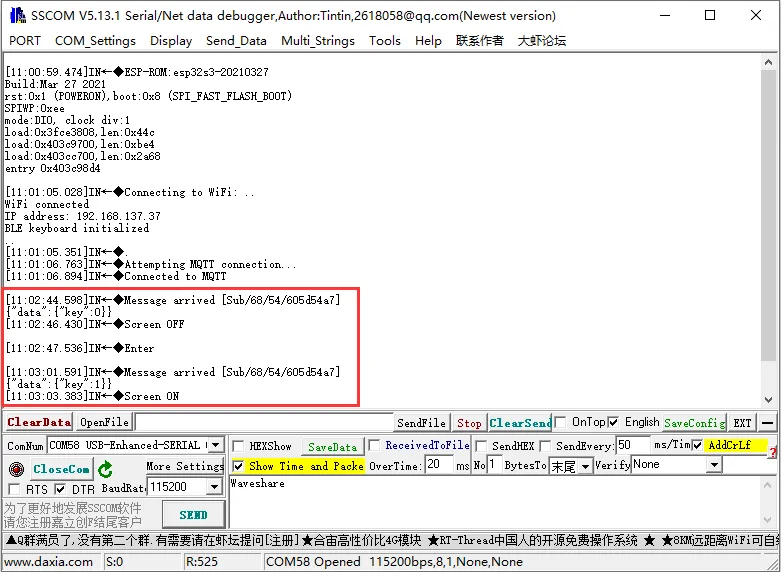

17_MQTT_BLE_Keyboard	Integrates BLE Keyboard, Wi-Fi, and MQTT, controls LCD display	ArduinoJson, PubSubClient, ESP32-BLE-Keyboard-master

01_OneButton

This example demonstrates how to use the ESP32-C6-GEEK's Boot button as a multi-function button, capable of performing different actions such as single-click, double-click, or long-press. It is suitable for learning ESP32-C6 button interaction and LCD display. You can observe LCD changes through button operations to test its reliability.

Code

01_OneButton.ino

  #include <SPI.h>
  #include "LCD_Driver.h"
  #include "GUI_Paint.h"
  #include "image.h"
  #include "OneButton.h"

  #define PIN_INPUT 9
  OneButton button(PIN_INPUT, true);

  void setup() {
    Serial.begin(115200);
    Config_Init();
    LCD_Init();
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
    Paint_SetRotate(90);
    LCD_Clear(BLACK);
    Paint_DrawString_EN(28, 50, "Button Start", &Font24, BLACK, GREEN);

    button.attachLongPressStart(LongPressStart, &button);
    button.attachClick(Click, &button);
    button.attachDoubleClick(DoubleClick, &button);
    button.setLongPressIntervalMs(1000);
  }

  void loop() {
    // keep watching the push button:
    button.tick();
    delay(10);
  }

  // this function will be called when the button started long pressed.
  void LongPressStart(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(50, 50, "LongPress", &Font24, BLACK, RED);
  }

  void Click(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 50, "Click", &Font24, BLACK, YELLOW);
  }

  void DoubleClick(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(35, 50, "DoubleClick", &Font24, BLACK, BLUE);
  }

Code Analysis

Button event binding:

button.attachLongPressStart(LongPressStart, &button);
button.attachClick(Click, &button);
button.attachDoubleClick(DoubleClick, &button);
button.setLongPressIntervalMs(1000);

Continuous monitoring:

void loop() {
// keep watching the push button:
button.tick();
delay(10);
}

Button event callback:

void LongPressStart(void *oneButton)
{
  LCD_Clear(BLACK);
  Paint_DrawString_EN(50, 50, "LongPress", &Font24, BLACK, RED);
}

void Click(void *oneButton)
{
  LCD_Clear(BLACK);
  Paint_DrawString_EN(75, 50, "Click", &Font24, BLACK, YELLOW);
}

void DoubleClick(void *oneButton)
{
  LCD_Clear(BLACK);
  Paint_DrawString_EN(35, 50, "DoubleClick", &Font24, BLACK, BLUE);
}

02_ADC_Read

This example uses the GPIO interface of the ESP32-C6-GEEK to perform ADC sampling, reading voltages within the 3.3V range. Pay attention to common grounding and do not exceed the measurement range during use. It is suitable for learning analog input on the ESP32-C6. You can read analog values from specific pins, observe changes, and test stability.

Hardware Connection

Connect both ends of an SH1.0 3PIN cable to the development board and the voltage source under test.

The pin connected to GPIO6 on the development board is used to read the measured voltage.
The GND pin on the development board (the GND of the I2C or UART interface can be used) is connected to the GND pin of the voltage source under test, ensuring a common ground connection.

Code

02_ADC_Read.ino

#include <Arduino.h>

#define ADC1_CHANNEL_0 0  //Define the pin macro
#define DEV_BL_PIN  6

void setup() {
  analogWrite(DEV_BL_PIN,0);
  Serial.begin(115200);      //The serial port is initially configured
  analogReadResolution(12);  //Set ADC resolution to 12 bits (0-4096)
}

void loop() {
  // Define two variables to hold the original value and the voltage value (millivolts) collected by the ADC
  int analogOriginalValue = 0;
  int analogVoltsValue = 0;

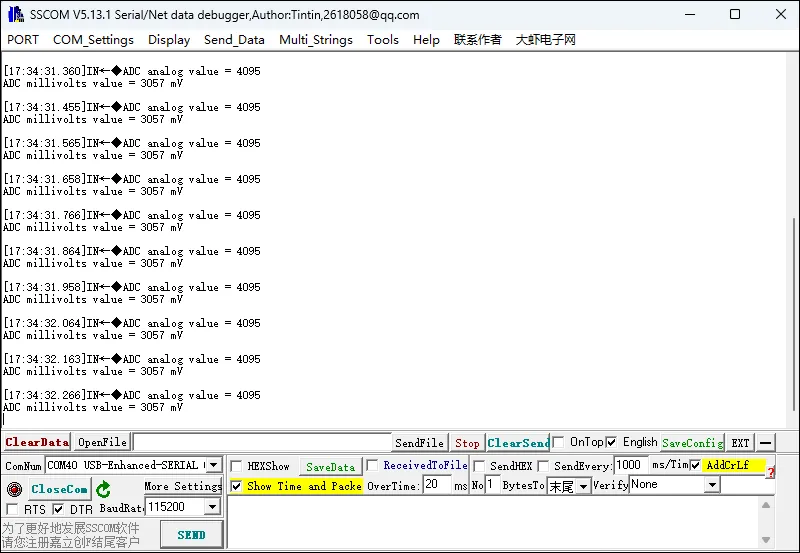

  analogOriginalValue = analogRead(ADC1_CHANNEL_0);         // Read the ADC raw value
  analogVoltsValue = analogReadMilliVolts(ADC1_CHANNEL_0);  // Read ADC voltage values (millivolt range)

  // Upload read ADC values:
  Serial.printf("ADC analog value = %d\n",analogOriginalValue);
  Serial.printf("ADC millivolts value = %d mV\n",analogVoltsValue);

  delay(3000);
}

Code Analysis

Initialize the backlight control pin to a low level.
Enable serial communication, set the baud rate to 115200.

Set the ADC resolution to 12-bit.

  void setup() {
  analogWrite(DEV_BL_PIN,0);
  Serial.begin(115200);      //The serial port is initially configured
  analogReadResolution(12);  //Set ADC resolution to 12 bits (0-4096)
  }

Define variables to store the raw ADC value and the voltage value.
Read the raw ADC value and the voltage value from the specified pin.

Output the ADC value via the serial port.

  void loop() {
  // Define two variables to hold the original value and the voltage value (millivolts) collected by the ADC
  int analogOriginalValue = 0;
  int analogVoltsValue = 0;

  analogOriginalValue = analogRead(ADC1_CHANNEL_0);         // Read the ADC raw value
  analogVoltsValue = analogReadMilliVolts(ADC1_CHANNEL_0);  // Read ADC voltage values (millivolt range)

  // Upload read ADC values:
  Serial.printf("ADC analog value = %d\n",analogOriginalValue);
  Serial.printf("ADC millivolts value = %d mV\n",analogVoltsValue);

  delay(3000);
  }

03_IIC_BME68X_Sensor

This example uses the I2C hardware interface of the ESP32-C6-GEEK to drive an I2C module. The example demonstrates using a BME680 sensor, printing data output via the serial port. It is suitable for learning how the ESP32-C6 interacts with BME68X sensors. You can set pins and communication modes, read various data, and test compatibility and stability.

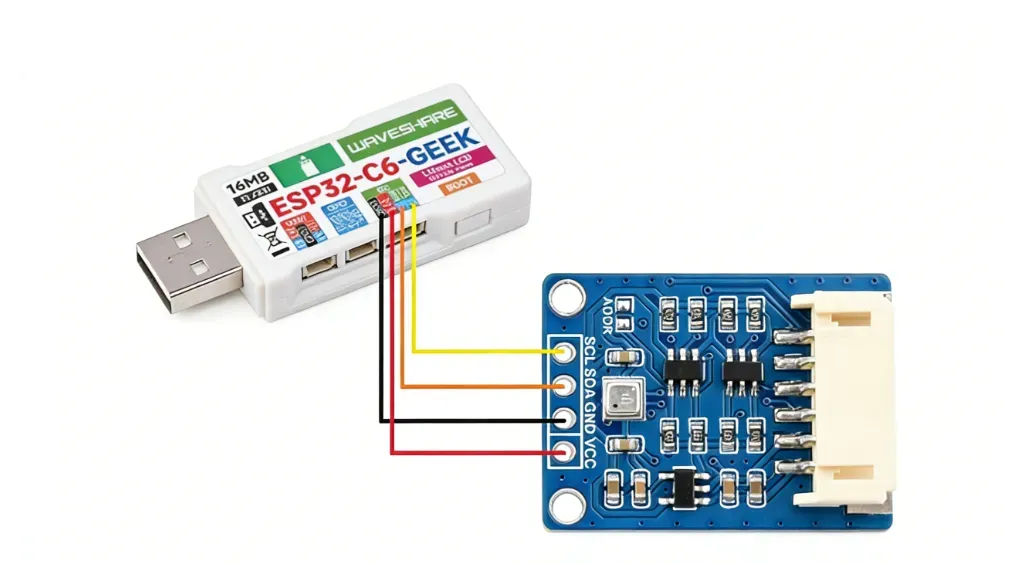

Hardware Connection

Code

03_IIC_BME68X_Sensor.ino

#include "Arduino.h"
#include "bme68xLibrary.h"

#ifndef PIN_CS
#define PIN_CS 15
#endif

#ifndef ADD_I2C
#define ADD_I2C 0x77
#endif

#ifndef PIN_SDA
#define PIN_SDA 7
#endif

#ifndef PIN_SCL
#define PIN_SCL 8
#endif

#ifndef PIN_BL
#define PIN_BL 6
#endif

Bme68x bme;

/**
 * @brief Initializes the sensor and hardware settings
 */
setup() {
{
  analogWrite(PIN_BL,0);
  Wire.begin(PIN_SDA, PIN_SCL);     //I2C mode
	//SPI.begin();    //SPI mode
	Serial.begin(115200);
  delay(100);
	Serial.println(PIN_SDA);
  Serial.println(PIN_SCL);

	while (!Serial)
		delay(10);

	/* initializes the sensor based on SPI library */
	//bme.begin(PIN_CS, SPI);     //SPI mode
  bme.begin(ADD_I2C, Wire);     //I2C mode

	if(bme.checkStatus())
	{
		if (bme.checkStatus() == BME68X_ERROR)
		{
			Serial.println("Sensor error:" + bme.statusString());
			return;
		}
		else if (bme.checkStatus() == BME68X_WARNING)
		{
			Serial.println("Sensor Warning:" + bme.statusString());
		}
	}

	/* Set the default configuration for temperature, pressure and humidity */
	bme.setTPH();

	/* Set the heater configuration to 300 deg C for 100ms for Forced mode */
	bme.setHeaterProf(300, 100);

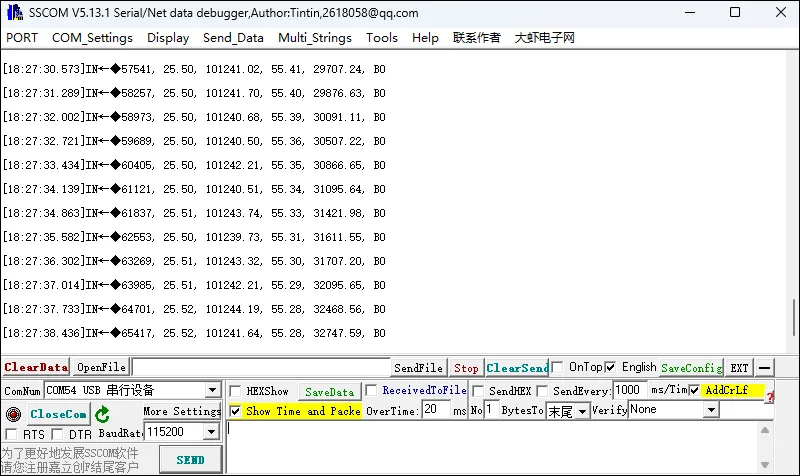

	Serial.println("TimeStamp(ms), Temperature(deg C), Pressure(Pa), Humidity(%), Gas resistance(ohm), Status");
}

void loop(void)
{
	bme68xData data;

	bme.setOpMode(BME68X_FORCED_MODE);
	delay(500+bme.getMeasDur()/200);

	if (bme.fetchData())
	{
		bme.getData(data);
		Serial.print(String(millis()) + ", ");
		Serial.print(String(data.temperature) + ", ");
		Serial.print(String(data.pressure) + ", ");
		Serial.print(String(data.humidity) + ", ");
		Serial.print(String(data.gas_resistance) + ", ");
		Serial.println(data.status, HEX);
	}
}

Code Analysis

Use analogWrite to set the backlight control pin PIN_BL to 0, turning off the backlight.
Use Wire.begin(PIN_SDA, PIN_SCL) to initialize I2C communication (the commented SPI.begin() indicates SPI mode is also possible but is not enabled here).
Initialize serial communication, set the baud rate to 115200.
Wait for the serial port connection to be ready.
Initialize the BME68X sensor according to the configured communication method (I2C here). If an error or warning occurs during initialization, corresponding information will be output via serial.
Set the sensor's temperature, pressure, and humidity measurement configurations, and configure the heater.

Output a header row for the data via serial, including timestamp, temperature, pressure, humidity, gas resistance, and status.

setup() {
{
  analogWrite(PIN_BL,0);
  Wire.begin(PIN_SDA, PIN_SCL);     //I2C mode
  //SPI.begin();    //SPI mode
  Serial.begin(115200);
  delay(100);
  Serial.println(PIN_SDA);
  Serial.println(PIN_SCL);

  while (!Serial)
    delay(10);

  /* initializes the sensor based on SPI library */
  //bme.begin(PIN_CS, SPI);     //SPI mode
  bme.begin(ADD_I2C, Wire);     //I2C mode

  if(bme.checkStatus())
  {
    if (bme.checkStatus() == BME68X_ERROR)
    {
      Serial.println("Sensor error:" + bme.statusString());
      return;
    }
    else if (bme.checkStatus() == BME68X_WARNING)
    {
      Serial.println("Sensor Warning:" + bme.statusString());
    }
  }

  /* Set the default configuration for temperature, pressure and humidity */
  bme.setTPH();

  /* Set the heater configuration to 300 deg C for 100ms for Forced mode */
  bme.setHeaterProf(300, 100);

  Serial.println("TimeStamp(ms), Temperature(deg C), Pressure(Pa), Humidity(%), Gas resistance(ohm), Status");
}

04_UART0

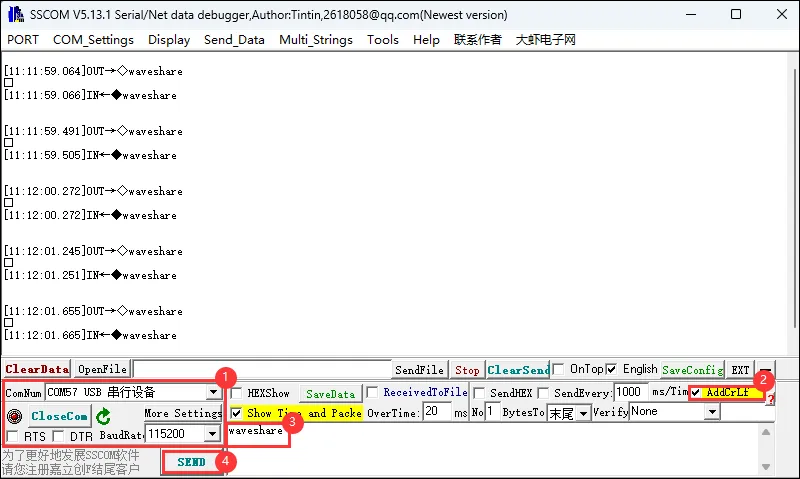

This example opens the UART0 serial port on the ESP32-C6-GEEK. By opening a serial debug assistant, serial communication can be performed. It is suitable for learning serial communication on the ESP32-C6, receiving data and outputting it.

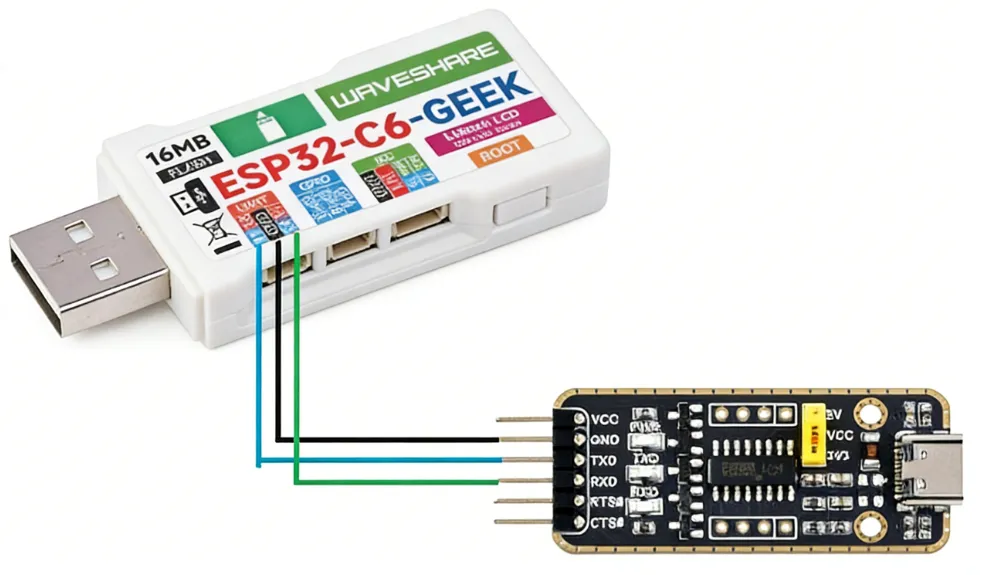

Hardware Connection

Code

04_UART0.ino

#include <HardwareSerial.h>

#define DEV_BL_PIN  6

void setup() {
  analogWrite(DEV_BL_PIN,0);
  Serial.begin(115200);
}

void loop() {
  if (Serial.available()) {
    char buffer[256];                 // Buffer to store input data
    size_t bufferSize = 0;  // Current size of data in buffer

    while (Serial.available() > 0) {
      char input = Serial.read();
      buffer[bufferSize++] = input;   // Store input in buffer
      // Check if the buffer is full, or a newline character is received
      if (bufferSize >= sizeof(buffer) || input == '\n') {
      // Send the entire buffer via Serial2
        Serial.println(buffer);
        delay(10);
      // Reset buffer and size for the next input
        bufferSize = 0;
        memset(buffer, 0, sizeof(buffer));
      }
    }
  }
}

Code Analysis

Check if there is data available to read from the serial port. If data is available, enter a loop to process the input data.
Create a character array buffer to store input data and a variable bufferSize to record the amount of data in the buffer.
In the loop, read one character at a time and store it in the buffer, while incrementing the buffer size.
When the buffer is full (reaches the array size) or a newline character is read, output the data in the buffer via serial, then delay for 10 milliseconds.

Finally, reset the buffer size to 0 and use the memset function to clear the buffer, preparing for the next input.

void loop() {
  if (Serial.available()) {
    char buffer[256];                 // Buffer to store input data
    size_t bufferSize = 0;  // Current size of data in buffer

    while (Serial.available() > 0) {
      char input = Serial.read();
      buffer[bufferSize++] = input;   // Store input in buffer
      // Check if the buffer is full, or a newline character is received
      if (bufferSize >= sizeof(buffer) || input == '\n') {
      // Send the entire buffer via Serial2
        Serial.println(buffer);
        delay(10);
      // Reset buffer and size for the next input
        bufferSize = 0;
        memset(buffer, 0, sizeof(buffer));
      }
    }
  }
}

05_LCD_Button

This example uses the Boot button of the ESP32-C6-GEEK to achieve a short press to turn on the LCD and switch to the next image, and a long press to turn off the LCD. It is suitable for learning button interaction and LCD image display on the ESP32-C6. You can switch images and control the backlight through button operations to test stability.

Code

05_LCD_Button.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include "OneButton.h"

#define PIN_INPUT 9
OneButton button(PIN_INPUT, true);

char click = 1;

void setup() {
  Serial.begin(115200);
  Config_Init();
  LCD_Init();
  LCD_Clear(BLACK);
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
  Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);

  button.attachLongPressStart(LongPressStart, &button);
  button.attachClick(Click, &button);
  button.setLongPressIntervalMs(1000);
}

void loop() {
  // keep watching the push button:
  button.tick();

  delay(10);
}

// this function will be called when the button started long pressed.
void LongPressStart(void *oneButton)
{
  analogWrite(DEV_BL_PIN, 0);
}

void Click(void *oneButton)
{
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
  click++;
  if(click >= 4)click = 1;
  switch(click)
  {
    case 1:
    Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);
    break;
    case 2:
    Paint_DrawImage(gImage_pic2, 0, 0, 135, 240);
    break;
    case 3:
    Paint_DrawImage(gImage_pic3, 0, 0, 135, 240);
    break;
  }
}

Code Analysis

When the button is clicked, this function is called. It switches the display to different images (gImage_pic1, gImage_pic2, gImage_pic3) based on different click values:

  void Click(void *oneButton)
{
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
  click++;
  if(click >= 4)click = 1;
  switch(click)
  {
    case 1:
    Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);
    break;
    case 2:
    Paint_DrawImage(gImage_pic2, 0, 0, 135, 240);
    break;
    case 3:
    Paint_DrawImage(gImage_pic3, 0, 0, 135, 240);
    break;
  }
}

06_LCD_Time

This example uses the ESP32-C6-GEEK to connect to Wi-Fi, obtain the current time, and display the time and date on both the LCD and a serial debug assistant. It is suitable for learning Wi-Fi connection and time synchronization on the ESP32-C6. You can connect to a specific network, synchronize time, display the date and time on the LCD, and test stability and accuracy.

Additional Preparation

Use a PC to open a hotspot. Set the network band to "Any available frequency". Modify ssid and password to the Wi-Fi name and password you want to connect to. utcOffsetInSeconds is the time zone for which we need to obtain the time. For example, Beijing, UTC+8 (East 8th zone), is 8 * 60 *60=28800.

Note: When the ESP32-C6-GEEK operates in STA mode and connects to the same Wi-Fi network as the PC, the Wi-Fi network the ESP32-C6-GEEK connects to must have a 2.4GHz band. If there is no 2.4GHz band, set the network band to "Any available frequency". Here, we directly choose "Any available frequency".

Code

06_LCD_Time.ino

#include <WiFi.h>
#include <HTTPClient.h>
#include <time.h>
#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"

const char* ssid  = "OnePlus 12";
const char *password = "linshuchao020405";
const char* ntpServer = "pool.ntp.org";
const long  utcOffsetInSeconds = 28800; // Beijing: UTC +8 - Get the Eastern 8 Zone time (by default, the prime meridian of the Greenwich Observatory is the base line)
                                        // 28800 = 8 * 60 * 60

void setup() {
  Serial.begin(115200);

  Config_Init();
  LCD_Init();
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(BLACK);
  delay(1000);

  while (!Serial);
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("Connected to WiFi");
  //Acquisition time
  configTime(utcOffsetInSeconds, 0, ntpServer);
  while (!time(nullptr)) {
    delay(1000);
    Serial.println("Waiting for time sync...");
  }
  LCD_Clear(BLACK);
  Serial.println("Time synced successfully");
}

void loop() {
  time_t now = time(nullptr);
  char* timeString = ctime(&now);
  removeNewlineCharacters(timeString);

  char date[20];  // Save a buffer for the date, such as "2023 Jan 01 Tue"
  char time[9];   // Save time buffer, such as "12:34:56"

  // Extract date and time
  extractDateAndTime(timeString, date, time);

  Serial.print("Date: ");
  Serial.print(date);
  Serial.print(" ");
  Serial.print((date + 6));
  Serial.print(" ");
  Serial.print((date + 10));
  Serial.print(" ");
  Serial.println((date + 14));
  Serial.print("Time: ");
  Serial.println(time);

  Serial.print("Current time is: ");
  Serial.println(timeString);  /// Print time
  Paint_DrawString_EN(55, 32, time, &Font24, BLACK, GREEN);
  Paint_DrawString_EN(15, 82, date, &Font20, BLACK, GREEN);
  Paint_DrawString_EN(80, 82, (date + 6), &Font20, BLACK, GREEN);
  Paint_DrawString_EN(135, 82, (date + 10), &Font20, BLACK, GREEN);
  Paint_DrawString_EN(175, 82, (date + 14), &Font20, BLACK, GREEN);
  // Convert current time to Unix timestamp
  long unixTimestamp = static_cast<long>(now);  //Gets a unix timestamp
  Serial.print("Unix timestamp is: ");
  Serial.println(unixTimestamp);
  delay(100);
}

void removeNewlineCharacters(char* str) {
  size_t len = strlen(str);

  // Search forward from the end of the string, dropping the ending '\r' and '\n'
  for (int i = len - 1; i >= 0; --i) {
    if (str[i] == '\r' || str[i] == '\n') {
      str[i] = '\0';  // Replace '\r' or '\n' with '\o'
    }else{
      break;          // Stop after finding the first character that is not '\r' and '\n'
    }
  }
}

void extractDateAndTime(const char* timeString, char* dateTimeStr, char* timeStr) {
  // Use the sscanf function to extract the week, month, date, and year from the string
  sscanf(timeString, "%s %s %s %s %s", dateTimeStr + 14, dateTimeStr + 6, dateTimeStr + 10, timeStr, dateTimeStr);
}

Code Analysis

Display "Wifi Connecting..." on the LCD to indicate that the device is attempting to connect to Wi-Fi. Initiate the connection process using WiFi.begin(ssid, password) with the specified network name and password, and enter a loop to wait for a successful connection. During this process, print "Connecting to WiFi..." to the serial monitor every 1000 milliseconds to inform the user of the connection progress. Once the connection is successful, clear the LCD screen and display "Wifi Connected", preparing for subsequent network‑dependent operations.

  void setup() {
  Serial.begin(115200);

  Config_Init();
  LCD_Init();
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(BLACK);
  delay(1000);

  while (!Serial);
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("Connected to WiFi");
  //Acquisition time
  configTime(utcOffsetInSeconds, 0, ntpServer);
  while (!time(nullptr)) {
    delay(1000);
    Serial.println("Waiting for time sync...");
  }
  LCD_Clear(BLACK);
  Serial.println("Time synced successfully");
}

07_SD_Test

This example uses the TF card slot of the ESP32-C6-GEEK. Insert a TF card into the slot and open a serial debug assistant. You will see the ESP32-C6-GEEK performing file operations (create, read, update, delete) on the TF card. It is suitable for learning TF card interaction on the ESP32-C6, performing various file operations, and testing stability and reliability.

Code

07_SD_Test.ino

#include "FS.h"
#include "SD.h"
#include "SPI.h"

//Uncomment and set up if you want to use custom pins for the SPI communication
#define REASSIGN_PINS
int sck = 19;
int miso = 20;
int mosi = 18;
int cs = 23;

void listDir(fs::FS &fs, const char *dirname, uint8_t levels) {
  Serial.printf("Listing directory: %s\n", dirname);

  File root = fs.open(dirname);
  if (!root) {
    Serial.println("Failed to open directory");
    return;
  }
  if (!root.isDirectory()) {
    Serial.println("Not a directory");
    return;
  }

  File file = root.openNextFile();
  while (file) {
    if (file.isDirectory()) {
      Serial.print("  DIR : ");
      Serial.println(file.name());
      if (levels) {
        listDir(fs, file.path(), levels - 1);
      }
    }else{
      Serial.print("  FILE: ");
      Serial.print(file.name());
      Serial.print("  SIZE: ");
      Serial.println(file.size());
    }
    file = root.openNextFile();
  }
}

void createDir(fs::FS &fs, const char *path) {
  Serial.printf("Creating Dir: %s\n", path);
  if (fs.mkdir(path)) {
    Serial.println("Dir created");
  }else{
    Serial.println("mkdir failed");
  }
}

void removeDir(fs::FS &fs, const char *path) {
  Serial.printf("Removing Dir: %s\n", path);
  if (fs.rmdir(path)) {
    Serial.println("Dir removed");
  }else{
    Serial.println("rmdir failed");
  }
}

void readFile(fs::FS &fs, const char *path) {
  Serial.printf("Reading file: %s\n", path);

  File file = fs.open(path);
  if (!file) {
    Serial.println("Failed to open file for reading");
    return;
  }

  Serial.print("Read from file: ");
  while (file.available()) {
    Serial.write(file.read());
  }
  file.close();
}

void writeFile(fs::FS &fs, const char *path, const char *message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if (file.print(message)) {
    Serial.println("File written");
  }else{
    Serial.println("Write failed");
  }
  file.close();
}

void appendFile(fs::FS &fs, const char *path, const char *message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if (!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if (file.print(message)) {
    Serial.println("Message appended");
  }else{
    Serial.println("Append failed");
  }
  file.close();
}

void renameFile(fs::FS &fs, const char *path1, const char *path2) {
  Serial.printf("Renaming file %s to %s\n", path1, path2);
  if (fs.rename(path1, path2)) {
    Serial.println("File renamed");
  }else{
    Serial.println("Rename failed");
  }
}

deleteFile(fs::FS &fs, const char *path) {
  Serial.printf("Deleting file: %s\n", path);
  if (fs.remove(path)) {
    Serial.println("File deleted");
  }else{
    Serial.println("Delete failed");
  }
}

void testFileIO(fs::FS &fs, const char *path) {
  File file = fs.open(path);
  static uint8_t buf[512];
  size_t len = 0;
  uint32_t start = millis();
  uint32_t end = start;
  if (file) {
    len = file.size();
    size_t flen = len;
    start = millis();
    while (len) {
      size_t toRead = len;
      if (toRead > 512) {
        toRead = 512;
      }
      file.read(buf, toRead);
      len -= toRead;
    }
    end = millis() - start;
    Serial.printf("%u bytes read for %lu ms\n", flen, end);
    file.close();
  }else{
    Serial.println("Failed to open file for reading");
  }

  file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }

  size_t i;
  start = millis();
  for (i = 0; i < 2048; i++) {
    file.write(buf, 512);
  }
  end = millis() - start;
  Serial.printf("%u bytes written for %lu ms\n", 2048 * 512, end);
  file.close();
}

void setup() {
  Serial.begin(115200);
  while (!Serial){
    delay(10);
  }

#ifdef REASSIGN_PINS
  SPI.begin(sck, miso, mosi, cs);
  if (!SD.begin(cs)) {
#else
  if (!SD.begin()) {
#endif
    Serial.println("Card Mount Failed");
    return;
  }
  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No TF card attached");
    return;
  }

  Serial.print("TF Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  }else{
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("TF Card Size: %lluMB\n", cardSize);

  listDir(SD, "/", 0);
  createDir(SD, "/mydir");
  listDir(SD, "/", 0);
  removeDir(SD, "/mydir");
  listDir(SD, "/", 2);
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  deleteFile(SD, "/foo.txt");
  renameFile(SD, "/hello.txt", "/foo.txt");
  readFile(SD, "/foo.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
}

void loop() {}

Code Analysis

Initialize serial communication, start the HSPI bus and set the clock divider, then attempt to initialize the TF card connected to specific pins. If successful, determine the TF card type and display its capacity. After that, perform a series of tests on file system operations on the TF card, such as listing directories, creating and deleting directories, reading and writing files, renaming files, and testing read/write performance, while outputting the total space and used space of the TF card.

  void setup() {
  Serial.begin(115200);
  while (!Serial){
    delay(10);
  }

#ifdef REASSIGN_PINS
  SPI.begin(sck, miso, mosi, cs);
  if (!SD.begin(cs)) {
#else
  if (!SD.begin()) {
#endif
    Serial.println("Card Mount Failed");
    return;
  }
  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No TF card attached");
    return;
  }

  Serial.print("TF Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  }else{
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("TF Card Size: %lluMB\n", cardSize);

  listDir(SD, "/", 0);
  createDir(SD, "/mydir");
  listDir(SD, "/", 0);
  removeDir(SD, "/mydir");
  listDir(SD, "/", 2);
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  deleteFile(SD, "/foo.txt");
  renameFile(SD, "/hello.txt", "/foo.txt");
  readFile(SD, "/foo.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
  }

08_SD_LCD

This example uses the TF card slot of the ESP32-C6-GEEK to read images from the TF card. After saving photo images to the TF card, insert the TF card into the slot. The ESP32-C6-GEEK can read the photos from the TF card and display them on the LCD. It is suitable for learning the interaction between the ESP32-C6, TF card, and TFT screen. You can read JPEG images from the TF card and display them on the screen, testing stability and reliability.

TF Card Preparation

Use a card reader to save the photos from the path .\ESP32-C6-GEEK-Demo\Arduino\pic onto the TF card, or save your own photos. For optimal display, modify the image size to 240×135.

Hardware Connection

Connect both ends of an SH1.0 3PIN cable to the development board and the voltage source under test.

The pin connected to GPIO6 on the development board is used to read the measured voltage.
The GND pin on the development board (the GND of the I2C or UART interface can be used) is connected to the GND pin of the voltage source under test, ensuring a common ground connection.

Code

08_SD_LCD.ino

#include <SPI.h>
#include <SD.h>
#include <JPEGDecoder.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include "OneButton.h"

#define PIN_INPUT 9
#define SD_CS   23   // Chip select pin
#define SD_MOSI 18  // MOSI pin
#define SD_MISO 20  // MISO pin
#define SD_SCK  19  // SCK pin

OneButton button(PIN_INPUT, true);

char click = 0;
int totalImages = 0;
String imageFiles[50]; // Store image filenames

SPIClass sdSPI(FSPI);

void setup() {
  Serial.begin(115200);

  sdSPI.begin(SD_SCK, SD_MISO, SD_MOSI, SD_CS);

  // Initialize the TF card
  if (!SD.begin(SD_CS,sdSPI)) {
    Serial.println("TF card initialization failed!") ;
    //return;
  }
  else{
      Serial.println("TF card initialized successfully.");
  }

  // Scan for image files on the TF card
  scanImageFiles();

  Config_Init();
  LCD_Init();
  LCD_Clear(BLACK);
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);

  // Display the first image (can be built-in or from the TF card)
  if (totalImages > 0) {
    showSDImage(0); // Display the first image from the TF card
  }else{
    Paint_DrawImage(gImage_pic1, 0, 0, 135, 240); // Display the built-in image
  }

  button.attachLongPressStart(LongPressStart, &button);
  button.attachClick(Click, &button);
  button.setLongPressIntervalMs(1000);
}

void loop() {
  button.tick();
  delay(10);
}

void LongPressStart(void *oneButton) {
  analogWrite(DEV_BL_PIN, 0);
}

void Click(void *oneButton) {
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
  click++;

  if (totalImages > 0) {
    // Use TF card images
    if (click >= totalImages) click = 0;
    showSDImage(click);
  }else{
    // Use built-in images
    if(click >= 4)click = 1;
    switch(click) {
      case 1:
        Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);
        break;
      case 2:
        Paint_DrawImage(gImage_pic2, 0, 0, 135, 240);
        break;
      case 3:
        Paint_DrawImage(gImage_pic3, 0, 0, 135, 240);
        break;
    }
  }
}

// Scan for image files on the TF card
void scanImageFiles() {
  File root = SD.open("/");
  totalImages = 0;

  while (File file = root.openNextFile()) {
    String fileName = file.name();
    if (fileName.endsWith(".jpg") || fileName.endsWith(".jpeg") || fileName.endsWith(".JPG")) {
      imageFiles[totalImages] = fileName;
      totalImages++;
      Serial.println("Found image: " + fileName);
      if (totalImages >= 50) break; // Store up to 50 filenames
    }
    file.close();
  }
  root.close();
  Serial.println("Found a total of " + String(totalImages) + " images.");
}

// Display JPEG image from TF card
void showSDImage(int index) {
  if (index < 0 || index >= totalImages) return;

  String filePath = "/" + imageFiles[index];
  Serial.println("Displaying image: " + filePath);

  File jpegFile = SD.open(filePath, FILE_READ);
  if (!jpegFile) {
    Serial.println("Cannot open file: " + filePath);
    return;
  }

  // Decode and display JPEG
  boolean decoded = JpegDec.decodeSdFile(filePath.c_str());

  if (decoded) {
    // Image information
    Serial.print("Image size: ");
    Serial.print(JpegDec.width);
    Serial.print(" x ");
    Serial.print(JpegDec.height);
    Serial.print(", MCU size: ");
    Serial.print(JpegDec.MCUWidth);
    Serial.print(" x ");
    Serial.println(JpegDec.MCUHeight);

    // Adjust image size to fit the screen
    renderJPEG();
  }else{
    Serial.println("JPEG decoding failed.");
  }

  jpegFile.close();
}

void renderJPEG() {
  uint16_t *pImg;
  uint16_t mcu_w = JpegDec.MCUWidth;
  uint16_t mcu_h = JpegDec.MCUHeight;
  uint32_t jpeg_width = JpegDec.width;
  uint32_t jpeg_height = JpegDec.height;

  Serial.print("270-degree rotation: ");
  Serial.print(jpeg_width);
  Serial.print(" x ");
  Serial.println(jpeg_height);

  uint16_t rotated_width = jpeg_height;   // 135
  uint16_t rotated_height = jpeg_width;   // 240

  uint16_t x_pos = (LCD_WIDTH - rotated_width) / 2;
  uint16_t y_pos = (LCD_HEIGHT - rotated_height) / 2;

  Paint_Clear(WHITE);

  while (JpegDec.read()) {
    pImg = JpegDec.pImage;

    uint16_t mcu_x = JpegDec.MCUx * mcu_w;
    uint16_t mcu_y = JpegDec.MCUy * mcu_h;

    for (int y = 0; y < mcu_h; y++) {
      for (int x = 0; x < mcu_w; x++) {
        uint16_t orig_x = mcu_x + x;
        uint16_t orig_y = mcu_y + y;

        if (orig_x >= jpeg_width || orig_y >= jpeg_height) continue;

        // Rotation formula:
        uint16_t screen_x = x_pos + (jpeg_height - orig_y - 1);
        uint16_t screen_y = y_pos + orig_x;

        if (screen_x < LCD_WIDTH && screen_y < LCD_HEIGHT) {
          uint16_t color = pImg[x + y * mcu_w];
          Paint_SetPixel(screen_x, screen_y, color);
        }
      }
    }
  }

  JpegDec.abort();
}

Code Analysis

Decode the JPEG image and draw it centered on the TFT display.

  void renderJPEG() {
  uint16_t *pImg;
  uint16_t mcu_w = JpegDec.MCUWidth;
  uint16_t mcu_h = JpegDec.MCUHeight;
  uint32_t jpeg_width = JpegDec.width;
  uint32_t jpeg_height = JpegDec.height;

  Serial.print("270-degree rotation: ");
  Serial.print(jpeg_width);
  Serial.print(" x ");
  Serial.println(jpeg_height);

  uint16_t rotated_width = jpeg_height;   // 135
  uint16_t rotated_height = jpeg_width;   // 240

  uint16_t x_pos = (LCD_WIDTH - rotated_width) / 2;
  uint16_t y_pos = (LCD_HEIGHT - rotated_height) / 2;

  Paint_Clear(WHITE);

  while (JpegDec.read()) {
    pImg = JpegDec.pImage;

    uint16_t mcu_x = JpegDec.MCUx * mcu_w;
    uint16_t mcu_y = JpegDec.MCUy * mcu_h;

    for (int y = 0; y < mcu_h; y++) {
      for (int x = 0; x < mcu_w; x++) {
        uint16_t orig_x = mcu_x + x;
        uint16_t orig_y = mcu_y + y;

        if (orig_x >= jpeg_width || orig_y >= jpeg_height) continue;

        // Rotation formula:
        uint16_t screen_x = x_pos + (jpeg_height - orig_y - 1);
        uint16_t screen_y = y_pos + orig_x;

        if (screen_x < LCD_WIDTH && screen_y < LCD_HEIGHT) {
          uint16_t color = pImg[x + y * mcu_w];
          Paint_SetPixel(screen_x, screen_y, color);
        }
      }
    }
  }

  JpegDec.abort();
}

09_BLE_LCD

This example enables Bluetooth BLE on the ESP32-C6-GEEK. Use a mobile phone to open a Bluetooth debug assistant, connect to the ESP32-C6-GEEK, and perform BLE communication with the phone. Messages sent and received are displayed on the LCD. It is suitable for learning how the ESP32-C6 interacts with BLE and LCD, acting as a BLE server to send/receive data and display it on the LCD, testing stability and reliability.

Code

09_BLE_LCD.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>

BLEServer *pServer = NULL;
BLECharacteristic * pTxCharacteristic;
bool deviceConnected = false;
bool oldDeviceConnected = false;
uint8_t txValue = 0;

#define SERVICE_UUID           "6E400001-B5A3-F393-E0A9-E50E24DCCA9E" // UART service UUID
#define CHARACTERISTIC_UUID_RX "6E400002-B5A3-F393-E0A9-E50E24DCCA9E"
#define CHARACTERISTIC_UUID_TX "6E400003-B5A3-F393-E0A9-E50E24DCCA9E"

class MyServerCallbacks: public BLEServerCallbacks {
    void onConnect(BLEServer *pServer) {
      deviceConnected = true;
    };

    void onDisconnect(BLEServer *pServer) {
      deviceConnected = false;
    }
};

class MyCallbacks: public BLECharacteristicCallbacks {
    void onWrite(BLECharacteristic *pCharacteristic) {
      String rxValue = pCharacteristic->getValue();
      if (rxValue.length() > 0) {
        Serial.println("***************");
        Serial.print("Received Value: ");
        for (int i = 0; i < rxValue.length(); i++)
          Serial.print(rxValue[i]);
        Serial.println();
        Serial.println("***************");
        const char *rxValue1 = rxValue.c_str();
        Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
        Paint_SetRotate(90);
        LCD_Clear(BLACK);
        Paint_DrawString_EN(0, 10, "***************", &Font24, BLACK, WHITE);
        Paint_DrawString_EN(0, 35, "Receive Value:", &Font24, BLACK, WHITE);
        Paint_DrawString_EN(0, 58, rxValue1, &Font20, BLACK, 0xfff0);
        Paint_DrawString_EN(0, 100, "***************", &Font24, BLACK, WHITE);
      }
    }
};

void sendBluetoothData(uint8_t *data, size_t length) {
  if (deviceConnected) {
    pTxCharacteristic->setValue(data, length);
    pTxCharacteristic->notify();
  }
}

void setup()
{
  Config_Init();
  LCD_Init();
  Serial.begin(115200);
  LCD_Clear(BLACK);
  LCD_SetBacklight(1000);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
  Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);
  // Create the BLE Device
  BLEDevice::init("Waveshare_ESP32C6_GEEK");
  // Create the BLE Server
  pServer = BLEDevice::createServer();
  pServer->setCallbacks(new MyServerCallbacks());
  // Create the BLE Service
  BLEService *pService = pServer->createService(SERVICE_UUID);
  // Create a BLE Characteristic
  pTxCharacteristic = pService->createCharacteristic(
										CHARACTERISTIC_UUID_TX,
										BLECharacteristic::PROPERTY_NOTIFY
									);

  pTxCharacteristic->addDescriptor(new BLE2902());

  BLECharacteristic * pRxCharacteristic = pService->createCharacteristic(
											 CHARACTERISTIC_UUID_RX,
											BLECharacteristic::PROPERTY_WRITE
										);

  pRxCharacteristic->setCallbacks(new MyCallbacks());
  // Start the service
  pService->start();
  // Start advertising
  pServer->getAdvertising()->start();
  Serial.println("Waiting a client connection to notify...");
}

void loop()
{
  // Read all available data from Serial and send it via BLE
  if (Serial.available() > 0) {
    String readBuff;
    char readBuff1[100];
    size_t bufferSize = 0;  // Current size of data in buffer

    while (Serial.available() > 0) {
      char input = Serial.read();
      readBuff += input;  // Store input in buffer
      bufferSize ++;
      // Check if the buffer is full, or a newline character is received
      if (input == '\n') {
        // Send the entire buffer via BLE
        int idx = readBuff.lastIndexOf("\r");
        readBuff = readBuff.substring(0,idx);
        sprintf(readBuff1,"%s",readBuff);
        sendBluetoothData((uint8_t*)readBuff1, (bufferSize - 2));
        Serial.println("***************");
        Serial.print("Send Value: ");
        Serial.print(readBuff1);
        Serial.println();
        Serial.println("***************");
        Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
        Paint_SetRotate(90);
        LCD_Clear(BLACK);
        Paint_DrawString_EN(0, 10, "***************", &Font24, BLACK, WHITE);
        Paint_DrawString_EN(0, 35, "Send Value:", &Font24, BLACK, WHITE);
        Paint_DrawString_EN(0, 58, readBuff1, &Font20, BLACK, 0xfff0);
        Paint_DrawString_EN(0, 100, "***************", &Font24, BLACK, WHITE);
        // Reset buffer and size for the next input
        bufferSize = 0;
        readBuff = "";
        memset(readBuff1, 0, sizeof(readBuff1));
      }
    }
  }

  // Your other low-power operations can be added here

  delay(10);  // Introduce a short delay for power efficiency

    // disconnecting
    if (!deviceConnected && oldDeviceConnected) {
        delay(500); // give the bluetooth stack the chance to get things ready
        pServer->startAdvertising(); // restart advertising
        Serial.println("start advertising");
        oldDeviceConnected = deviceConnected;
    }
    // connecting
    if (deviceConnected && !oldDeviceConnected) {
		// do stuff here on connecting
        oldDeviceConnected = deviceConnected;
    }
}

/*********************************************************************************************************
  END FILE
*********************************************************************************************************/

Operation Result

Waveshare_ESP32C6_GEEK in BLEDevice::init("Waveshare_ESP32C6_GEEK") is the Bluetooth name.

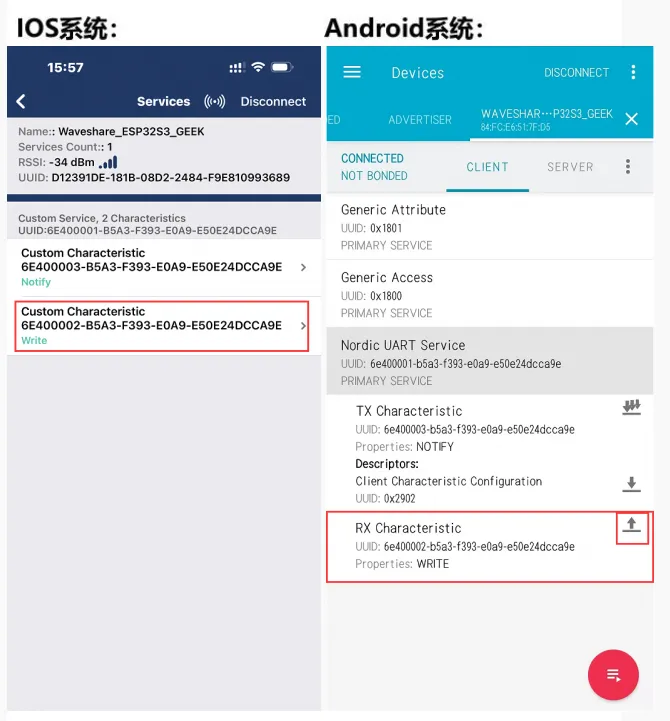

Use the mobile phone's Bluetooth debug assistant to scan and connect to the device.

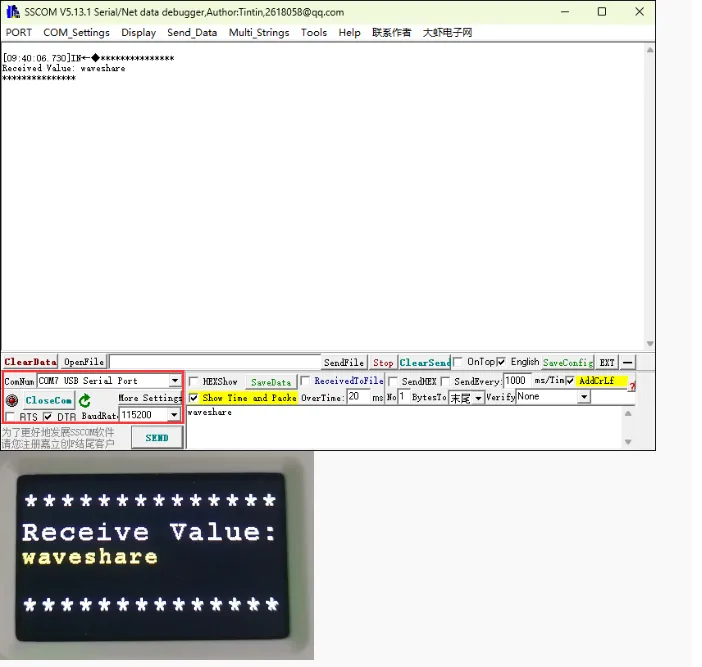

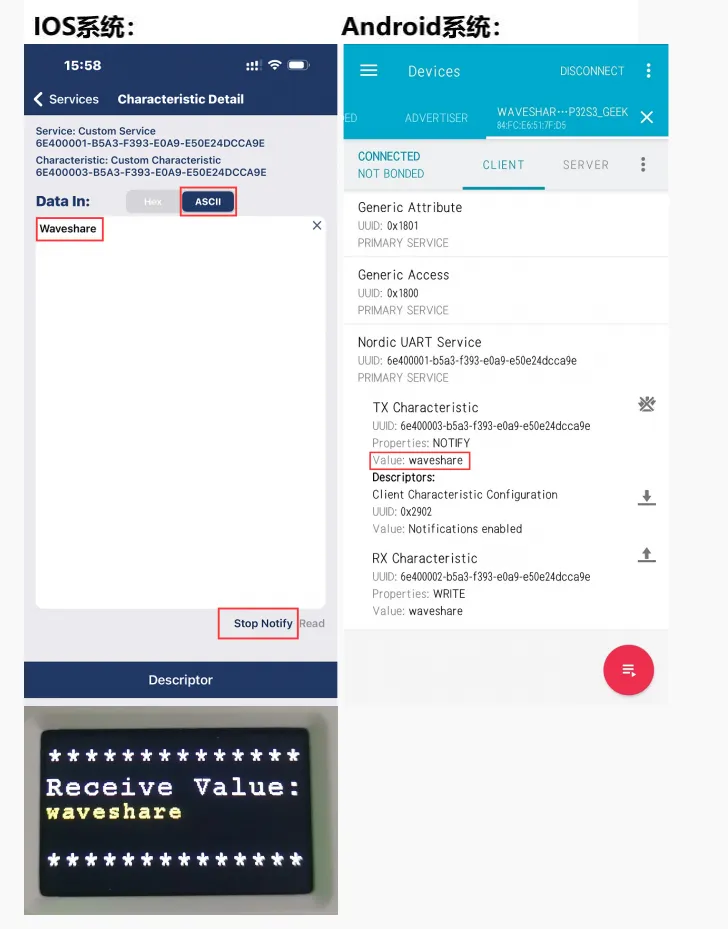

Use the mobile Bluetooth debug assistant to send a Bluetooth message to the ESP32-C6-GEEK. Upon receiving the message, the ESP32-C6-GEEK will display it on the LCD, and the serial debug assistant will print the message content.

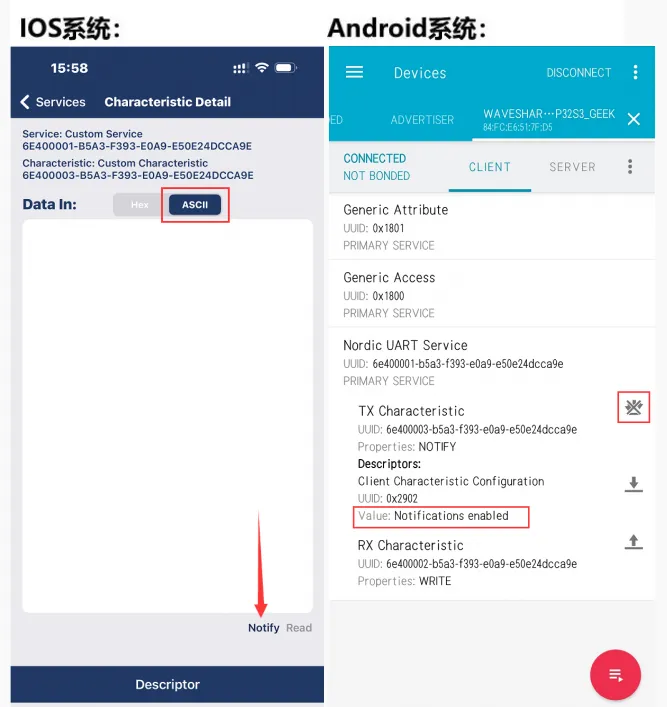

In the mobile Bluetooth debug assistant, open the receive settings. Connect the ESP32-C6-GEEK to a PC using a USB to UART adapter. Open a serial debug assistant on the PC. Send a serial message converted to a Bluetooth message to the phone. Note: When sending, check "AddCrLf". The sent message content will be displayed on the LCD. Observe on the mobile phone whether the Bluetooth message is received.

10_BLE_UART

This example enables Bluetooth BLE on the ESP32-C6-GEEK. Use a mobile phone to open a Bluetooth debug assistant, connect to the ESP32-C6-GEEK, and perform BLE communication with the phone. Messages sent and received are displayed via the serial port. The operation is the same as 09_BLE_LCD, but the LCD is not enabled. It uses UART to display message content, significantly reducing power consumption. For the operation procedure, please see 09_BLE_LCD.

11_BLE_Keyboard

This example allows the ESP32-C6-GEEK to be used as a Bluetooth keyboard. Connect the ESP32-C6-GEEK to a PC via Bluetooth to perform a series of single-key or key combination operations. It is suitable for simulating a BLE keyboard with the ESP32-C6-GEEK, sending text and key commands, and testing stability and reliability.
Press the Boot button to reboot and exit the program.

Code

11_BLE_Keyboard.ino

/**
 * This example turns the ESP32 into a Bluetooth LE keyboard that writes the words, presses Enter, presses a media key and then Ctrl+Alt+Delete
 */
#include <BleKeyboard.h>

BleKeyboard bleKeyboard("ESP32-C6-GEEK", "Waveshare", 100);

void setup() {
  Serial.begin(115200);
  Serial.println("Starting BLE work!");
  bleKeyboard.begin();
}

void loop() {
  if(bleKeyboard.isConnected()) {
    Serial.println("Sending 'Waveshare'...");
    bleKeyboard.print("waveshare");

    delay(500);

    Serial.println("Sending Enter key...");
    bleKeyboard.write(KEY_RETURN);

    delay(500);

    Serial.println("Sending Ctrl+Alt+Delete...");
    bleKeyboard.press(KEY_LEFT_CTRL);
    bleKeyboard.press(KEY_LEFT_ALT);
    bleKeyboard.press(KEY_DELETE);
    delay(100);
    bleKeyboard.releaseAll();
  }

  Serial.println("Waiting 5 seconds...");
  delay(5000);
}

Code Analysis

Bluetooth name

  BleKeyboard bleKeyboard("ESP32-C6-GEEK", "Waveshare", 100);

Check if the Bluetooth keyboard is connected. If connected:

Output the prompt "Sending 'Waveshare'..." to the serial port, then use the print method to send the string "Waveshare".
Output the prompt "Sending Enter key..." to the serial port, then use the write method to send the Enter key (KEY_RETURN).
Output the prompt "Sending Ctrl+Alt+Delete..." to the serial port. Press the left Ctrl, left Alt, and Delete keys in sequence, delay for 100 milliseconds, then release all keys.
Output the prompt "Waiting 5 seconds..." to the serial port, then delay for 5000 milliseconds, waiting for the next loop.

  void loop() {
  if(bleKeyboard.isConnected()) {
    Serial.println("Sending 'Waveshare'...");
    bleKeyboard.print("waveshare");

    delay(500);

    Serial.println("Sending Enter key...");
    bleKeyboard.write(KEY_RETURN);

    delay(500);

    Serial.println("Sending Ctrl+Alt+Delete...");
    bleKeyboard.press(KEY_LEFT_CTRL);
    bleKeyboard.press(KEY_LEFT_ALT);
    bleKeyboard.press(KEY_DELETE);
    delay(100);
    bleKeyboard.releaseAll();
  }

  Serial.println("Waiting 5 seconds...");
  delay(5000);
}

Operation Result

Use the PC to turn on Bluetooth, scan and connect to the device.

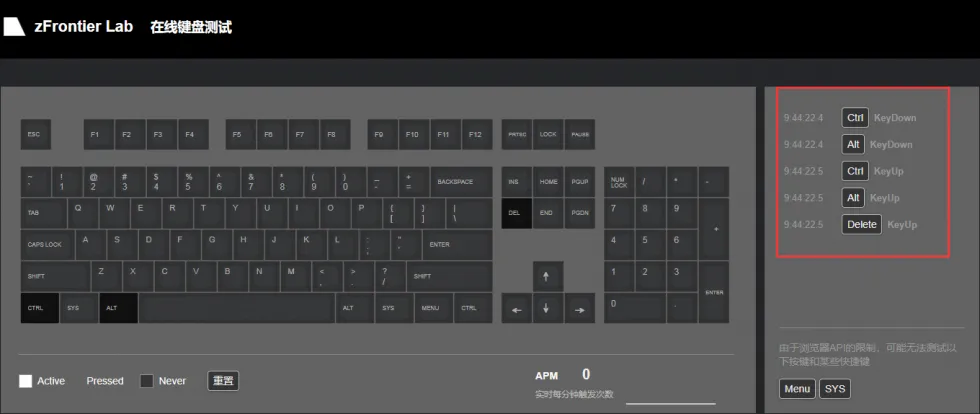

Once successfully connected, a series of keyboard operations (output "Waveshare", Ctrl+Alt+Delete) will be performed every 5 seconds.
Press the Boot button to reboot and exit the program.
You can view the values of individual keys in the BleKeyboard.h file located in the libraries folder.

12_WIFI_AP_LCD

This example enables the Wi-Fi AP mode on the ESP32-C6-GEEK. After a PC connects to its Wi-Fi, you can log in to the IP address and control the LCD display of the ESP32-C6-GEEK via a web interface to show images. It is suitable for learning how the ESP32-C6-GEEK interacts with Wi-Fi and LCD, acting as a Wi-Fi Access Point to communicate with clients and display content on the LCD, testing stability and reliability.

Code

12_WIFI_AP_LCD.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include "WIFI_Driver.h"

// Set these to your desired credentials.
const char *ssid = "ESP32-C6-GEEK";
const char *password = "Waveshare";

WiFiServer server(80);
WiFiClient client;

void setup()
{
  Config_Init();
  LCD_Init();
  Serial.begin(115200);
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(0x000f);

  WIFI_AP_Init();
}

void loop()
{
  WiFiClient client = server.available();   // listen for incoming clients
  WIFI_LCD_Control(client);
}

Code Analysis

Initialize related configurations and the LCD display.

Call WIFI_AP_Init() to initialize the Wi-Fi Access Point.

  void setup()
{
  Config_Init();
  LCD_Init();
  Serial.begin(115200);
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(0x000f);

  WIFI_AP_Init();
}

Monitor if any client connects to the server via WiFiClient client = server.available();.
Call the WIFI_LCD_Control(client) function to handle the connected client. This may perform operations related to LCD display, with specific functionality depending on the implementation of that function.
```
void loop()
{
  WiFiClient client = server.available();   // listen for incoming clients
  WIFI_LCD_Control(client);
}
```

Operation Result

The ssid is the AP name (ESP32-C6-GEEK) created by the ESP32-C6-GEEK, and the password is the password (Waveshare) to connect to the AP.

Use a PC to connect to the AP of the ESP32-C6-GEEK, and enter the password Waveshare.
If the program is successfully flashed but the PC cannot detect the Wi-Fi, power cycle the development board and try again.
The LCD will display the IP address of the HTTP server.

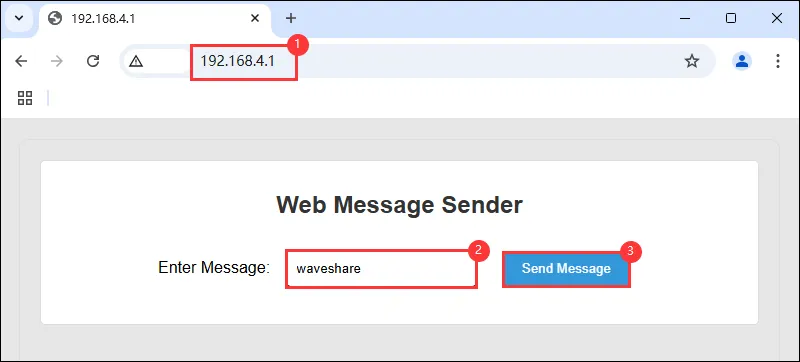

Use a browser to log in to the IP: 192.168.4.1. Control the LCD of the ESP32-C6-GEEK via buttons on the server. Press different buttons and observe the changes on the LCD. For more LCD display functions, refer to the LCD Program Description.

13_WIFI_TCP_Client

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to the same Wi-Fi network as a PC or mobile phone, it acts as a TCP Client to access a TCP Server created by the PC or phone, establishes TCP communication with them, and displays the received content on the LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. After connecting to Wi-Fi, it attempts to connect to a server, sends/receives data, and displays it on the LCD, testing stability and reliability.

Code Modification

Use a PC to open a hotspot, set the network band to "Any available frequency". Ensure the ssid and password in the program match the Wi-Fi name and password you want to connect to.
Download the Network Debug Assistant, and modify it to your local IP address (the following 192.168.137.1 is an example IP address).

Code

13_WIFI_TCP_Client.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include <WiFi.h>

const char *ssid = "WSTEST";
const char *password = "waveshare0755";

const IPAddress serverIP(192,168,137,7); //Address to be accessed
uint16_t serverPort = 8080;              //Server port number
WiFiClient client;                       // Declares a client object that is used to connect to the server

void intToIpAddress(uint32_t ip, char *result) {
    sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
}

void setup()
{
/************Each module is initialized***************/
    Config_Init();
    LCD_Init();
    Serial.begin(115200);
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
    Paint_SetRotate(90);
    LCD_Clear(0x000f);

    WiFi.mode(WIFI_STA);
    WiFi.setSleep(false); //Turn off wifi hibernation in STA mode to improve response speed
    WiFi.begin(ssid, password);
/**************Wait for WIFI connection***************/
    char point;
    char line = 60;
    while (WiFi.status() != WL_CONNECTED)
    {
        Paint_DrawString_EN(0, 5, "ESP32-C6-GEEK", &Font24, 0x000f, 0xfff0);
        Paint_DrawString_EN(0, 40, "Trying to connect", &Font20, 0x000f, 0xfff0);
        Paint_DrawString_EN(point, line, ".", &Font20, 0x000f, 0xfff0);
        point += 8;
        if(point >= 230)
        {
          line += 15;
          point = 0;
        }
        printf(".\r\n");
        delay(500);
    }
/******************WIFI is connected******************/
    LCD_Clear(0x000f);
    IPAddress myIP = WiFi.localIP();
    uint32_t ipAddress = WiFi.localIP();
    char ipAddressStr[16];
    intToIpAddress(ipAddress, ipAddressStr);
    Paint_DrawString_EN(0, 20, "Connected", &Font24, 0x000f, 0xfff0);
    Paint_DrawString_EN(0, 50, "MyIP:", &Font24, 0x000f, 0xfff0);
    Paint_DrawString_EN(80, 54, ipAddressStr, &Font16, 0x000f, 0xfff0);
    printf("Connected\r\n");
    printf("IP Address:");
    printf("%s\r\n", ipAddressStr);
}

void loop()
{
/***************Wait to connect server***************/
    Paint_DrawString_EN(0, 83, "Trying to access", &Font20, 0x000f, 0xfff0);
    printf("Trying to access the server\r\n");
/************Server connection successful************/
    if (client.connect(serverIP, serverPort)) //Attempting to access the target address
    {
        LCD_Clear(0x000f);
        Paint_DrawString_EN(0, 25, "ESP32-C6-GEEK", &Font24, 0x000f, 0xfff0);
        Paint_DrawString_EN(0, 65, "Access successful", &Font20, 0x000f, 0xfff0);
        printf("Access successful\r\n");
        client.print("Hello world!");                    //Send data to the server
/**************Receiving server message**************/
        while (client.connected() || client.available()) //If it is connected or has received unread data
        {
            if (client.available()) //If there is data to read
            {
                String line = client.readStringUntil('\r'); /// Reads data to a newline
                printf("Read the data:\r\n");
                printf("%s\r\n",line);
                client.write(line.c_str()); //Send back the received data
                LCD_Clear(0x000f);
                Paint_DrawString_EN(0, 10, "Received:", &Font24, 0x000f, 0xfff0);
                Paint_DrawString_EN(0, 33, line.c_str(), &Font20, 0x000f, 0xff00);
            }
        }

        printf("Close current connection\r\n");
        client.stop(); //Close the client
    }
    else
    {
        printf("Access failure\r\n");
        client.stop(); //Close the client
    }
    delay(5000);
}

/*********************************************************************************************************
  END FILE
*********************************************************************************************************/

Code Analysis

Use the sprintf function to convert the passed IP address integer into a string in dotted-decimal format and store it in the character array pointed to by the result pointer.
```
  void intToIpAddress(uint32_t ip, char *result) {
  sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
}
```

Operation Result

The LCD screen shows an attempt to connect, and after a few moments it shows that it is connected

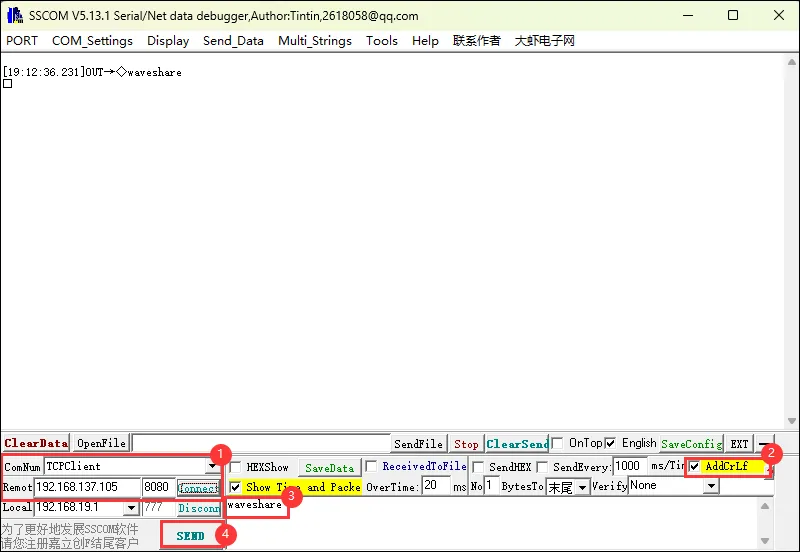

Modify the NetAssist parameters: set the protocol type to TCP Server, the local IP address to match the one in the program, and the local port to 8080. Click "Open" to establish a connection and TCP communication with the ESP32-C6-GEEK (TCP Client).

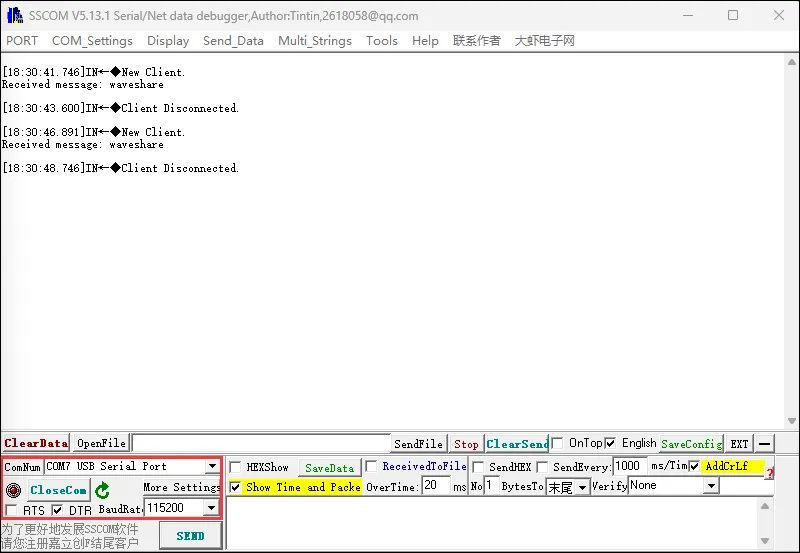

After a successful connection, the TCP Server will receive the TCP message "Hello world" sent by the ESP32-C6-GEEK, and the LCD will display "Access successful".
Send a TCP message from the PC-side TCP Server to the ESP32-C6-GEEK. If sent successfully, the ESP32-C6-GEEK, acting as a TCP Client, will receive the message and display its content on the LCD.
You can also use a mobile phone to open a hotspot. The hotspot name and password should be the same as above, and select the 2.4GHz band.
After opening the hotspot, use a TCP debug assistant on the phone to perform TCP communication with the ESP32-C6-GEEK.
Modify the serverIP in the code to the IP address (192.168.6.123) of the TCP server created by the mobile phone at last.
After flashing the code and a successful connection, the TCP Server will receive the TCP message "Hello world" sent by the ESP32-C6-GEEK, and the LCD will display "Access successful". You can send TCP messages from the mobile TCP Server to the ESP32-C6-GEEK. If sent successfully, the ESP32-C6-GEEK, acting as a TCP Client, will receive the message and display its content on the LCD.

14_WIFI_TCP_Server

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to a hotspot opened by a PC, it creates a TCP Server. The PC creates a TCP Client to access the ESP32-C6-GEEK, establishing TCP communication between them. The GEEK displays the received content on the LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. It acts as a Wi-Fi server, receives client data and displays it on the LCD, testing stability and reliability.

Code Modification

Use a PC to open a hotspot, set the network band to "Any available frequency". Ensure the ssid and password in the program match the Wi-Fi name and password you want to connect to.

Code

14_WIFI_TCP_Server.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include <WiFi.h>

const char *ssid = "WSTEST";
const char *password = "waveshare0755";
WiFiServer server; /// Declares the server object

void intToIpAddress(uint32_t ip, char *result) {
    sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
}

void setup()
{
/************Each module is initialized***************/
    Config_Init();
    LCD_Init();
    Serial.begin(115200);
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, 0x000f);
    Paint_SetRotate(90);
    LCD_Clear(0x000f);

    WiFi.mode(WIFI_STA);
    WiFi.setSleep(false); //Turn off wifi hibernation in STA mode to improve response speed
    WiFi.begin(ssid, password);
/**************Wait for WIFI connection***************/
    char point;
    char line = 60;
    while (WiFi.status() != WL_CONNECTED)
    {
        Paint_DrawString_EN(0, 5, "ESP32-C6-GEEK", &Font24, 0x000f, 0xfff0);
        Paint_DrawString_EN(0, 40, "Trying to connect", &Font20, 0x000f, 0xfff0);
        Paint_DrawString_EN(point, line, ".", &Font20, 0x000f, 0xfff0);
        point += 12;
        if(point >= 228)
        {
          line += 15;
          point = 0;
        }
        printf(".\r\n");
        delay(1000);
    }
    LCD_Clear(0x000f);
}

void loop()
{
/******************WIFI is connected******************/
    IPAddress myIP = WiFi.localIP();
    uint32_t ipAddress = WiFi.localIP();
    char ipAddressStr[16];
    intToIpAddress(ipAddress, ipAddressStr);
    printf("Connected\r\n");
    printf("IP Address:");
    printf("%s\r\n", ipAddressStr);
    server.begin(8080);
/***********Wait for the client to connect***********/
    WiFiClient client = server.available(); //Try to create a customer object
    Paint_DrawString_EN(0, 7, "Connected WIFI", &Font24, 0x000f, 0xfff0);
    Paint_DrawString_EN(0, 50, "IP:", &Font24, 0x000f, 0xfff0);
    Paint_DrawString_EN(55, 54, ipAddressStr, &Font16, 0x000f, 0xfff0);
    Paint_DrawString_EN(0, 90, "Trying to access", &Font20, 0x000f, 0xfff0);
    printf("Trying to access the server\r\n");
/************client connection successful************/
     if (client) //If current customer available
    {
      printf("[Client connected]\r\n");
      while (client.connected() || client.available()) //If it is connected or has received unread data
      {
        if (client.available()) //If there is data to read
        {
            String line = client.readStringUntil('\n'); // Read data from the client up to the newline character
            const char* charArray = line.c_str();       // Gets a string ending in '\n'
            // Removes the trailing return newline character
            int length = line.length();
            while (length > 0 && (line[length - 1] == '\r' || line[length - 1] == '\n')) {
                length--;
            }
            // Creates a new array of characters, excluding the return newline character
            char* modifiedCharArray = new char[length + 1];
            memcpy(modifiedCharArray, charArray, length);
            modifiedCharArray[length] = '\0'; // Add a null character to ensure that the character array ends in null

            LCD_Clear(0x000f);
            Paint_DrawString_EN(0, 10, "Received:", &Font24, 0x000f, 0xfff0);
            Paint_DrawString_EN(0, 33, modifiedCharArray, &Font20, 0x000f, 0xff00);
        }
      }
      client.stop();                                //End the current connection
      printf("[Client disconnected]\r\n");
    }
}

/*********************************************************************************************************
  END FILE
*********************************************************************************************************/

Code Analysis

Use the sprintf function to convert the passed IP address integer into a string in dotted-decimal format and store it in the character array pointed to by the result pointer.
```
  void intToIpAddress(uint32_t ip, char *result) {
  sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
}
```

Operation Result

After successful flashing, the LCD displays:
After Wi-Fi connection, the LCD will display the TCP Server IP. Open a TCP Client in a serial debug assistant to connect and communicate with the ESP32-C6-GEEK (TCP Server).
- ①. Modify the port name to "TCPClient", set the remote address to the IP displayed on the LCD screen, port 8080, and click Connect.
- ②. Check AddCrLf.
- ③. Enter the message.
- ①. Click Send.
After the message is sent successfully, the LCD screen displays:

15_WIFI_Web_Server

This example enables the AP mode of Wi-Fi on the ESP32-C6-GEEK. After a PC connects to its Wi-Fi, open a serial debug assistant. Send messages to the GEEK via the HTTP webpage created by the ESP32-C6-GEEK, and observe the received content on the serial debug assistant and LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. It acts as a Wi-Fi Access Point server, handles client requests, and tests stability and reliability.

Hardware Connection

Connect the UART interface of the ESP32-C6-GEEK to a PC using a USB to UART tool, and open a serial debug assistant.

Code

15_WIFI_Web_Server.ino

#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"
#include "WIFI_Driver.h"

// Set these to your desired credentials.
const char *ssid = "ESP32-C6-GEEK";
const char *password = "Waveshare";

WiFiServer server(80);
WiFiClient client;

void setup()
{
  Config_Init();
  LCD_Init();
  Serial.begin(115200);
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(0x000f);

  WIFI_AP_Init();
}

void loop()
{
  WiFiClient client = server.available();   // listen for incoming clients
  WIFI_Web_Server(client);
}

Code Analysis

Initialize related configurations and the LCD display.

Call WIFI_AP_Init() to initialize the Wi-Fi Access Point.

  void setup()
{
  Config_Init();
  LCD_Init();
  Serial.begin(115200);
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(0x000f);

  WIFI_AP_Init();
}

Operation Result

After successful flashing, use a PC to connect to the AP of the ESP32-C6-GEEK.
The LCD will display the IP address of the HTTP server. Use a browser to log in to the IP: 192.168.4.1.
Connect the UART interface of the ESP32-C6-GEEK to a PC using a USB to UART tool, and open a serial debug assistant.
You can enter text content on the HTTP Web page and send an HTTP request to the ESP32-C6-GEEK. The received content will be displayed on both the serial debug assistant and the LCD.

16_MQTT_sub_pub

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to Wi-Fi, it uses the Waveshare Cloud Platform for MQTT communication, subscribing to and publishing topics to achieve long-distance information transmission. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, MQTT, and LCD. It connects to Wi-Fi and an MQTT server, sends/receives JSON data and displays it on the LCD, testing stability and reliability.

Code

16_MQTT_sub_pub.ino

#include <ArduinoJson.h>
#include <Arduino.h>
#include <PubSubClient.h>
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"

#define MSG_BUFFER_SIZE (50)

// The name and password of the WiFi access point
#define STASSID "WSTEST" // Fill in your WIFI name
#define STAPSK  "waveshare0755" // Fill in your WIFI password

const char* mqtt_server = "mqtt.waveshare.cloud";
int PORT = 1883;

const char* ID = "9c1b5749";  // Defining device ID
char  pub[] = "Pub/1254/54/9c1b5749";      // MQTT release topic
char  sub[] = "Sub/1254/54/9c1b5749";      // MQTT subscribe to topics

StaticJsonDocument<400> sendJson;
StaticJsonDocument<400> readJson;

unsigned long lastUpdateTime = 0;
const char* ssid = STASSID;
const char* password = STAPSK;
char msg[MSG_BUFFER_SIZE];

WiFiClient espClient;
PubSubClient client(espClient);

const unsigned long updateInterval = 5000;

void setup() {
  Serial.begin(115200);

  Config_Init();
  LCD_Init();
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(BLACK);

  setup_wifi();
  client.setServer(mqtt_server, PORT);
  client.setCallback(callback);
}

void loop() {
  if (!client.connected()) {
    reconnect();
  }
  client.loop();
  if (millis() - lastUpdateTime > updateInterval) {  // Periodic data reporting
    sendJsonData();
    lastUpdateTime = millis();
  }
}

// MQTT subscribes to callback functions for processing received messages
void callback(char* topic, byte* payload, unsigned int length) {
  String inputString;
  for (int i = 0; i < length; i++) {
    inputString += (char)payload[i];
  }
  Serial.println(inputString);
  int dataBegin = inputString.indexOf("\"data\"");
  if (dataBegin == -1) {
    Serial.println(F("Missing 'data' field in JSON."));
    return;
  }
  int builtInBegin = inputString.indexOf("\"key\"", dataBegin); // Please change to your data identifier
  if (builtInBegin == -1) {
    Serial.println(F("Missing 'builtIn' field in 'data' object."));
    return;
  }
  int valueBegin = inputString.indexOf(':', builtInBegin);
  int valueEnd = inputString.indexOf('}', valueBegin);
  if (valueBegin == -1 || valueEnd == -1) {
    Serial.println(F("Invalid 'builtIn' value."));
    return;
  }
  String builtInValueStr = inputString.substring(valueBegin + 1, valueEnd);
  int builtInValue = builtInValueStr.toInt();
  if (builtInValue == 0) {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 55, "close!", &Font24, BLACK, GREEN);
    Serial.println("close!");
  }else{
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 55, "open!", &Font24, BLACK, GREEN);
    Serial.println("open!");
  }
}

void setup_wifi() {
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
}

// Reconnect to the MQTT server
void reconnect() {
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "MQTT Connecting...", &Font20, BLACK, GREEN);
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(ID)) {
      Serial.println("connected");
      // Subscribe to the topic when the connection is successful
      client.subscribe(sub);
    }else{
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "MQTT Connected", &Font20, BLACK, GREEN);
}

// Send data in JSON format to MQTT server
void sendJsonData() {
  sendJson["ID"] = ID;
  String pubres;
  serializeJson(sendJson, pubres);
  int str_len = pubres.length() + 1;
  char char_array[str_len];
  pubres.toCharArray(char_array, str_len);
  client.publish(pub, char_array);
}

Code Analysis

Convert the received byte array into a string inputString.
Find specific JSON fields within the string, such as "data" and "key" (these can be modified to specific data identifiers according to actual needs).

Extract the value of the "builtIn" field and perform different operations based on that value. If the value is 0, display "close!" on the LCD; otherwise, display "open!". Also output the corresponding information via the serial port.

void callback(char* topic, byte* payload, unsigned int length) {
  String inputString;
  for (int i = 0; i < length; i++) {
    inputString += (char)payload[i];
  }
  Serial.println(inputString);
  int dataBegin = inputString.indexOf("\"data\"");
  if (dataBegin == -1) {
    Serial.println(F("Missing 'data' field in JSON."));
    return;
  }
  int builtInBegin = inputString.indexOf("\"key\"", dataBegin); // Please change to your data identifier
  if (builtInBegin == -1) {
    Serial.println(F("Missing 'builtIn' field in 'data' object."));
    return;
  }
  int valueBegin = inputString.indexOf(':', builtInBegin);
  int valueEnd = inputString.indexOf('}', valueBegin);
  if (valueBegin == -1 || valueEnd == -1) {
    Serial.println(F("Invalid 'builtIn' value."));
    return;
  }
  String builtInValueStr = inputString.substring(valueBegin + 1, valueEnd);
  int builtInValue = builtInValueStr.toInt();
  if (builtInValue == 0) {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 55, "close!", &Font24, BLACK, GREEN);
    Serial.println("close!");
  }else{
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 55, "open!", &Font24, BLACK, GREEN);
    Serial.println("open!");
  }
}

Display "Wifi Connecting..." on the LCD.
Output the name of the Wi-Fi network being connected to via the serial port.

After a successful connection, clear the LCD screen and display "Wifi Connected", while also outputting the local IP address via the serial port.

void setup_wifi() {
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
}

Code Modification

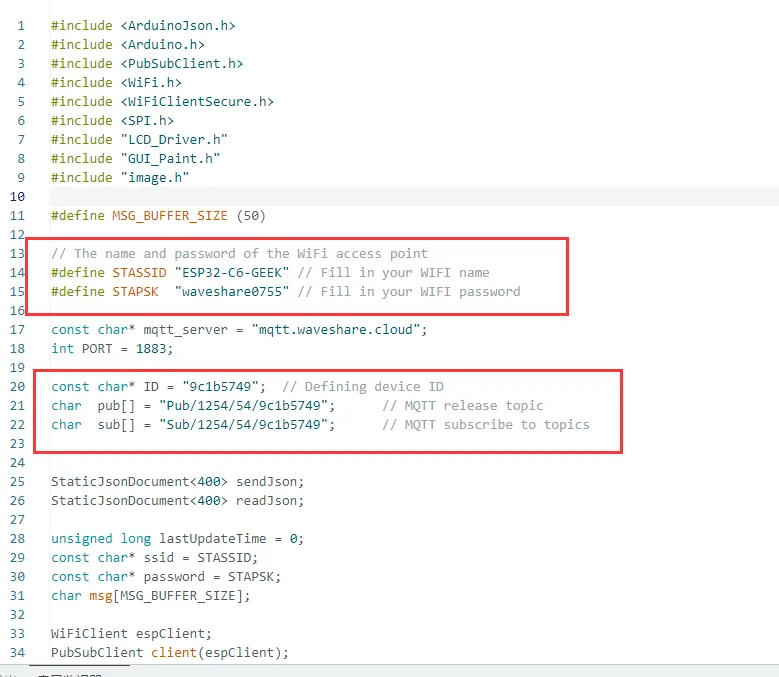

The hotspot name and password you open must match those in the code. After registering an account and creating a device on the Waveshare Cloud Platform, you can view the device's Client ID, Pub Topic, Sub Topic from the "View Address" of the newly created device on the platform. Write these into the example program for assignment, so the ESP32-C6-GEEK can connect to your own cloud platform device.

In the callback function, you can modify the recognized identifier to the device property identifier you created on the cloud platform.

Operation Result

Flash the code. After connecting to Wi-Fi, check if the device enters the online state on the Waveshare Cloud Platform. If not, try refreshing the webpage or using a USB to UART adapter to connect to a PC and view the Wi-Fi and MQTT connection status via a serial debug assistant. The connection status of Wi-Fi and MQTT will also be displayed on the LCD screen.

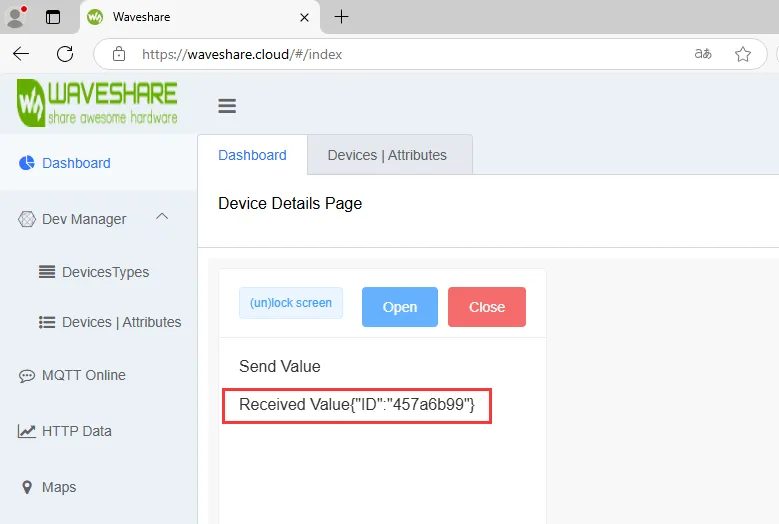

After the ESP32-C6-GEEK successfully connects to the Waveshare Cloud, you can send MQTT messages via the Dashboard.
We can see different feedback on the LCD and serial debug assistant for changes in the device property value (e.g., "key"). Also, in the device's received values on the Waveshare Cloud, we can see the data sent by the ESP32-C6-GEEK to the cloud device (the received value is your own Client ID; you can later send back the return value of "key" or status to the Waveshare Cloud). This achieves MQTT data uplink and downlink, topic subscription and publication.

17_MQTT_BLE_Keyboard

This example enables the STA mode of Wi-Fi and Bluetooth on the ESP32-C6-GEEK. After connecting to Wi-Fi and Bluetooth, it uses the Waveshare Cloud Platform to achieve remote Bluetooth screen locking and password input for unlocking, with more key combinations awaiting your development. It is suitable for integrating BLE keyboard, Wi-Fi, and MQTT on the ESP32-C6-GEEK, controlling LCD display, and testing stability and reliability.

Code

17_MQTT_BLE_Keyboard.ino

#include <BleKeyboard.h>
#include <WiFi.h>
#include <PubSubClient.h>
#include <SPI.h>
#include "LCD_Driver.h"
#include "GUI_Paint.h"
#include "image.h"

// WiFi credentials
#define  SSID      "ESP32-C6-GEEK"     // Fill in your WIFI name
#define  PASSWORD  "Waveshare0755"         // Fill in your WIFI password

// MQTT configuration
const char*  MQTT_SERVER = "mqtt.waveshare.cloud";
const int    MQTT_PORT   = 1883;

const char*  Client_ID   = "a88e9fae";    // Defining device ID
const char*  Sub_Topic   = "Sub/459/54/a88e9fae";    // MQTT subscribe to topics

// BLE keyboard configuration
BleKeyboard bleKeyboard("ESP32-C6-GEEK", "Waveshare", 100);

// WiFi and MQTT clients
WiFiClient espClient;
PubSubClient client(espClient);

// Function prototypes
void setupWiFi();
void setupMQTT();
void setupBLE();
void reconnect();
void Screen_ON();
void Screen_OFF();
void callback(char* topic, byte* payload, unsigned int length);

void setup() {
  // Initialize Serial communication
  Serial.begin(115200);

  //Initialize the LCD screen
  Config_Init();
  LCD_Init();
  LCD_SetBacklight(100);
  Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
  Paint_SetRotate(90);
  LCD_Clear(BLACK);

  // Setup components
  setupWiFi();
  setupMQTT();
  setupBLE();
}

void loop() {
  // Wait for BLE keyboard connection
  while (!bleKeyboard.isConnected()) {
    delay(500);
    Serial.print(".");
  }

  // Reconnect to MQTT if necessary
  if (!client.connected()) {
    reconnect();
  }

  // Handle MQTT messages
  client.loop();
}

// Function to initialize WiFi connection
void setupWiFi() {
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  Serial.print("Connecting to WiFi: ");
  WiFi.setSleep(true);
  WiFi.begin(SSID, PASSWORD);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("\nWiFi connected");
  Serial.println("IP address: " + WiFi.localIP().toString());
}

// Function to initialize MQTT connection
void setupMQTT() {
  client.setServer(MQTT_SERVER, MQTT_PORT);
  client.setCallback(callback);
}

// Function to initialize BLE keyboard
void setupBLE() {
  bleKeyboard.begin();
  Serial.println("BLE keyboard initialized");
}

// Message callback function
void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.println("] ");
  String payloadString = "";
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
    payloadString += (char)payload[i];
  }

  int keyPosition = payloadString.indexOf("\"key\"");                           // Locate to "key", If your identifier is not "key", change it to your own!
  char keyChar1 = payloadString.charAt(keyPosition + (strlen("\"key\"")+1));    // extract the first digit of the "key" value
  // char keyChar2 = payloadString.charAt(keyPosition + (strlen("\"key\"")+2)); // If the extracted value is greater than one digit, add another digit

  if (keyChar1 == '1') Screen_ON();
  else Screen_OFF();
}

void reconnect() {
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "MQTT Connecting...", &Font20, BLACK, GREEN);
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (client.connect(Client_ID)) {
      Serial.println("Connected to MQTT");
      client.subscribe(Sub_Topic);
    }else{
      Serial.println("Failed, rc=" + String(client.state()) + " trying again in 5 seconds");
      delay(5000);
    }
  }
  LCD_Clear(BLACK);
  Paint_DrawString_EN(20, 50, "MQTT Connected", &Font20, BLACK, GREEN);
}

void Screen_ON(){
  LCD_Clear(BLACK);
  Paint_DrawString_EN(15, 20, "open screen:", &Font24, BLACK, GREEN);
  Paint_DrawString_EN(15, 65, "Enter          ", &Font20, BLACK, GREEN);
  Serial.println("Screen ON");
  delay(100);
  Serial.println("Enter");
  bleKeyboard.write(KEY_RETURN);    // Enter
  delay(1000);
  Paint_DrawString_EN(15, 65, "Waveshare          ", &Font20, BLACK, GREEN);
  bleKeyboard.print("waveshare");   // Keyboard output "Waveshare", please change it to your open screen password!
  delay(500);
  bleKeyboard.write(KEY_RETURN);    // Enter
}

void Screen_OFF(){
  LCD_Clear(BLACK);
  Paint_DrawString_EN(15, 20, "close screen:", &Font24, BLACK, GREEN);
  Paint_DrawString_EN(15, 65, "Ctrl+Alt+Delete", &Font20, BLACK, GREEN);
  Serial.println("Screen OFF");
  bleKeyboard.press(KEY_LEFT_CTRL); // Ctrl
  bleKeyboard.press(KEY_LEFT_ALT);  // Alt
  bleKeyboard.press(KEY_DELETE);    // Delete
  delay(100);
  bleKeyboard.releaseAll();         // Press together
  delay(500);
  Paint_DrawString_EN(15, 65, "Enter          ", &Font20, BLACK, GREEN);
  Serial.println("Enter");
  bleKeyboard.write(KEY_RETURN);    // Enter
}

Code Analysis

Acts as the callback function for MQTT subscription, used to process received messages.
Prints the topic of the received message, then converts the received byte array into a string.
Finds the specific JSON field "key" within the string. If your identifier is not "key", you need to modify the code.

Extracts the value of the "key" field, and calls the Screen_ON or Screen_OFF function depending on whether the value is "1" or something else.

  void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.println("] ");
  String payloadString = "";
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
    payloadString += (char)payload[i];
  }

  int keyPosition = payloadString.indexOf("\"key\"");                           // Locate to "key", If your identifier is not "key", change it to your own!
  char keyChar1 = payloadString.charAt(keyPosition + (strlen("\"key\"")+1));    // extract the first digit of the "key" value
  // char keyChar2 = payloadString.charAt(keyPosition + (strlen("\"key\"")+2)); // If the extracted value is greater than one digit, add another digit

  if (keyChar1 == '1') Screen_ON();
  else Screen_OFF();
}

Outputs the name of the Wi-Fi network being connected to via the serial port.
Sets the Wi-Fi mode to STA (client mode) and attempts to connect using the specified SSID and password.
During the connection process, continuously outputs connection status information via the serial port in a loop until the connection is successful.

After a successful connection, clear the LCD screen and display "Wifi Connected", while also outputting the local IP address via the serial port.

  void setupWiFi() {
  Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
  Serial.print("Connecting to WiFi: ");
  WiFi.setSleep(true);
  WiFi.begin(SSID, PASSWORD);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  LCD_Clear(BLACK);docs
  Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
  Serial.println("\nWiFi connected");
  Serial.println("IP address: " + WiFi.localIP().toString());
}

Code Modification

The hotspot name and password you open must match those in the code (2.4GHz or Any available frequency). After registering an account and creating a device on the Waveshare Cloud Platform, you can view the device's Client ID, Sub Topic from the "View Address" of the newly created device on the platform. Write these into the example program for assignment, so the ESP32-C6-GEEK can connect to your own cloud platform device.
The Bluetooth name and password you connect to must match those in the code.
In the callback function, you can modify the recognized identifier to the device property identifier you created on the cloud platform.
Modify to the text or password you want to input.

Operation Result

Flash the code. After connecting to Wi-Fi, turn on the PC's Bluetooth function to pair and connect the device. Check if the device enters the online state on the Waveshare Cloud Platform. If not, try refreshing the webpage or using a USB to UART adapter to connect to a PC and view the Wi-Fi and MQTT connection status via a serial debug assistant. The connection status of Wi-Fi and MQTT will also be displayed on the LCD screen.
After the ESP32-C6-GEEK successfully connects to the Waveshare Cloud, you can log in to the Waveshare Cloud Dashboard via a mobile phone for remote control.
We can see different feedback on the LCD and serial debug assistant for changes in the device property value (e.g., "key"). Later, you can also modify the keys in the callback function to combinations like Ctrl+C, Ctrl+V, etc., to DIY your own remote-control Bluetooth keyboard.
You can also test which keys are pressed by the Bluetooth control of the ESP32-C6-GEEK using the Keyboard Tester website.
Open the keyboard tester interface on your PC, control it via your mobile phone, and the keyboard tester interface will display which keys are being pressed.

Arduino Getting Started Tutorial​

Setting Up Development Environment​

1. Installing and Configuring Arduino IDE​

2. Installing Libraries​

3. Other Tips​

Demo​

01_OneButton​

Code​

Code Analysis​

02_ADC_Read​

Hardware Connection​

Code​

Code Analysis​

03_IIC_BME68X_Sensor​

Hardware Connection​

Code​

Code Analysis​

04_UART0​

Hardware Connection​

Code​

Code Analysis​

05_LCD_Button​

Code​

Code Analysis​

06_LCD_Time​

Additional Preparation​

Code​

Code Analysis​

07_SD_Test​

Code​

Code Analysis​

08_SD_LCD​

TF Card Preparation​

Hardware Connection​

Code​

Code Analysis​

09_BLE_LCD​

Code​

Operation Result​

10_BLE_UART​

11_BLE_Keyboard​

Code​

Code Analysis​

Operation Result​

12_WIFI_AP_LCD​

Code​

Code Analysis​

Operation Result​

13_WIFI_TCP_Client​

Code Modification​

Code​

Code Analysis​

Operation Result​

14_WIFI_TCP_Server​

Code Modification​

Code​

Code Analysis​

Operation Result​

15_WIFI_Web_Server​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

16_MQTT_sub_pub​

Code​

Code Analysis​

Code Modification​

Operation Result​

17_MQTT_BLE_Keyboard​

Code​

Code Analysis​

Code Modification​

Operation Result​

Arduino Getting Started Tutorial

Setting Up Development Environment

1. Installing and Configuring Arduino IDE

2. Installing Libraries

3. Other Tips

Demo

01_OneButton

Code

Code Analysis

02_ADC_Read

Hardware Connection

Code

Code Analysis

03_IIC_BME68X_Sensor

Hardware Connection

Code

Code Analysis

04_UART0

Hardware Connection

Code

Code Analysis

05_LCD_Button

Code

Code Analysis

06_LCD_Time

Additional Preparation

Code

Code Analysis

07_SD_Test

Code

Code Analysis

08_SD_LCD

TF Card Preparation

Hardware Connection

Code

Code Analysis

09_BLE_LCD

Code

Operation Result

10_BLE_UART

11_BLE_Keyboard

Code

Code Analysis

Operation Result

12_WIFI_AP_LCD

Code

Code Analysis

Operation Result

13_WIFI_TCP_Client

Code Modification

Code

Code Analysis

Operation Result

14_WIFI_TCP_Server

Code Modification

Code

Code Analysis

Operation Result

15_WIFI_Web_Server

Hardware Connection

Code

Code Analysis

Operation Result

16_MQTT_sub_pub

Code

Code Analysis

Code Modification

Operation Result

17_MQTT_BLE_Keyboard

Code

Code Analysis

Code Modification

Operation Result
