ESP-IDF Getting Started Tutorial​

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting up the Development Environment​

info

For the ESP32-S3-AMOLED-1.91 development board, it is recommended to use ESP-IDF V5.5.0 or higher.

note

The following guide uses Windows as an example, demonstrating development using VS Code + the ESP-IDF extension. macOS and Linux users should refer to the official documentation.

Install the ESP-IDF Development Environment​

  1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

    Click the Offline Installer tab on the page, then select Windows as the operating system and choose your desired version from the filter bar.

    Download EIM and offline package

    After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).

    Download EIM and offline package 2

    Please wait for both files to finish downloading.

  2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

    The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.

    Auto-detect offline package

    Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.

    Select installation path

  3. When you see the following screen, the ESP-IDF installation is successful.

    Installation successful

  4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.

    Install drivers via ESP-IDF Installation Manager

Install Visual Studio Code and the ESP-IDF Extension​

  1. Download and install Visual Studio Code.

  2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

  3. In VS Code, click the Extensions icon Extensions Icon in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

  4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.

    Search and install ESP-IDF extension in VS Code

  5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

Demo​

The ESP-IDF demo is located in the ESP-IDF directory of the [https://github.com/waveshareteam/ESP32-C6-Touch-LCD-1.83/tree/main/examples demo] package.

DemoBasic Program DescriptionDependency Library
01_ADC_TestGet the voltage value of the lithium battery-
02_I2C_QMI8658Prints the raw attitude data from the QMI chip-
03_LVGL_V8_TestLVGLV8 demoLVGL V8.4.0
04_SD_CardLoad and display the information of the TF card-
05_WIFI_STASet to STA mode to connect to WiFi and obtain an IP address-
06_WIFI_APSet to AP mode to obtain the IP address of the access device-
07_FactoryProgramComprehensive demo-

01_ADC_Test​

Demo Description

  • The analog voltage connected through the GPIO is converted to digital by the ADC, and then the actual lithium battery voltage is calculated and printed to the terminal.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Analysis

  • adc_bsp_init(void): Initializes ADC1, including creating an ADC one-shot trigger unit and configuring Channel 0 of ADC1.
  • adc_get_value(float *value): Reads the value from Channel 0 of ADC1, calculates the corresponding voltage based on the reference voltage and resolution, and stores it at the location pointed to by the passed pointer. Stores 0 if the read fails.
  • adc_example(void* parmeter): After initializing the ADC, in an infinite loop, read the value of the ADC channel on GPIO1, print the original ADC value, and calculate the system voltage value, performing this operation once every second.

Operation Result

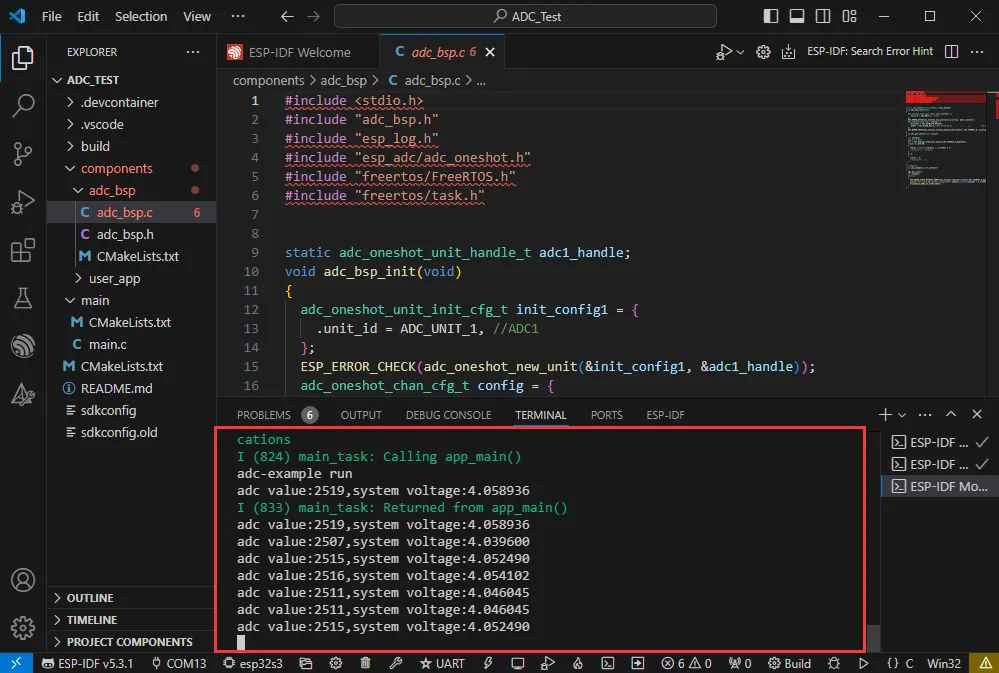

  • After the program is compiled and downloaded, you can view the printed ADC values and voltage output by opening the Serial Monitor, as shown in the following image:

02_I2C_QMI8658​

Demo Description

  • Uses the I2C protocol to initialize the QMI8658 chip, read attitude data at intervals, and print it to the terminal.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Analysis

  • qmi8658c_example(void* parmeter): This function initializes the QMI8658 device. Within an infinite loop, it reads and prints accelerometer, gyroscope, and temperature data once per second.

Operation Result

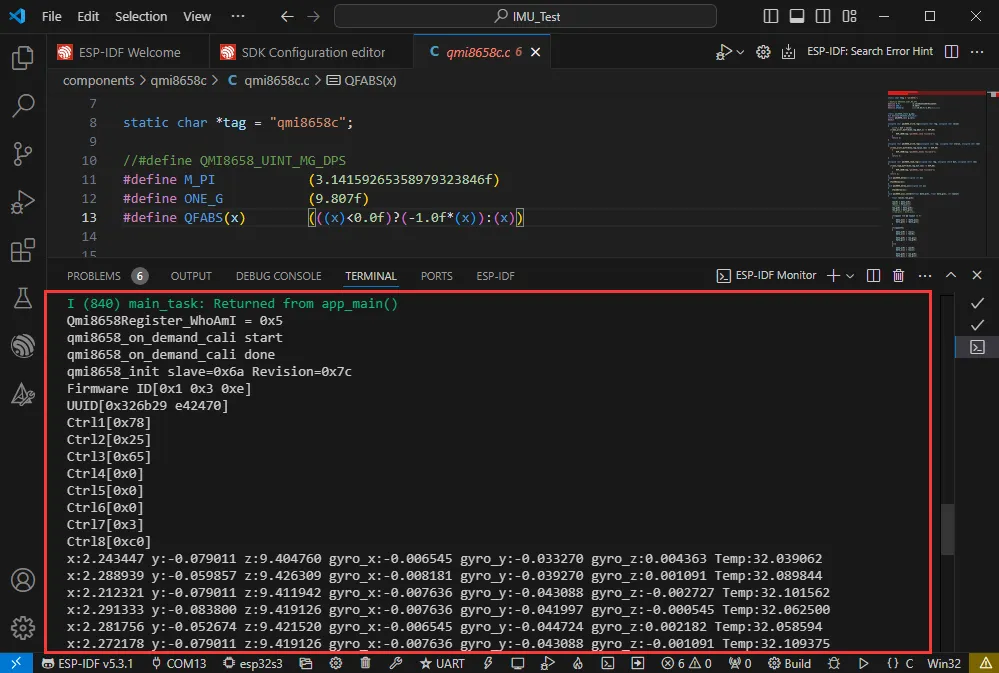

  • After the program is compiled, downloaded, and running, open the Serial Monitor to see the attitude data sent by the QMI chip (Euler angles require conversion by the user), as shown below:

03_LVGL_V8_Test​

Demo Description

  • Developed based on LVGL 8 adaptation to help users get started with LVGL V8 quickly.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Analysis

/*Here is the initialization code for the landscape mode.*/
#define EXAMPLE_LCD_H_RES 536
#define EXAMPLE_LCD_V_RES 240
static const sh8601_lcd_init_cmd_t lcd_init_cmds[] = {
  {0x11, (uint8_t []){0x00}, 0, 120},
  {0x36, (uint8_t []){0xF0}, 1, 0},
  {0x3A, (uint8_t []){0x55}, 1, 0},
  {0x2A, (uint8_t []){0x00,0x00,0x02,0x17}, 4, 0},
  {0x2B, (uint8_t []){0x00,0x00,0x00,0xEF}, 4, 0},
  {0x51, (uint8_t []){0x00}, 1, 10},
  {0x29, (uint8_t []){0x00}, 0, 10},
  {0x51, (uint8_t []){0xFF}, 1, 0},
};
/*Here is the initialization code for the portrait mode.*/
#define EXAMPLE_LCD_H_RES 240
#define EXAMPLE_LCD_V_RES 536
static const sh8601_lcd_init_cmd_t lcd_init_cmds[] = {
  {0x11, (uint8_t []){0x00}, 0, 120},
  {0x3A, (uint8_t []){0x55}, 1, 0},
  {0x2A, (uint8_t []){0x00,0x00,0x02,0x17}, 4, 0},
  {0x2B, (uint8_t []){0x00,0x00,0x00,0xEF}, 4, 0},
  {0x51, (uint8_t []){0x00}, 1, 10},
  {0x29, (uint8_t []){0x00}, 0, 10},
  {0x51, (uint8_t []){0xFF}, 1, 0},
};

Code Compatibility Notice

  • For boards without touch: In the main file, find EXAMPLE_USE_TOUCH and change the value from 1 to 0.
  • For boards with touch: In the main file, find EXAMPLE_USE_TOUCH and change the value from 0 to 1.
    #define EXAMPLE_USE_TOUCH  0

Operation Result

  • After the program is compiled and flashed, as shown in the figure:

04_SD_Card​

Demo Description

  • Drive the TF card through SDMMC, and print the TF card information to the terminal after successfully mounting.

Hardware Connection

  • Install a FatFs-formatted into the board before powering on

Code Analysis

  • SD_card_Init(void): This function initializes the TF card based on different configurations, including setting mount parameters, host, and slot parameters. It then attempts to mount the TF card and, if successful, prints the card information and capacity.

Code Compatibility Notice

  • For V1 boards: The macro definition VersionControl_V2 needs to be commented out. It is enabled by default.
    #define VersionControl_V2
    #define SDlist "/sd_card" // Directory, acting as a standard path
    #ifdef VersionControl_V2
      #define PIN_NUM_D0    (gpio_num_t)8
      #define PIN_NUM_CMD   (gpio_num_t)42
      #define PIN_NUM_CLK   (gpio_num_t)9
    #else
      #define PIN_NUM_MISO  (gpio_num_t)8
      #define PIN_NUM_MOSI  (gpio_num_t)42
      #define PIN_NUM_CLK   (gpio_num_t)47
      #define PIN_NUM_CS    (gpio_num_t)9
      #define SD_SPI SPI3_HOST
    #endif

Operation Result

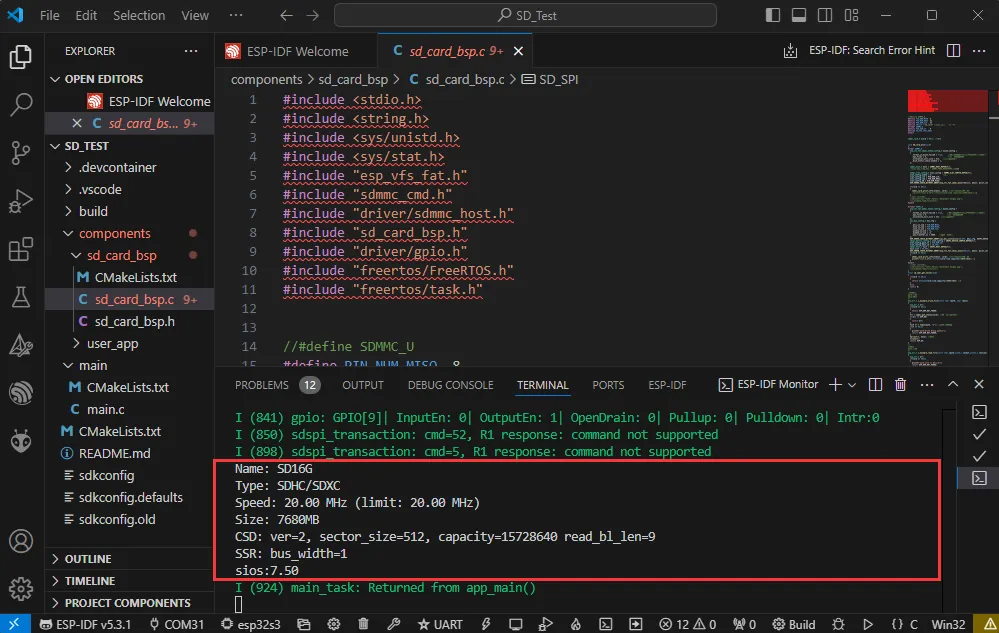

  • Click on the serial port monitoring device, you can see the output information of the TF card, as shown in the figure below:

05_WIFI_STA​

Demo Description

  • This example can configure the development board as a STA device to connect to a router, thereby enabling access to the system network.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Analysis

  • In the file esp_wifi_bsp.c, find ssid and password, then modify them to the SSID and Password of an available router in your current environment.

    wifi_config_t wifi_config = {
      .sta = {
      	.ssid = "PDCN",
      	.password = "1234567890",
      },
    };

Operation Result

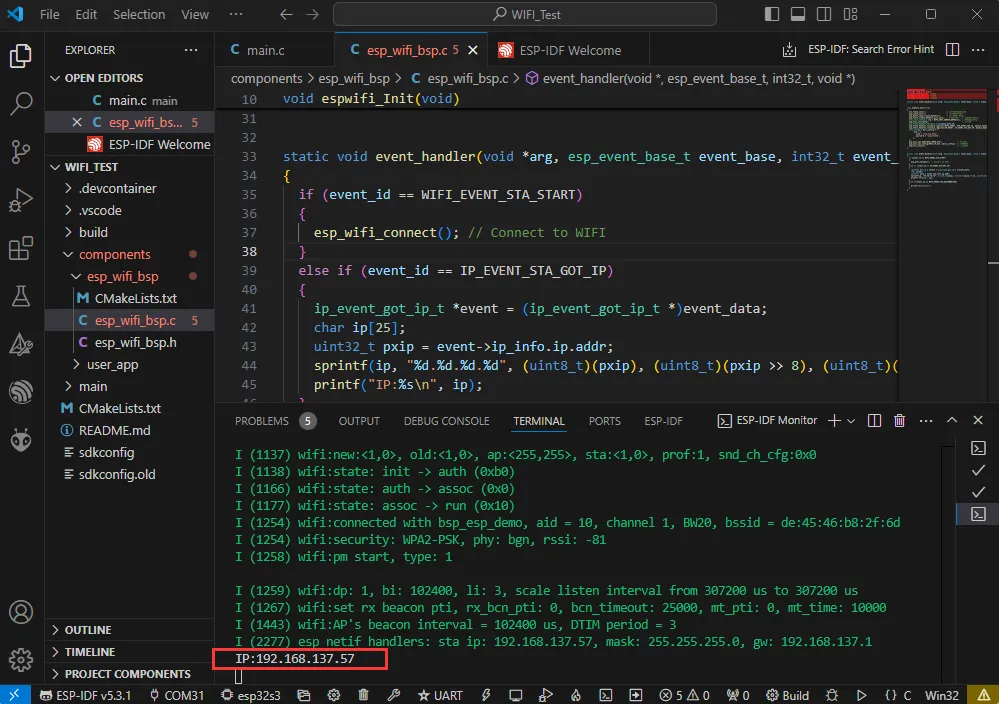

  • After flashing the program, open the serial terminal, if the device is successfully connected to the hotspot, the IP address obtained will be output, as shown in the figure:

06_WIFI_AP​

Demo Description

  • This demo can set the development board as a hotspot, allowing phones or other devices in STA mode to connect to the development board.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Analysis

  • In the file softap_example_main.c, find SSID and PASSWORD, and then your phone or other device in STA mode can use the SSID and PASSWORD to connect to the development board.

    #define EXAMPLE_ESP_WIFI_SSID      "waveshare_esp32"
    #define EXAMPLE_ESP_WIFI_PASSWORD      "wav123456"

Operation Result

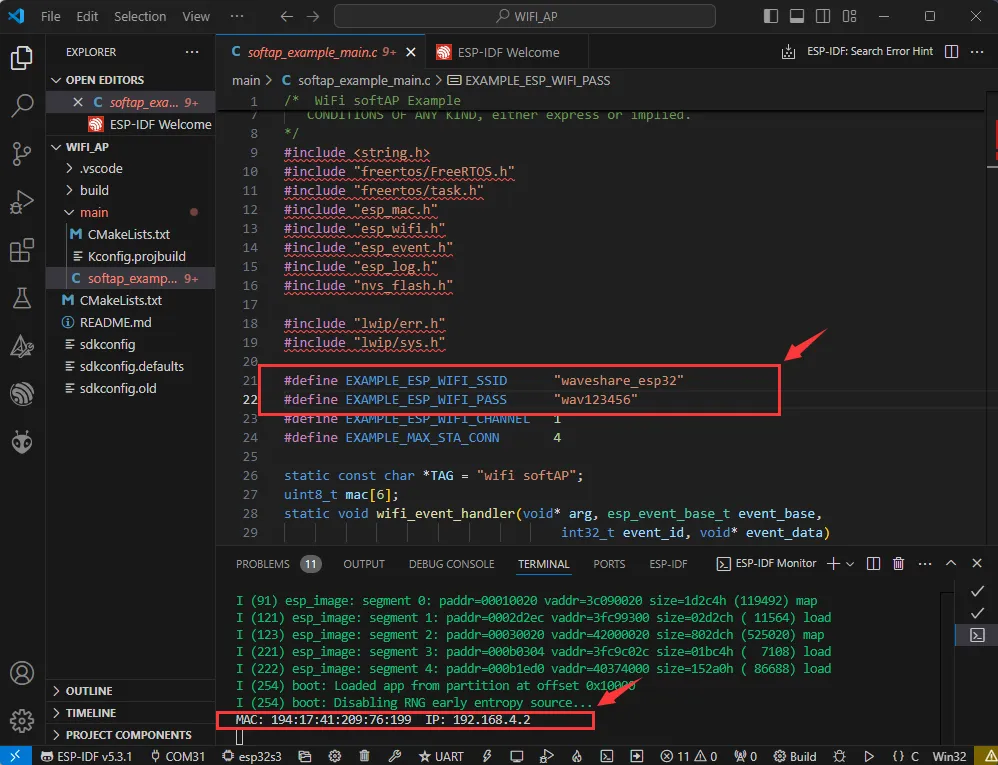

  • After flashing the program, open the serial terminal, if the device is successfully connected to the hotspot, the MAC address and IP address of the device will be output, as shown in the figure:

07_FactoryProgram​

Demo Description

  • The driver board integrates all hardware components and provides comprehensive examples, enabling users to quickly understand the product.

Hardware Connection

  • Connect the board to the computer using a USB cable

Code Compatibility Notice

  • For boards without touch: In the main file, find EXAMPLE_USE_TOUCH and change the value from 1 to 0.
  • For boards with touch: In the main file, find EXAMPLE_USE_TOUCH and change the value from 0 to 1.
    #define EXAMPLE_USE_TOUCH  0

Operation Result

  • After the program is flashed, the main interface is displayed, as shown in the figure:

    tip
    1. Touch versions support switching via the BOOT button or touch.
    2. Use the BOOT button on the side of the board to switch pages; the analog clock interface appears first.

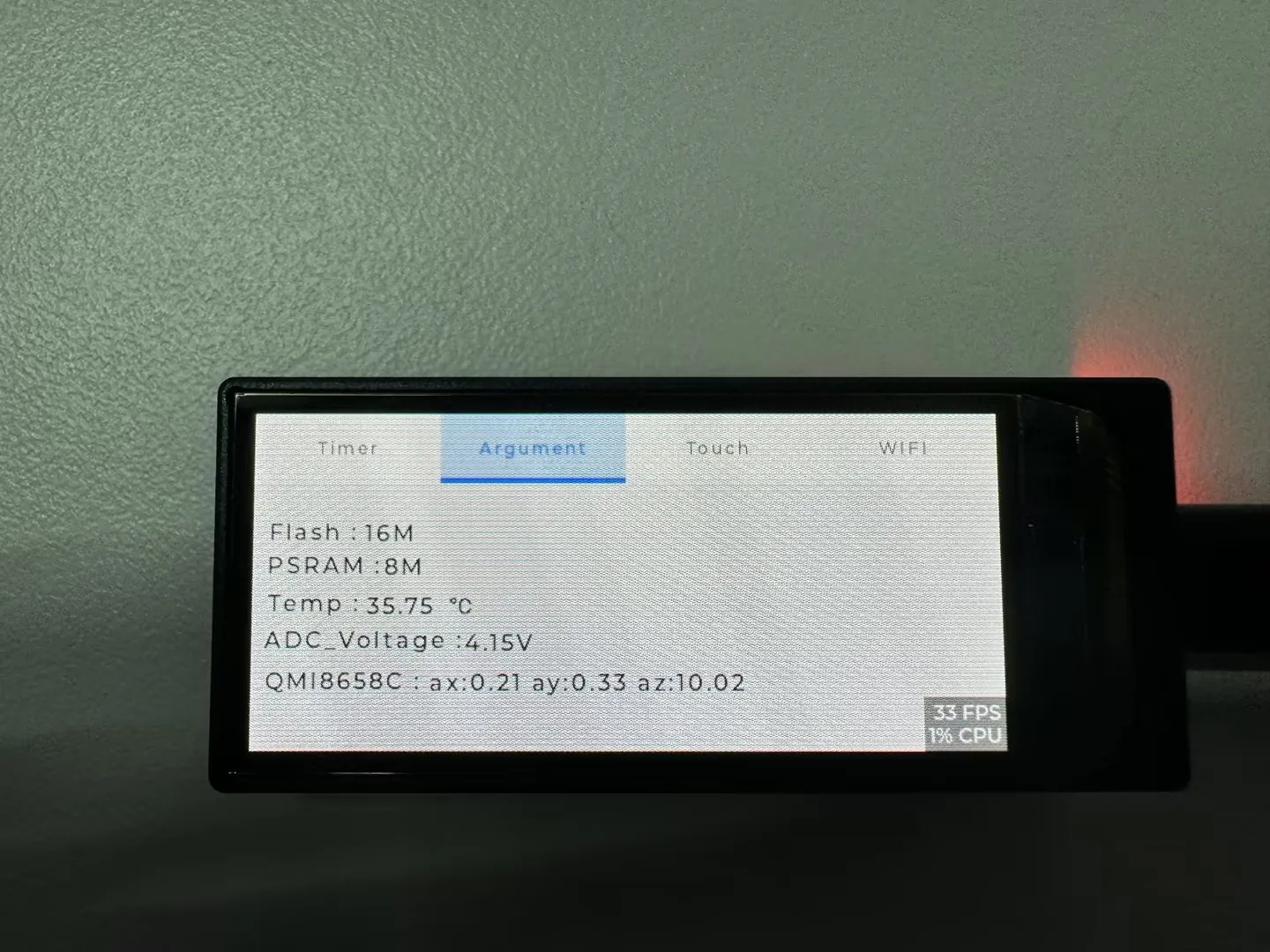

  • Argument interface, as shown:

    tip
    1. Click the BOOT button to switch to the Argument interface.

  • Touch interface, as shown:

    tip
    1. Click the BOOT button again to switch to the Touch interface.

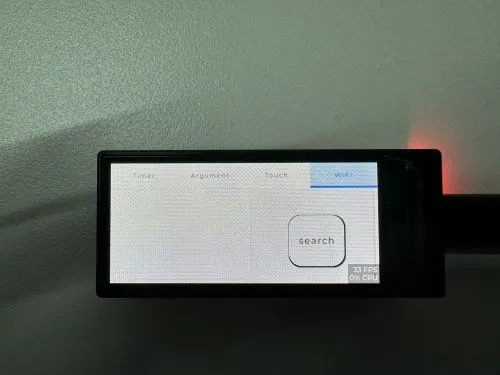

  • WIFI interface, as shown:

    tip
    1. Click the BOOT button again to switch to the WIFI interface.
