Working with ESP-IDF

This chapter includes the following sections:

ESP-IDF Getting Started and Quick Configuration
Setting Up Development Environment (Windows)
Common Example Descriptions (Brief Overview and Code Explanation)

ESP-IDF Getting Started Tutorial

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment

note

The following instructions focus on Windows 10/11. For macOS / Linux, please refer to the official Espressif guide: https://docs.espressif.com/projects/esp-idf/en/latest/esp32/get-started/index.html

Install Visual Studio Code: https://code.visualstudio.com/
Install the ESP-IDF extension in VS Code (open Extensions view with Ctrl+Shift+X, search for ESP-IDF and install).

After installation, an Espressif icon will appear in the sidebar. Open it and select Configure ESP-IDF Extension to enter the configuration wizard.
The Express configuration is recommended. Choose as needed:
- Download server: Espressif (domestic mirror) or GitHub
- ESP-IDF version: Select based on project requirements; if no specific requirement, choose the latest stable version. Note: Some examples have been tested on older/specific IDF versions.
- Install path: Use a path without spaces and containing only ASCII characters (e.g., C:\Users<Username>\esp) to avoid path-related issues.
Click Install to begin the automatic download and installation of ESP-IDF, the toolchain, and the creation of a Python virtual environment. Wait for the installation completion prompt.

warning

If installation fails or a reinstall is needed, you can try deleting the C:\Users\%Username%\esp and C:\Users\%Username%\.espressif folders and then retry.

Demo

The ESP-IDF demo package is located in examples/esp-idf.

Below is the purpose, key points, and operation effect for each example (for quick start).

Demo	Basic Program Description	Dependency Library
01_i2c	Uses I2C to control an I/O expansion chip, periodically switching the LCD backlight on and off to create a flashing effect	-
02_rtc	Uses the onboard RTC chip to implement real-time clock display and alarm reminder functionality	-
03_lcd	Initializes the LCD and displays various graphics, text, and images	-
04_isolation_io	Verifies the isolation I/O functionality via the display	-
05_sd	Displays the TF card mounting status on the screen	-
06_touch	Demonstrates how to use 5-point touch	-
07_display_bmp	Shows how to read and display BMP images from a TF card.	-
08_wifi_scan	Scans nearby Wi-Fi networks and displays the SSID list on the screen	-
09_wifi_sta	Connects to an AP in STA mode and displays IP information	-

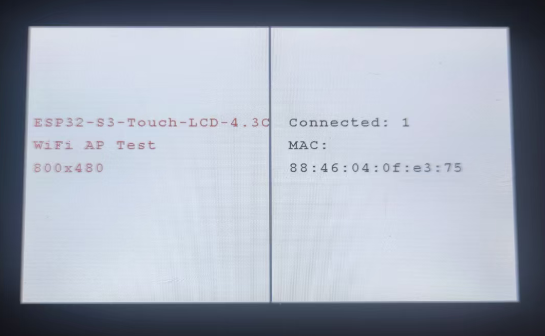

10_wifi_ap	Uses the screen to display hotspot status, showing the MAC addresses of connected devices	-
11_speaker_microphone	Recording and playback example (codec, I2S)	-

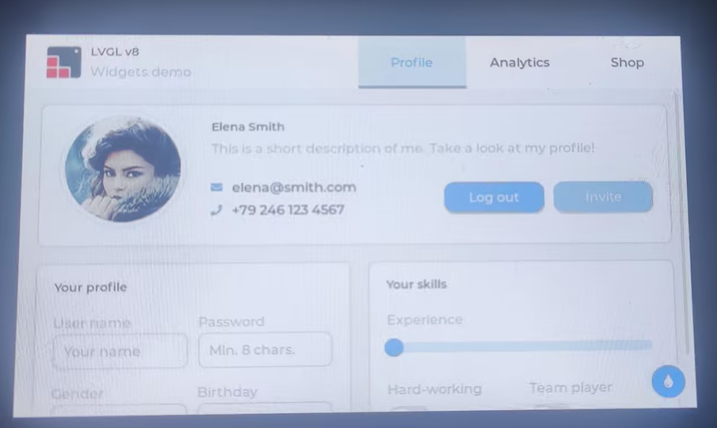

12_lvgl_transplant	Ports LVGL and runs the official demo	LVGL

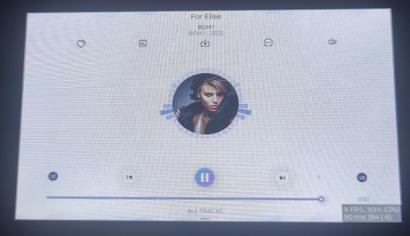

13_lvgl_codec	Example combining LVGL and audio	LVGL

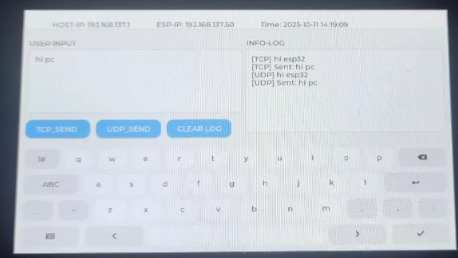

14_tcp_udp_ntp	Demonstrates TCP/UDP communication and NTP time synchronization	LVGL

01_i2c

This example demonstrates how to periodically control the LCD backlight's on/off state via I2C, creating a flashing effect, using an I/O expansion chip.

Hardware Connection

Connect the board to the computer using a USB cable

Code

Details

/*
 * Please refer to the source code in the example package for the complete code
 * The full code can be found in the example package
 */

#include "driver/i2c.h"
// ... other includes

void app_main()
{
    // Initialize the I2C interface and configure it for IO EXTENSION communication
    DEV_I2C_Init();

    /*
     * After initializing I2C, a device name and slave address need to be created.
     * This step corresponds to the specific slave device you want to communicate with.
     * Note: The function `DEV_I2C_Set_Slave_Addr` is not explicitly called here,
     * because `IO_EXTENSION_Init` already sets the slave address internally.
     * Example:
     * DEV_I2C_Set_Slave_Addr(i2c_master_dev_handle_t *dev_handle, uint8_t Addr)
     */
    IO_EXTENSION_Init();
    vTaskDelay(10 / portTICK_PERIOD_MS);
    // Enter an infinite loop to control the backlight
    while (1)
    {
        // Set the IO_EXTENSION_IO_2 pin to high (turn on the backlight)
        IO_EXTENSION_Output(IO_EXTENSION_IO_2, 1);  // Turn on backlight
        vTaskDelay(500 / portTICK_PERIOD_MS);  // Wait for 500 milliseconds

        // Set the IO_EXTENSION_IO_2 pin to low (turn off the backlight)
        IO_EXTENSION_Output(IO_EXTENSION_IO_2, 0);  // Turn off backlight
        vTaskDelay(500 / portTICK_PERIOD_MS);  // Wait for 500 milliseconds
    }
}

Code Analysis

DEV_I2C_Init(): Initializes the I2C driver. Defines the SDA/SCL pins and frequency via the i2c_config_t structure, and calls i2c_driver_install to register the driver.
IO_EXTENSION_Init(): Initializes the I/O expansion chip, internally configuring the chip's default register states and pin modes via the I2C interface.
IO_EXTENSION_Output(): Sends control commands to the expansion chip using i2c_master_write_to_device, modifying the level state of specific pins using bitwise operations.

Operation Result

The backlight toggles on and off at a fixed interval; the serial port can output the current backlight state or I2C read/write results.

02_rtc

This example demonstrates time reading/writing and alarm functionality of the onboard PCF85063.

Hardware Connection

Connect the board to the computer using a USB cable

Code

Details

void app_main()
{
    datetime_t Now_time;

    // Initialize the I2C interface
    DEV_I2C_Init();

    // Initialize external IO extension chip
    IO_EXTENSION_Init();

    // Initialize PCF85063A RTC
    PCF85063A_Init();

    // Set current time
    PCF85063A_Set_All(Set_Time);

    // Set alarm time
    PCF85063A_Set_Alarm(Set_Alarm_Time);

    // Enable alarm interrupt
    PCF85063A_Enable_Alarm();

    while (1)
    {
        // Read current time from RTC
        PCF85063A_Read_now(&Now_time);

        // Format current time as a string
        datetime_to_str(datetime_str, Now_time);
        ESP_LOGI(TAG, "Now_time is %s", datetime_str);

        // Poll external IO pin for alarm (low level = alarm triggered)
        if (IO_EXTENSION_RTC_INT_READ() == 0)
        {
            // Re-enable alarm if repeated alarms are required
            PCF85063A_Enable_Alarm();
            ESP_LOGI(TAG, "The alarm clock goes off.");
        }

        // Wait for 1 second
        vTaskDelay(1000 / portTICK_PERIOD_MS);
    }
}

Code Analysis

PCF85063A_Init(): Initializes the PCF85063A real-time clock, configures the I2C address, enables the oscillator, and sets it to 24-hour mode.
PCF85063A_Set_All(): Sets all PCF85063A register values, including time, alarm time, control registers, etc.
PCF85063A_Read_now(): Reads the current time from the PCF85063A, converting BCD-encoded values to decimal format.

Operation Result

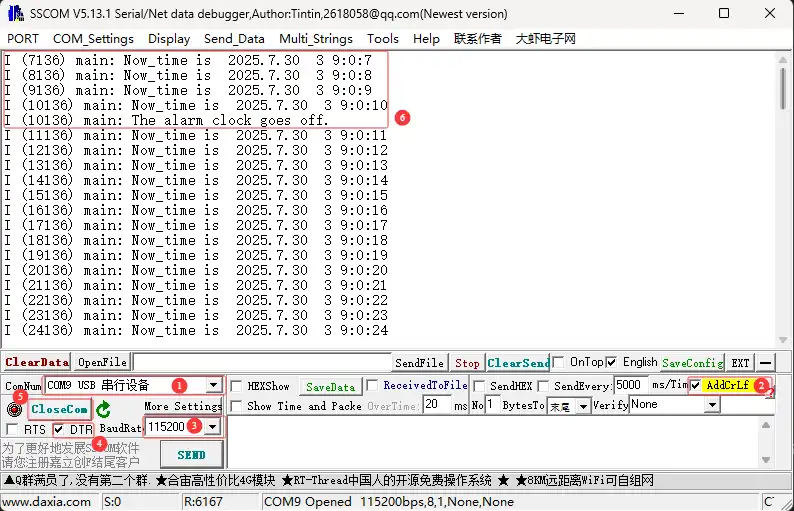

The serial port or screen displays the current time; outputs a prompt message when the alarm triggers.

03_lcd

This example demonstrates LCD initialization and basic drawing processes, verifying the RGB LCD display link and frame buffer refresh.

Hardware Connection

Connect the board to the computer using a USB cable

Code

Details

void app_main()
{
    // Initialize I2C communication and CH422G hardware interface
    DEV_I2C_Init();
    IO_EXTENSION_Init();

    // Initialize the Waveshare ESP32-S3 RGB LCD
    waveshare_esp32_s3_rgb_lcd_init();

    // Turn on the LCD backlight
    wavesahre_rgb_lcd_bl_on();
    // Uncomment the following line to turn off the backlight if needed
    // wavesahre_rgb_lcd_bl_off();

    // Allocate memory for the screen's frame buffer
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2; // Each pixel takes 2 bytes in RGB565
    UBYTE *BlackImage;
    if ((BlackImage = (UBYTE *)malloc(Imagesize)) == NULL) // Allocate memory
    {
        printf("Failed to apply for black memory...\r\n");
        exit(0); // Exit the program if memory allocation fails
    }

    // Create a new image canvas and set its background color to white
    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);

    // Set the canvas scale
    Paint_SetScale(65);
    Paint_SetRotate(ROTATE);
    // Clear the canvas and fill it with a white background
    Paint_Clear(WHITE);
}

Code Analysis

waveshare_esp32_s3_rgb_lcd_init(): Calls esp_lcd_new_rgb_panel to create a panel handle, configuring RGB interface timing parameters to match the 4.3inch screen's resolution.
malloc(): Allocates the Framebuffer in external PSRAM using the MALLOC_CAP_SPIRAM flag, addressing the high memory footprint issue for high-resolution displays on SRAM.
Paint_NewImage(): Binds the allocated display coordinates with the drawing context.

Operation Result

The screen sequentially displays a color gradient, basic shapes, and text content.

04_isolation_io

This example verifies the isolation I/O functionality.

Hardware Connection

Connect the board to the computer using a USB cable;

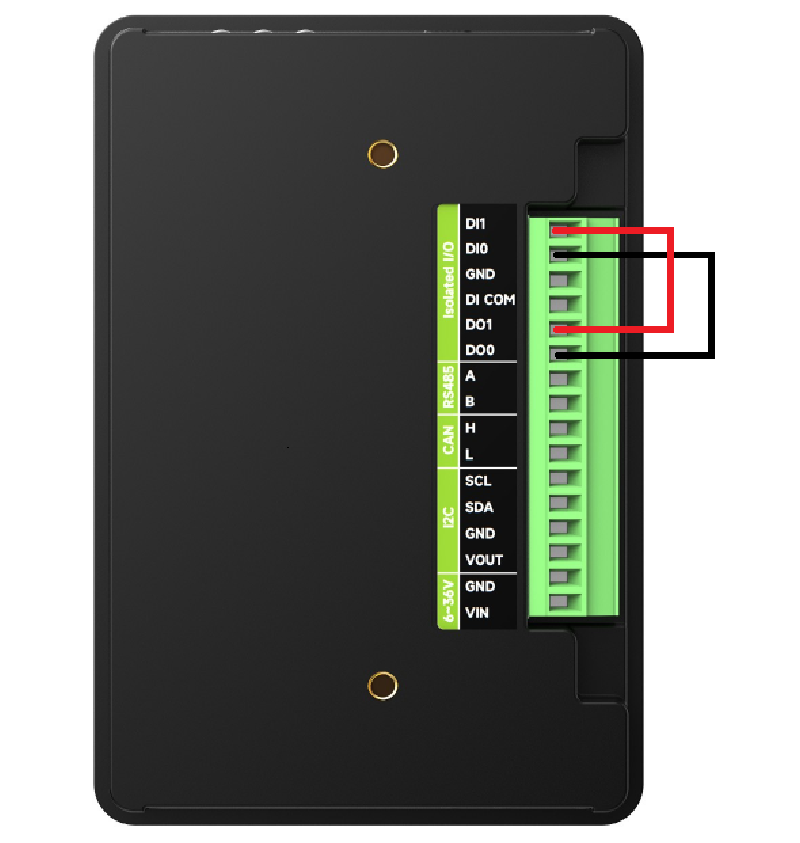

Connect the DO/DI pins as described in the example to test the isolation function.

Code

Details

void app_main()
{
    // Initialize I2C communication and CH422G hardware interface
    DEV_I2C_Init();
    IO_EXTENSION_Init();

    IO_EXTENSION_IO_Mode(DI0 | DI5); // Set EXIO0 and EXIO5 to input mode

    // Initialize the Waveshare ESP32-S3 RGB LCD
    waveshare_esp32_s3_rgb_lcd_init();

    // Turn on the LCD backlight
    wavesahre_rgb_lcd_bl_on();
    // Uncomment the following line to turn off the backlight if needed
    // wavesahre_rgb_lcd_bl_off();

    // Allocate memory for the screen's frame buffer
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2; // Each pixel takes 2 bytes in RGB565
    UBYTE *BlackImage;
    if ((BlackImage = (UBYTE *)malloc(Imagesize)) == NULL) // Allocate memory
    {
        printf("Failed to apply for black memory...\r\n");
        exit(0); // Exit the program if memory allocation fails
    }

    // Create a new image canvas and set its background color to white
    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);

    // Set the canvas scale
    Paint_SetScale(65);
    Paint_SetRotate(ROTATE);
    // Clear the canvas and fill it with a white background
    Paint_Clear(WHITE);
}

Code Analysis

IO_EXTENSION_IO_Mode(): Configures the working mode of the expansion chip's pins, e.g., setting specific pins to input mode to read isolated DI signals.
IO_EXTENSION_Output(): Controls the output pin levels of the expansion chip, e.g., driving the isolated DO port to output high/low levels to control an external relay or load.
IO_EXTENSION_Read(): Reads the state of the expansion chip's input pins in real-time, used to obtain feedback from external sensors or digital input connected to the isolated DI port.

Operation Result

After successful flashing, the screen will display red or green depending on the wiring on the back.
When wired correctly, the screen displays green.
When wired incorrectly, the screen displays red.

05_sd

This example demonstrates TF card mounting, filesystem access, and displays the mounting status and basic information on the screen.

Hardware Connection

Connect the board to the computer using a USB cable;
Insert a TF/SD card.

Code

Details

void app_main()
{
    // Initialize I2C communication and configure the IO EXTENSION GPIO expander
    DEV_I2C_Init();                // Initialize the I2C bus
    IO_EXTENSION_Init();                     // Initialize IO EXTENSION chip

    IO_EXTENSION_Output(IO_EXTENSION_IO_4, 1);  // Set CS (chip select) pin high

    // Initialize the Waveshare ESP32-S3 RGB LCD
    waveshare_esp32_s3_rgb_lcd_init();
    wavesahre_rgb_lcd_bl_on();         // Turn on the LCD backlight
    // wavesahre_rgb_lcd_bl_off();     // Uncomment to turn off the backlight if needed

    // Allocate memory for the LCD's frame buffer
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2; // Each pixel uses 2 bytes in RGB565 format
    UBYTE *BlackImage;
    if ((BlackImage = (UBYTE *)malloc(Imagesize)) == NULL) // Allocate memory for the image
    {
        printf("Failed to allocate memory for frame buffer...\r\n");
        exit(0); // Exit if memory allocation fails
    }

    // Create a new image canvas and set its background color to white
    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);
    Paint_SetScale(65);                // Set the canvas scale
    Paint_Clear(WHITE);                // Clear the canvas with a black background

    // Draw static text on the canvas
    Paint_DrawString_EN(150, 130, "TF TEST", &Font48, BLACK, WHITE);
    Paint_DrawString_EN(150, 180, "Waveshare ESP32 S3", &Font24, BLACK, WHITE);
    Paint_DrawString_EN(150, 210, "https://www.waveshare.com", &Font24, BLACK, WHITE);

    char Total[100], Available[100]; // Buffers for formatted text
}

Code Analysis

esp_vfs_fat_sdmmc_mount(): Mounts the TF card to the virtual file system (VFS), allowing access to the FATFS partition using standard POSIX interfaces (e.g., fopen).
sd_mmc_init(): Initializes the SDMMC host controller, configures 1-bit or 4-bit bus mode, and sets the operating frequency according to the hardware design.
esp_vfs_fat_sdcard_unmount(): Unmounts the TF card from the virtual file system, freeing resources and allowing remounting.

Operation Result

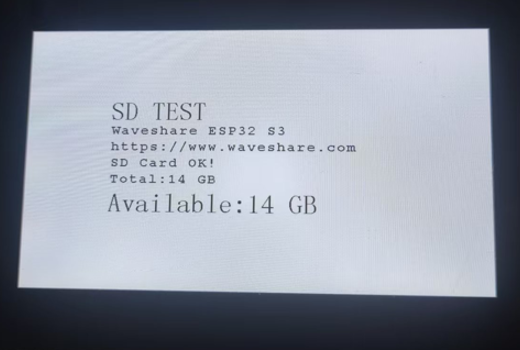

The screen indicates successful/failed mounting and displays card capacity, file list, or test file read/write results.

06_touch

This example demonstrates the touch controller driver and 5 5-point touch reading, verifying the mapping between touch coordinates and screen coordinates.

Hardware Connection

Connect the board to the computer using a USB cable;
Touch the screen with your finger.

Code

Details

int app_main()
{
    touch_gt911_point_t point_data;  // Structure to store touch point data

    // Initialize the GT911 touch screen controller
    touch_gt911_init();

    // Initialize the Waveshare ESP32-S3 RGB LCD hardware
    waveshare_esp32_s3_rgb_lcd_init();

    // Turn on the LCD backlight
    wavesahre_rgb_lcd_bl_on();

    // Frame buffer pointers for double buffering
    void *buf1 = NULL;
    void *buf2 = NULL;

    // Retrieve pointers to the frame buffers
    waveshare_get_frame_buffer(&buf1, &buf2);
    if (buf1 == NULL || buf2 == NULL) {
        printf("Error: buf1 and buf2 are NULL!\n");
        return;
    }

    // Initialize the graphics canvas with buf2
    Paint_NewImage(buf2, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);

    // Set the scale for the graphical canvas
    Paint_SetScale(65);

    // Clear the canvas and fill it with a white background
    Paint_Clear(WHITE);

    // Copy buf2 content to buf1 to sync buffers
    memcpy(buf1, buf2, EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2);

    // Display the initial blank screen on the LCD
    wavesahre_rgb_lcd_display(buf1);

    // Arrays to store previous touch point positions and their active states
    static uint16_t prev_x[ESP_LCD_TOUCH_MAX_POINTS];
    static uint16_t prev_y[ESP_LCD_TOUCH_MAX_POINTS];
    static bool active[ESP_LCD_TOUCH_MAX_POINTS];  // Track if a touch point is active
    static uint16_t color[ESP_LCD_TOUCH_MAX_POINTS] = {
        0x7DDF, 0xFBE4, 0x7FE0, 0xEC1D, 0xFEE0
    }; // Predefined colors for touch points
}

Code Analysis

touch_gt911_init(): Initializes the touch controller, configures the I2C slave address, and triggers a chip self-test via the reset pin.
touch_gt911_read_point(): Reads the status register to obtain the current number of touch points and sequentially extracts the X/Y coordinate data for up to 5 touch points.
Paint_DrawCircle(): Draws a circle with a specified radius and color at the given coordinates.

Operation Result

After successful flashing, 5-point touch reading is demonstrated, and circles are drawn in real-time based on the touch point coordinates.

07_display_bmp

his example reads BMP files from a TF card and displays them on the screen, verifying the file reading, decoding, and display refresh pipeline.

Hardware Connection

Connect the board to the computer using a USB cable;
Insert a TF/SD card containing BMP files.

Code

Details

void app_main()
{
    touch_gt911_point_t point_data;  // Structure to store touch point data

    // Initialize the GT911 touch screen controller
    touch_gt911_init();

    // Initialize the Waveshare ESP32-S3 RGB LCD hardware
    waveshare_esp32_s3_rgb_lcd_init();

    // Turn on the LCD backlight
    wavesahre_rgb_lcd_bl_on();

    // EXAMPLE_PIN_NUM_TOUCH_INT
    // Allocate memory for the LCD's frame buffer
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2; // Each pixel uses 2 bytes in RGB565 format
    UBYTE *BlackImage;
    if ((BlackImage = (UBYTE *)malloc(Imagesize)) == NULL) // Check if memory allocation is successful
    {
        printf("Failed to allocate memory for frame buffer...\r\n");
        exit(0); // Exit if memory allocation fails
    }

    // Initialize the graphics canvas with the allocated buffer
    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);

    // Set the scale for the graphical canvas
    Paint_SetScale(65);

    // Clear the canvas and fill it with a white background
    Paint_Clear(WHITE);
}

Code Analysis

GUI_ReadBmp(): Reads a BMP file from the TF card, parsing the file header to obtain image dimensions and pixel data offset.
Paint_Clear(): Clears the canvas, filling it with a specified color.
Paint_DrawLine(): Draws a line between specified coordinates, allowing configuration of color, line width, and style.

Operation Result

BMP images from the TF card are displayed on the screen; the serial port outputs image information and loading time.

08_wifi_scan

This example scans for nearby Wi‑Fi hotspots and displays information such as SSID, RSSI, and encryption type on the screen.

Hardware Connection

Connect the board to the computer using a USB cable;
Ensure there are Wi‑Fi networks nearby that can be scanned.

Code

Details

int app_main()
{
    // Initialize Wi-Fi settings
    wifi_init();
    uint8_t chinese_num = 0; // Counter for Wi-Fi networks with Chinese SSIDs

    // Display static information on the LCD screen
    Paint_DrawString_EN(10, 160, "ESP32-S3-Touch-LCD-4.3C", &Font24, RED, WHITE);  // Display title
    Paint_DrawString_EN(10, 200, "WiFi SCAN Test", &Font24, RED, WHITE);          // Display Wi-Fi scan message
    Paint_DrawString_EN(10, 240, "800x480", &Font24, RED, WHITE);                // Display screen resolution
    Paint_DrawLine(400, 0, 400, 480, BLUE, DOT_PIXEL_2X2, LINE_STYLE_SOLID);  // Draw a vertical line to separate sections
    Paint_DrawString_EN(440, 0, "Scanning now...", &Font24, BLACK, WHITE); // Show scanning status message
    wavesahre_rgb_lcd_display(BlackImage);  // Refresh the display with the updated image

    // Clear the top section of the screen to display scanning results
    Paint_ClearWindows(440, 0, 800, 25, WHITE);

    // Start Wi-Fi scanning to find available networks
    wifi_scan();

    // Loop through the Wi-Fi APs found and display them on the screen
    for (int i = 0; i < DEFAULT_SCAN_LIST_SIZE; i++) {
        // Skip SSID with Chinese characters
        if (contains_chinese((const char *)ap_info[i].ssid)){
            chinese_num++;  // Increment the count for networks with Chinese SSIDs
            printf("Skipping SSID with Chinese characters: %s \r\n", ap_info[i].ssid);
        }
        else{
            // Display the SSID (Wi-Fi network name) on the screen
            Paint_DrawString_EN(440, (i - chinese_num) * 24, (const char *)ap_info[i].ssid, &Font24, BLACK, WHITE);
        }
    }

    // Update the screen with the new image (BlackImage is the framebuffer being drawn to)
    wavesahre_rgb_lcd_display(BlackImage);  // Refresh the display to show the updated list of networks
}

Code Analysis

wifi_init(): Initializes the Wi-Fi driver, allocates resources, and starts the low-power radio management task.
wifi_scan(): Initiates the scan process for surrounding access points, supporting full-channel polling or specific channel scanning, and configures the maximum number of results to return.
contains_chinese(): Checks if a string contains Chinese characters, returning true or false.

Operation Result

The screen lists information about nearby hotspots; the serial port outputs the scan count and brief data for each AP.

09_wifi_sta

This example connects to a specified AP in STA mode and displays the connection status and IP information on the screen.

Hardware Connection

Connect the board to the computer using a USB cable;
Have a connectable Wi‑Fi network ready (SSID/password).

Code

Details

#define USER_SSID "SSID"  // Wi-Fi SSID (network name)
#define USER_PASS "PASSWORD"  // Wi-Fi password

void app_main()
{
    // Initialize the Non-Volatile Storage (NVS) for Wi-Fi settings
    esp_err_t err = nvs_flash_init();
    if (err == ESP_ERR_NVS_NO_FREE_PAGES || err == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        // If NVS has no free pages or a new version is found, erase and reinitialize NVS
        ESP_ERROR_CHECK(nvs_flash_erase());
        err = nvs_flash_init();
    }

    // Initialize I2C communication and IO EXTENSION hardware interface for GPIO control
    DEV_I2C_Init();  // Initialize I2C
    IO_EXTENSION_Init();   // Initialize GPIO control using the IO EXTENSION chip

    // Initialize the Waveshare ESP32-S3 RGB LCD display
    waveshare_esp32_s3_rgb_lcd_init();

    // Turn on the LCD backlight
    wavesahre_rgb_lcd_bl_on();
    // Uncomment the next line to turn off the backlight if needed
    // wavesahre_rgb_lcd_bl_off();

    // Allocate memory for the screen's framebuffer (image buffer)
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2;  // Each pixel takes 2 bytes in RGB565 format
    UBYTE *BlackImage;
    if ((BlackImage = (UBYTE *)malloc(Imagesize)) == NULL) {  // Allocate memory for the framebuffer
        printf("Failed to apply for black memory...\r\n");
        exit(0); // Exit the program if memory allocation fails
    }

    // Create a new image canvas and set its background color to white
    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);

    // Set the canvas scale and rotation for the display
    Paint_SetScale(65);  // Set the scale for the image
    Paint_SetRotate(ROTATE);  // Set the rotation (0 degrees)

    // Clear the canvas and fill it with a white background
    Paint_Clear(WHITE);

    // Initialize Wi-Fi settings (connect to the specified Wi-Fi network)
    wifi_init();

    // Display some information on the LCD screen
    Paint_DrawString_EN(10, 160, "ESP32-S3-Touch-LCD-4.3C", &Font24, RED, WHITE);  // Display title
    Paint_DrawString_EN(10, 200, "WiFi STA Test", &Font24, RED, WHITE);          // Display Wi-Fi test message
    Paint_DrawString_EN(10, 240, "800x480", &Font24, RED, WHITE);                // Display screen resolution
    Paint_DrawString_EN(440, 160, "wifi connecting......", &Font24, BLACK, WHITE); // Display Wi-Fi connection status
    Paint_DrawLine(400, 0, 400, 480, BLUE, DOT_PIXEL_2X2, LINE_STYLE_SOLID);  // Draw a vertical line on the display

    wavesahre_rgb_lcd_display(BlackImage);  // Refresh the display with the updated image (BlackImage is the framebuffer)

    // Initialize Wi-Fi in STA mode and attempt to connect to the specified SSID and password
    wifi_sta_init((uint8_t *)USER_SSID, (uint8_t *)USER_PASS, WIFI_AUTH_WPA2_PSK);

    // Update the screen with the new image (BlackImage is the framebuffer being drawn to)
    wavesahre_rgb_lcd_display(BlackImage);  // Refresh the display again to show the updated image
}

Code Analysis

nvs_flash_init(): Initializes Non-Volatile Storage (NVS), used for persistently saving Wi-Fi connection configurations (such as SSID and password).
wifi_sta_init(): Configures Wi-Fi to Station (STA) mode, sets authentication/encryption methods (e.g., WPA2_PSK), and initiates a connection request.
wifi_init(): Initializes the Wi-Fi driver, allocates resources, and starts the low-power radio management task.

Operation Result

The screen displays a successful connection and the assigned IP address; prompts reconnection status upon disconnection.

10_wifi_ap

This example enables a SoftAP hotspot and displays information about connected devices (e.g., MAC address, connection count) on the screen.

Hardware Connection

Connect the board to the computer using a USB cable;
Connect a phone/computer to the development board's hotspot.

Code

Details

// Initialize SoftAP (Wi-Fi Access Point) with SSID, password, and channel
int app_main(void)
{
    wifi_ap_init((uint8_t *)USER_SSID, (uint8_t *)USER_PASS, 1);

    static uint8_t connection_num = 0;  // Variable to track the number of connected stations
    while (1)
    {
        esp_err_t ret = esp_wifi_ap_get_sta_list(&sta_list);  // Get the list of connected stations (devices)
        if (ret == ESP_OK)
        {
            // If the number of connected stations has changed, update the UI
            if (connection_num != sta_list.num)
            {
                char station_num[32];
                char station_mac[32];  // Buffer to hold formatted MAC address string


                Paint_ClearWindows(430, 160, 800, 480, WHITE);  // Clear the section of the screen displaying the connection info

                snprintf(station_num, sizeof(station_num), "Connected: %d", sta_list.num); // Format the number of connected stations
                Paint_DrawString_EN(430, 160, station_num, &Font24, BLACK, WHITE);  // Display the number of connected devices
                if (sta_list.num == 0)
                {
                    ESP_LOGE(TAG_AP, "No device connected.");  // Log error if no devices are connected
                }
                else
                {
                    for (int i = 0; i < sta_list.num; i++)
                    {
                        wifi_sta_info_t sta_info = sta_list.sta[i];  // Get station info (MAC address, RSSI, etc.)

                        // Format the MAC address and display it in the list
                        snprintf(station_mac, sizeof(station_mac), MACSTR, MAC2STR(sta_info.mac));
                        Paint_DrawString_EN(430, 200 , "MAC:", &Font24, BLACK, WHITE);  // Label for MAC address
                        Paint_DrawString_EN(430, 240 + (i * 40), station_mac, &Font24, BLACK, WHITE);  // Display MAC address

                        // Log information about the connected stations
                        ESP_LOGI(TAG_AP, "STA %d: MAC Address: " MACSTR, i, MAC2STR(sta_info.mac));  // Log MAC address
                        ESP_LOGI(TAG_AP, "STA %d: RSSI: %d", i, sta_info.rssi);  // Log signal strength (RSSI)
                    }
                }
                // Update the screen with the new image (BlackImage is the framebuffer being drawn to)
                wavesahre_rgb_lcd_display(BlackImage);  // Refresh the display again to show the updated image
                connection_num = sta_list.num;  // Update the connection number variable
            }
        }
        else
        {
            ESP_LOGE(TAG_AP, "Failed to get STA list");  // Log error if failed to get list of connected stations
        }
        // Delay for 10ms before the next loop iteration
        vTaskDelay(100);  // Short delay to avoid overloading the CPU
    }
}

Code Analysis

wifi_ap_init(): Initializes the Soft Access Point (SoftAP) mode, sets the SSID, password, and operating channel, and configures the maximum number of connected clients.
esp_wifi_ap_get_sta_list(): Periodically queries the list of connected stations to obtain the current number of connected devices and their hardware MAC addresses.
MACSTR/MAC2STR(): Uses formatting macros to convert a 6-byte raw MAC address into a human-readable string format for display on the UI.

Operation Result

The screen displays hotspot status and information of connected devices; the serial port simultaneously outputs connection/disconnection logs..

11_speaker_microphone

This example demonstrates the audio capture and playback pipeline, including microphone recording and speaker playback (Codec + I2S).

Hardware Connection

Connect the board to the computer using a USB cable;
Record audio via the onboard microphone and play it back through the speaker.

Code

Details

void app_main()
{
    touch_gt911_point_t point_data;
    DEV_I2C_Init();
    IO_EXTENSION_Init();
    touch_gt911_init(DEV_I2C_Get_Bus_Device());
    waveshare_esp32_s3_rgb_lcd_init();
    wavesahre_rgb_lcd_bl_on();

    // Allocate LCD frame buffer
    UDOUBLE Imagesize = EXAMPLE_LCD_H_RES * EXAMPLE_LCD_V_RES * 2;
    BlackImage = (UBYTE *)malloc(Imagesize);
    if (!BlackImage)
    {
        printf("Failed to allocate memory for frame buffer...\r\n");
        exit(0);
    }

    Paint_NewImage(BlackImage, EXAMPLE_LCD_H_RES, EXAMPLE_LCD_V_RES, 0, WHITE);
    Paint_SetScale(65);
    Paint_Clear(WHITE);

    // Draw initial red record button
    Paint_DrawCircle(405, 450, 15, RED, DOT_PIXEL_2X2, DRAW_FILL_FULL);
    Paint_DrawString_EN(100, 150, "Click to start recording", &Font48, BLACK, WHITE);
    wavesahre_rgb_lcd_display(BlackImage);

    // Initialize speaker codec
    codec_init();
    speaker_codec_volume_set(100, NULL);
    microphone_codec_gain_set(30, NULL);

    // Allocate memory for recording buffer
    record_buffer = heap_caps_malloc(BUFFER_SIZE * sizeof(int16_t), MALLOC_CAP_SPIRAM | MALLOC_CAP_8BIT);
    if (!record_buffer)
    {
        ESP_LOGE(TAG, "Failed to allocate buffer");
        vTaskDelete(NULL);
        return;
    }

    // Touch handling loop
    static uint16_t prev_x;
    static uint16_t prev_y;
    bool is_playing = false;

    while (1)
    {
        point_data = touch_gt911_read_point(1);
        if (point_data.cnt == 1)
        {
            if (prev_x == point_data.x[0] && prev_y == point_data.y[0])
            {
                continue;
            }
            else if (point_data.x[0] > 390 && point_data.x[0] < 420 &&
                     point_data.y[0] > 420 && point_data.y[0] < 480)
            {
                Paint_Clear(WHITE);
                is_playing = !is_playing;
                play_or_pause(is_playing);

                prev_x = point_data.x[0];
                prev_y = point_data.y[0];
            }
        }
        vTaskDelay(30 / portTICK_PERIOD_MS);
    }
}

Code Analysis

codec_init(): Initializes the audio codec chip, configuring the sampling frequency, bit width, and input/output routing (e.g., enabling microphone gain and speaker amplifier).
heap_caps_malloc(): Allocates a large-capacity recording buffer in PSRAM, supporting long-duration audio capture without exhausting internal SRAM.

Operation Result

Playback audio can be heard; the serial port outputs recording/playback status and audio parameters.

12_lvgl_transplant

This example completes the basic LVGL port, verifies the display driver, touch input, and LVGL refresh pipeline, and runs the official demo.

Hardware Connection

Connect the board to the computer using a USB cable;
Touchscreen interaction is possible.

Code

Details

void app_main()
{
    static esp_lcd_panel_handle_t panel_handle = NULL; // Declare a handle for the LCD panel
    static esp_lcd_touch_handle_t tp_handle = NULL;

    DEV_I2C_Init(); // Initialize I2C port
    IO_EXTENSION_Init(); // Initialize the IO EXTENSION GPIO chip

    wavesahre_rgb_lcd_bl_off(); // Turn off the LCD backlight

    tp_handle = touch_gt911_init(DEV_I2C_Get_Bus_Device()); // Initialize the GT911 touch screen controller
    panel_handle = waveshare_esp32_s3_rgb_lcd_init(); // Initialize the Waveshare ESP32-S3 RGB LCD hardware
    ESP_ERROR_CHECK(lvgl_port_init(panel_handle, tp_handle)); // Initialize LVGL with the panel and touch handles

    ESP_LOGI(TAG, "Display LVGL demos");

    // Lock the mutex due to the LVGL APIs are not thread-safe
    if (lvgl_port_lock(-1)) {
        // lv_demo_stress();
        // lv_demo_benchmark();
        // lv_demo_music();
        lv_demo_widgets();
        // Release the mutex
        lvgl_port_unlock();
    }
    wavesahre_rgb_lcd_bl_on();         // Turn on the LCD backlight
}

Code Analysis

lvgl_port_init(): Encapsulates the initialization of LVGL core components, including memory pool allocation, timer registration, and abstract binding of display/input devices.
lvgl_port_lock(): Since core LVGL APIs are not thread-safe, this mutex lock ensures atomic operations when updating the UI across tasks.
lv_timer_handler(): The main UI loop handler function, responsible for calculating animations, refreshing dirty pixel regions, and processing user input events.

Operation Result

The screen displays the LVGL demo interface with touch interaction; the serial port outputs LVGL initialization and refresh information.

13_lvgl_codec

This example combines the LVGL UI with audio functionality, demonstrating interactions such as UI control of volume/playback status.

Hardware Connection

Connect the board to the computer using a USB cable;
The speaker and microphone should be functional.

Code

Details

void app_main()
{
    static esp_lcd_panel_handle_t panel_handle = NULL; // Declare a handle for the LCD panel
    static esp_lcd_touch_handle_t tp_handle = NULL;

    DEV_I2C_Init(); // Initialize I2C port
    IO_EXTENSION_Init(); // Initialize the IO EXTENSION GPIO chip

    wavesahre_rgb_lcd_bl_off(); // Turn off the LCD backlight

    tp_handle = touch_gt911_init(DEV_I2C_Get_Bus_Device()); // Initialize the GT911 touch screen controller
    panel_handle = waveshare_esp32_s3_rgb_lcd_init(); // Initialize the Waveshare ESP32-S3 RGB LCD hardware
    ESP_ERROR_CHECK(lvgl_port_init(panel_handle, tp_handle)); // Initialize LVGL with the panel and touch handles

    ESP_LOGI(TAG, "Display LVGL demos");

    // Initialize TF card
    if (sd_mmc_init() == ESP_OK)
    {
        ESP_LOGI(TAG, "TFCard OK!");
        ESP_LOGI(TAG, "Click the arrow to start.");

        list_files(MOUNT_POINT"/music");
        if( mp3_num == 0 )
        {
            ESP_LOGI(TAG, "No MP3 file found in TF card.");
            return;
        }
        else
        {
            ESP_LOGI(TAG, "music start");
        }
    }
    else
    {
        ESP_LOGI(TAG, "TF Card Fail!");
        return;
    }

    // Initialize speaker and audio player
    speaker_codec_init();
    speaker_codec_volume_set(50, NULL);
    speaker_player_register_callback(speaker_callback, NULL);
    speaker_player_init();

    // Lock the mutex due to the LVGL APIs are not thread-safe
    if (lvgl_port_lock(-1)) {
        user_lv_demo_music();
        // Release the mutex
        lvgl_port_unlock();
    }
    wavesahre_rgb_lcd_bl_on();         // Turn on the LCD backlight
}

Code Analysis

sd_mmc_init(): Initializes the SDMMC controller and mounts the FATFS partition for retrieving and loading MP3 music files from the TF card.
speaker_player_init(): Creates a background audio playback task, implementing streaming decoding and playback of audio files via a producer-consumer model.
lv_obj_add_event_cb(): Binds interaction callbacks to UI controls; when the user operates sliders or buttons, the player state is dynamically adjusted through a messaging mechanism.

Operation Result

The screen displays an audio control interface that can be operated; playback status and volume changes take effect in real-time.

14_tcp_udp_ntp

This example demonstrates basic network communication (TCP/UDP) and the NTP time synchronization process, verifying the network stack and time sync functionality.

Hardware Connection

Connect the board to the computer using a USB cable;
Ensure Wi‑Fi is connected first.

Code

Details

/*
 * Refer to the example package for the complete code structure
 * Structure reference for TCP/UDP/NTP
 */

void peripheral_init(void)
{
    // Initialize NVS
    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
      ESP_ERROR_CHECK(nvs_flash_erase());
      ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);
    ESP_ERROR_CHECK(esp_event_loop_create_default());
    // Initialize Hardware
    DEV_I2C_Init();
    IO_EXTENSION_Init();
    // Initialize LCD and Touch
    esp_lcd_panel_handle_t panel_handle = waveshare_esp32_s3_rgb_lcd_init();
    wavesahre_rgb_lcd_bl_on();
    esp_lcd_touch_handle_t tp_handle = touch_gt911_init(DEV_I2C_Get_Bus_Device());
    // Initialize LVGL
    ESP_ERROR_CHECK(lvgl_port_init(panel_handle, tp_handle));
    // Initialize UI
    ui_init();
    ui_log("System Initialized. Waiting for WiFi...");
    // Initialize WiFi
    wifi_init_sta();
    // Wait for WiFi connection
    xEventGroupWaitBits(get_wifi_event_group(), WIFI_CONNECTED_BIT, pdFALSE, pdFALSE, portMAX_DELAY);
    // Initialize NTP
    initialize_sntp();
}

Code Analysis

peripheral_init(): Serves as the main entry point for initializing system peripherals. It sequentially completes the initialization of NVS, the event loop, I2C expansion, LCD/touch, LVGL UI, Wi‑Fi, and NTP, laying the groundwork for subsequent network communication and time synchronization.
wifi_init_sta(): Configures Wi‑Fi in STA mode and initiates a connection, providing a stable network channel for TCP/UDP communication and NTP time synchronization.
initialize_sntp(): Starts the SNTP client after confirming Wi‑Fi is connected, synchronizing the system time from an upstream NTP server to provide a correct base time for time-related interfaces like localtime.

Operation Result

The serial port outputs connection information; basic data interaction is possible using a network debug assistant set to the corresponding IP address and port number; the screen displays network status and the current time.

ESP-IDF Getting Started Tutorial​

Setting Up Development Environment​

Demo​

01_i2c​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

02_rtc​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

03_lcd​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

04_isolation_io​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

05_sd​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

06_touch​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

07_display_bmp​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

08_wifi_scan​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

09_wifi_sta​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

10_wifi_ap​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

11_speaker_microphone​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

12_lvgl_transplant​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

13_lvgl_codec​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

14_tcp_udp_ntp​

Hardware Connection​

Code​

Code Analysis​

Operation Result​

ESP-IDF Getting Started Tutorial

Setting Up Development Environment

Demo

01_i2c

Hardware Connection

Code

Code Analysis

Operation Result

02_rtc

Hardware Connection

Code

Code Analysis

Operation Result

03_lcd

Hardware Connection

Code

Code Analysis

Operation Result

04_isolation_io

Hardware Connection

Code

Code Analysis

Operation Result

05_sd

Hardware Connection

Code

Code Analysis

Operation Result

06_touch

Hardware Connection

Code

Code Analysis

Operation Result

07_display_bmp

Hardware Connection

Code

Code Analysis

Operation Result

08_wifi_scan

Hardware Connection

Code

Code Analysis

Operation Result

09_wifi_sta

Hardware Connection

Code

Code Analysis

Operation Result

10_wifi_ap

Hardware Connection

Code

Code Analysis

Operation Result

11_speaker_microphone

Hardware Connection

Code

Code Analysis

Operation Result

12_lvgl_transplant

Hardware Connection

Code

Code Analysis

Operation Result

13_lvgl_codec

Hardware Connection

Code

Code Analysis

Operation Result

14_tcp_udp_ntp

Hardware Connection

Code

Code Analysis

Operation Result
